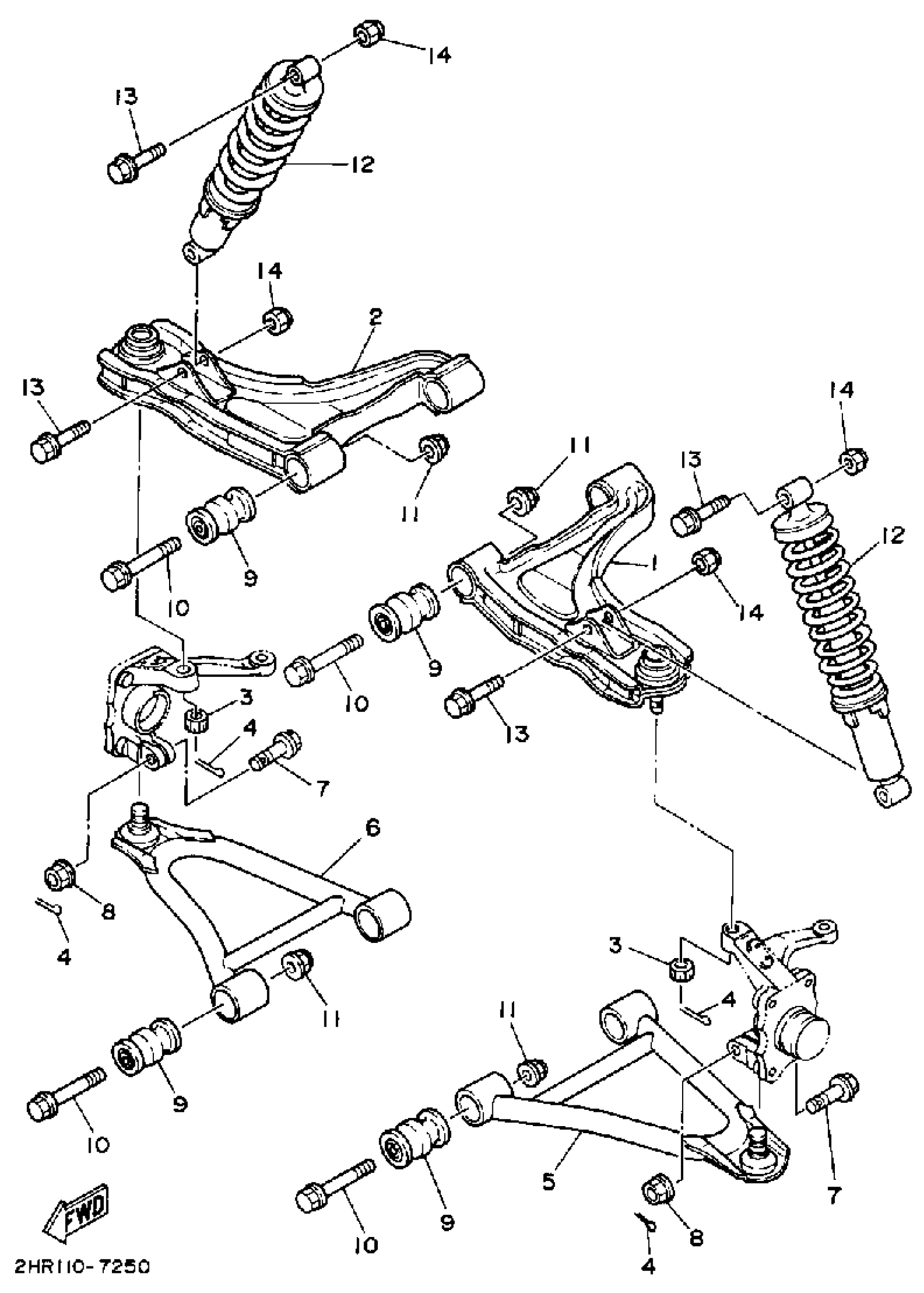

Yamaha YFM350FWT (BIG BEAR 4WD) 2HR 1987 FRONT SUSPENSION WHEEL Diagram
#
Description
Price
1
FRONT UPPER ARM COMP. (LEFT)
2HR-23540-10-00
Unavailable
2
FRONT UPPER ARM COMP. (RIGHT)
2HR-23550-10-00
Unavailable
5
FRONT LOWER ARM COMP.(LEFT)
2HR-23570-01-00
Unavailable
12
SHOCK ABS. ASSY.
3HN-23350-11-E1
Unavailable
