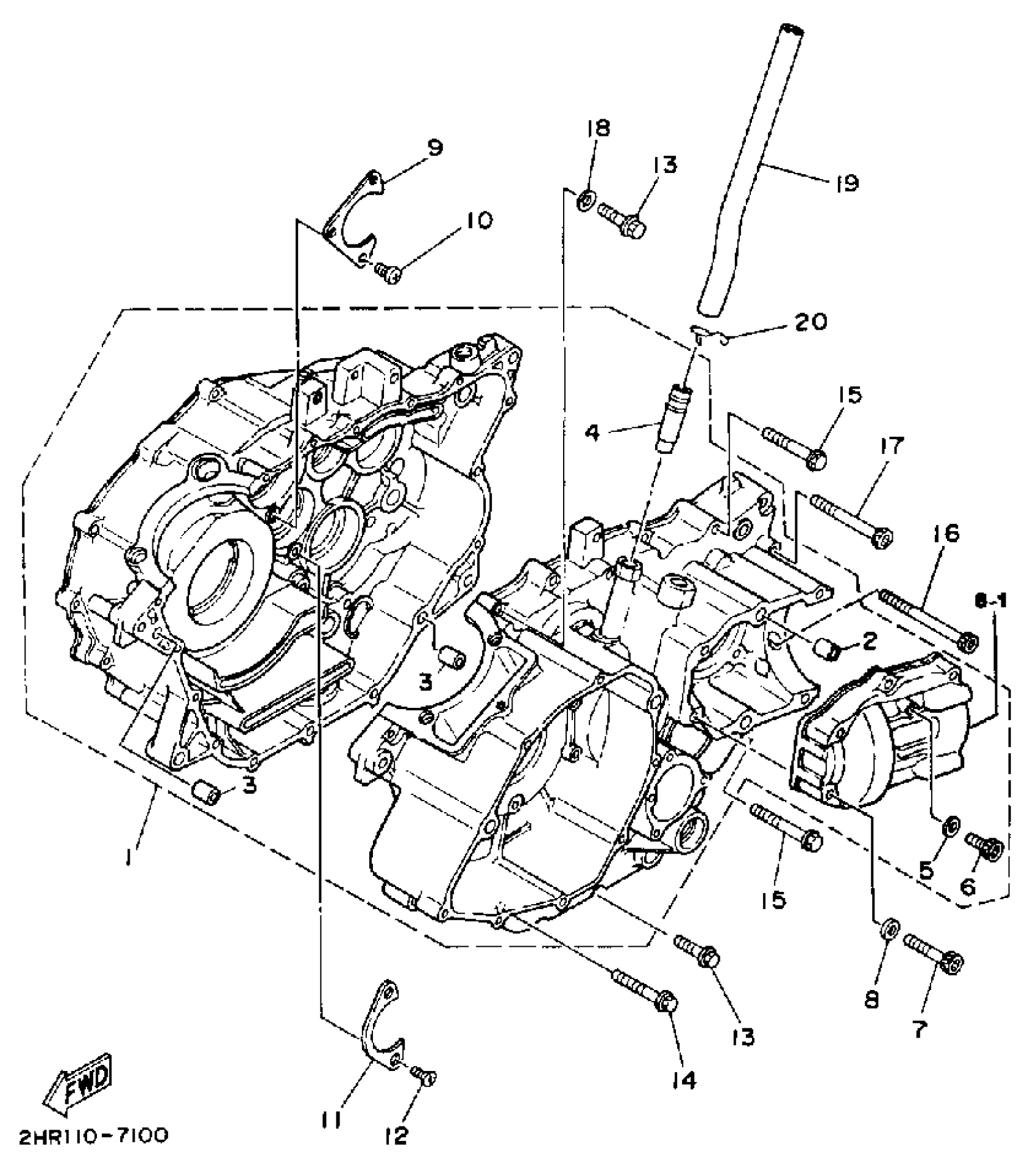

Yamaha YFM350FWT (BIG BEAR 4WD) 2HR 1987 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY (1YW-15100-01)

1YW-15100-09-00

Unavailable

1

COVER,GENERATOR

1YW-15415-29-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

PIN, DOWEL

99530-12016-00

$4.89

4

PIPE, BREATHER 2

59V-11167-00-00

Unavailable

5

WASHER, PLATE 3411117500

90201-08087-00

$3.71

6

BOLT, SOCKET HEAD

91311-08012-00

Unavailable

7

BOLT, SOCKET

91314-06040-00

$8.49

8

GASKET 256113960000

90430-06014-00

Unavailable

9

PLATE, BEARING COVER

3R4-15381-00-00

$4.68

10

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

11

PLATE, BEARING COVER

1UY-15383-00-00

Unavailable

12

SCREW, FLAT

98707-06014-00

$8.49

13

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

14

BOLT, SMALL FLANGE

95027-06050-00

$2.55

15

BOLT, SMALL FLANGE

95027-06060-00

Unavailable

16

BOLT, SOCKET

91314-06090-00

Unavailable

17

BOLT, SOCKET

91314-06070-00

Unavailable

18

GASKET 256113960000

90430-06014-00

Unavailable

19

PIPE, BREATHER 1

2HR-11166-00-00

Unavailable

20

CLIP (371)

90467-14015-00

Unavailable
