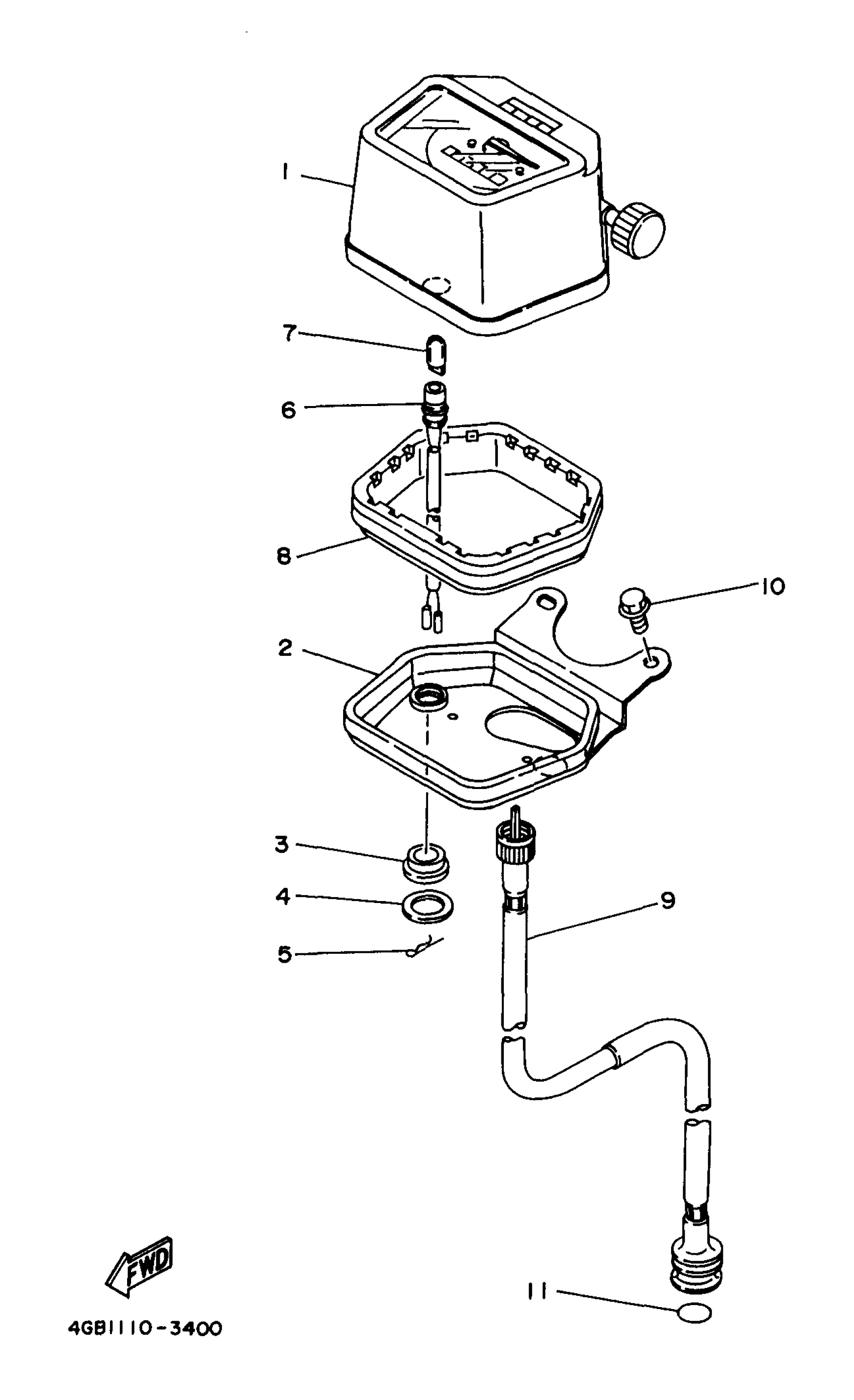

Yamaha YFM350FWJ (BIG BEAR 4WD) 3HNX 1997 METER Diagram

SPEEDOMETER ASSEMBLY (MILE)

4GB-83570-00-00

Unavailable

BRACKET, METER

4GB-83519-00-00

Unavailable

DAMPER 2

1M1-83526-01-00

$4.47

WASHER PLATE 829771780000

90201-05033-00

$10.49

CLIP (156-83525-00)

90468-10050-00

$3.05

SOCKET CORD ASSY

5E2-83509-20-00

$28.99

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

DAMPER

5Y0-83513-00-00

Unavailable

SPEEDOMETER CABLE ASSY

2HR-83550-01-00

Unavailable

BOLT, FLANGE

95817-06010-00

$4.73

O-RING (26H)

93210-14579-00

$7.49
