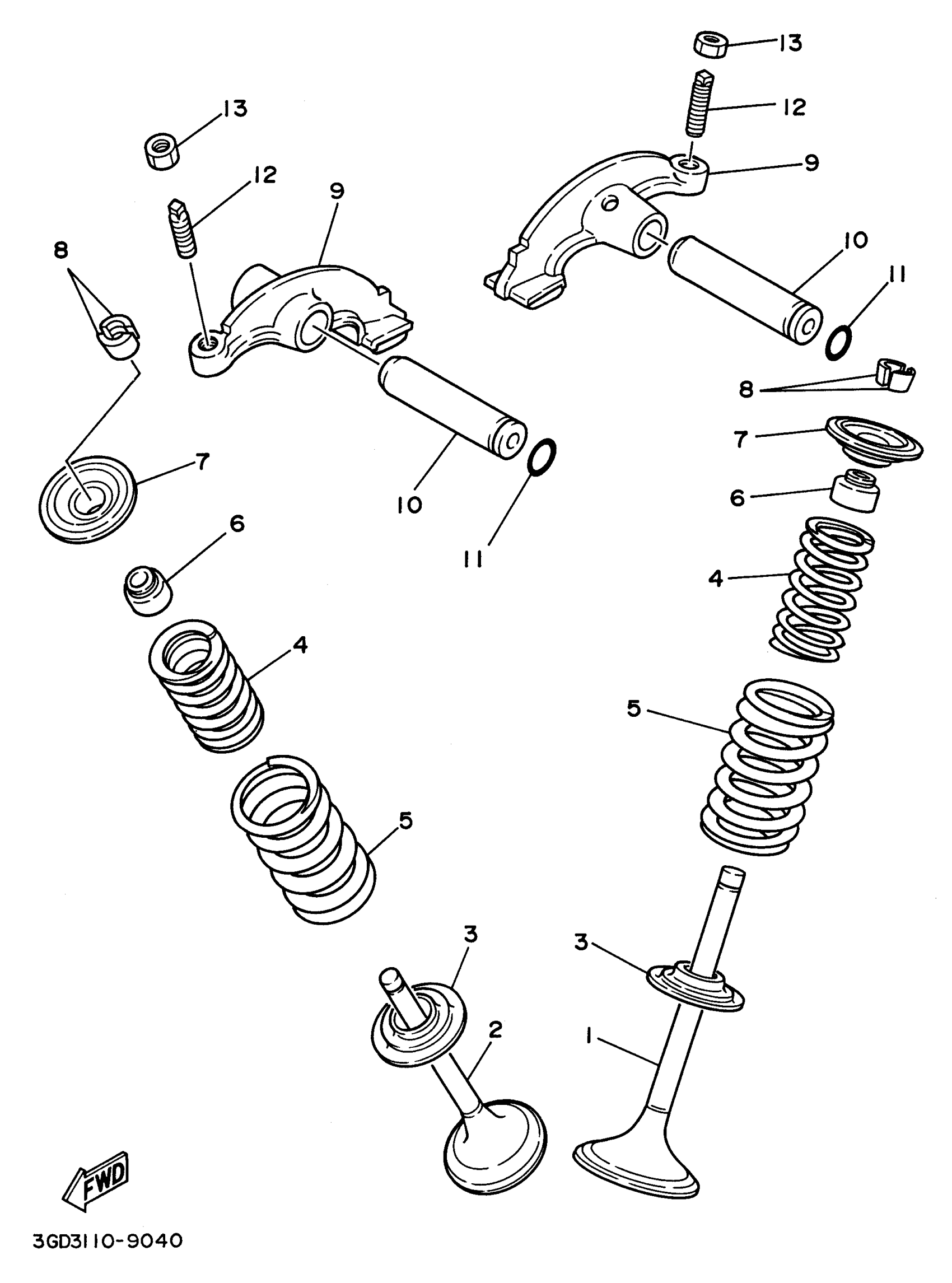

Yamaha YFM350FWH_MNH (BIG BEAR 4WD) 3HNR 1996 VALVE Diagram

VALVE, INTAKE

3Y1-12111-01-00

Unavailable

VALVE, EXHAUST

3Y1-12121-01-00

$96.99

SEAT, VALVE SPRING

3Y1-12116-00-00

$16.49

SPRING, VALVE INNER

1UY-12113-01-00

$18.49

SPRING, VALVE OUTER

1UY-12114-01-00

$27.99

SEAL, VALVE STEM OIL

1J7-12119-01-00

$20.99

RETAINER, VALVE SPRING

3Y1-12117-01-00

$17.49

LOCK, VALVE SPRING

1J7-12118-00-00

$7.99

ARM, VALVE ROCKER

3GD-12151-00-00

$116.99

SHAFT, ROCKER

3Y1-12156-00-00

$65.99

O-RING (1J7)

93210-09350-00

$7.49

SCREW, VALVE ADJUSTING

31G-12159-02-00

$9.99

NUT, LOCK

31G-12158-00-00

$6.99
