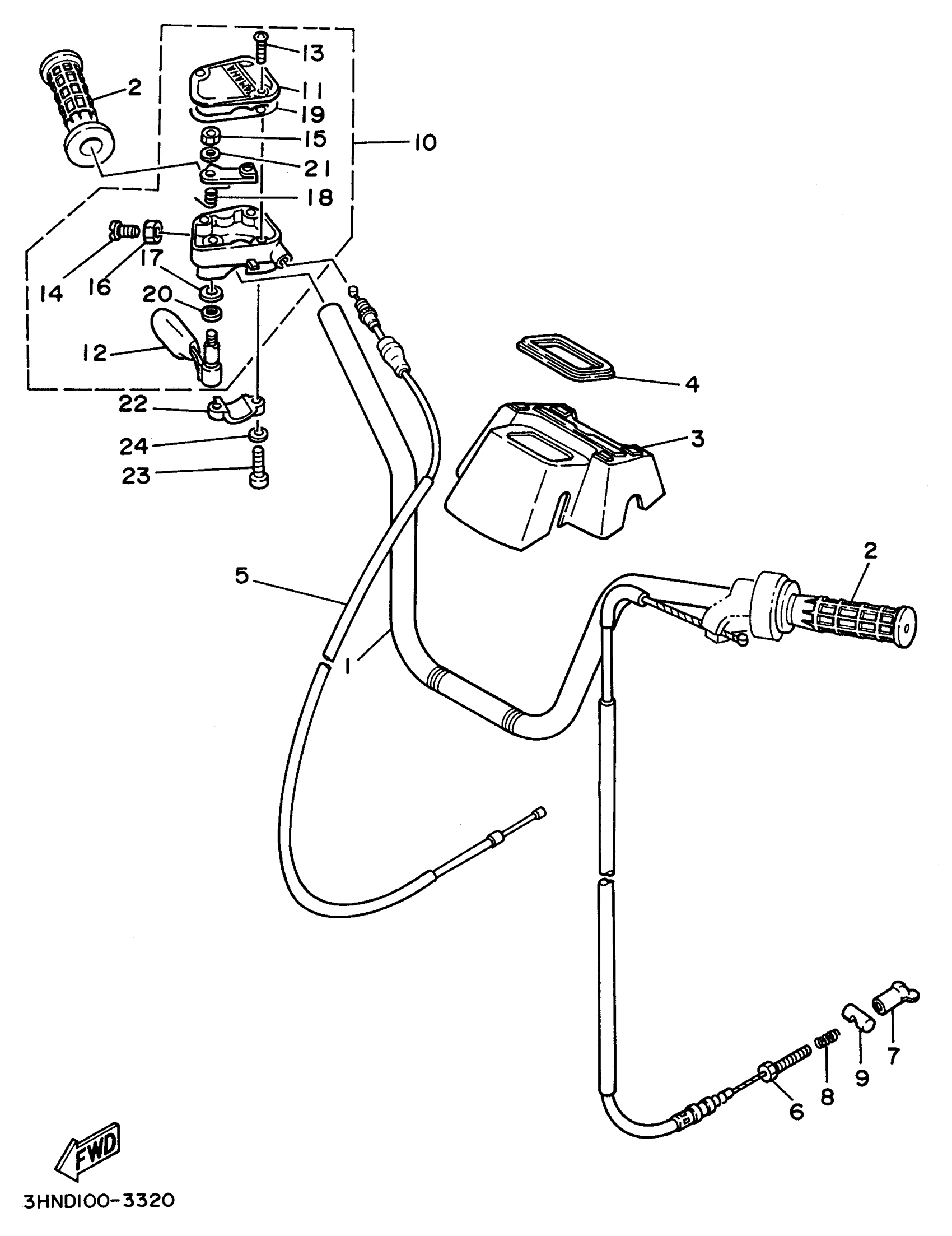

Yamaha YFM350FWH_MNH (BIG BEAR 4WD) 3HNR 1996 STEERING HANDLE CABLE Diagram

HANDLEBAR

3HN-26111-00-00

Unavailable

GRIP (L.H)

3GB-26241-00-00

$21.99

PROTECTOR, HANDLEBAR

2HR-26124-00-00

Unavailable

DAMPER

2HR-83513-00-00

Unavailable

CABLE, THROTTLE 1

3HN-26311-10-00

$51.99

CABLE, BRAKE

3HN-26341-00-00

$87.99

NUT, AJUSTING

20E-26343-00-00

$27.99

SPRING, COMPRESSION (29U)

90501-10782-00

$8.49

PIN 1562723700

90249-12008-00

$8.49

THROTTLE LEVER ASSY

1NV-26250-01-00

Unavailable

. CAP, GEAR

1NV-2628F-00-00

Unavailable

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

SCREW, PAN

98517-05012-00

$4.73

SCREW, PAN HEAD

98517-05020-00

$4.25

NUT, U

95617-05100-00

$9.49

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

OIL SEAL (9X15X4-256)

93104-09025-00

Unavailable

SPRING

1NV-26304-00-00

Unavailable

. GASKET

1NV-2628G-00-00

Unavailable

WASHER

1NV-26129-00-00

Unavailable

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

SCREW, PAN HEAD

98517-05020-00

$4.25

WASHER(3SX)

92907-05100-00

Unavailable
