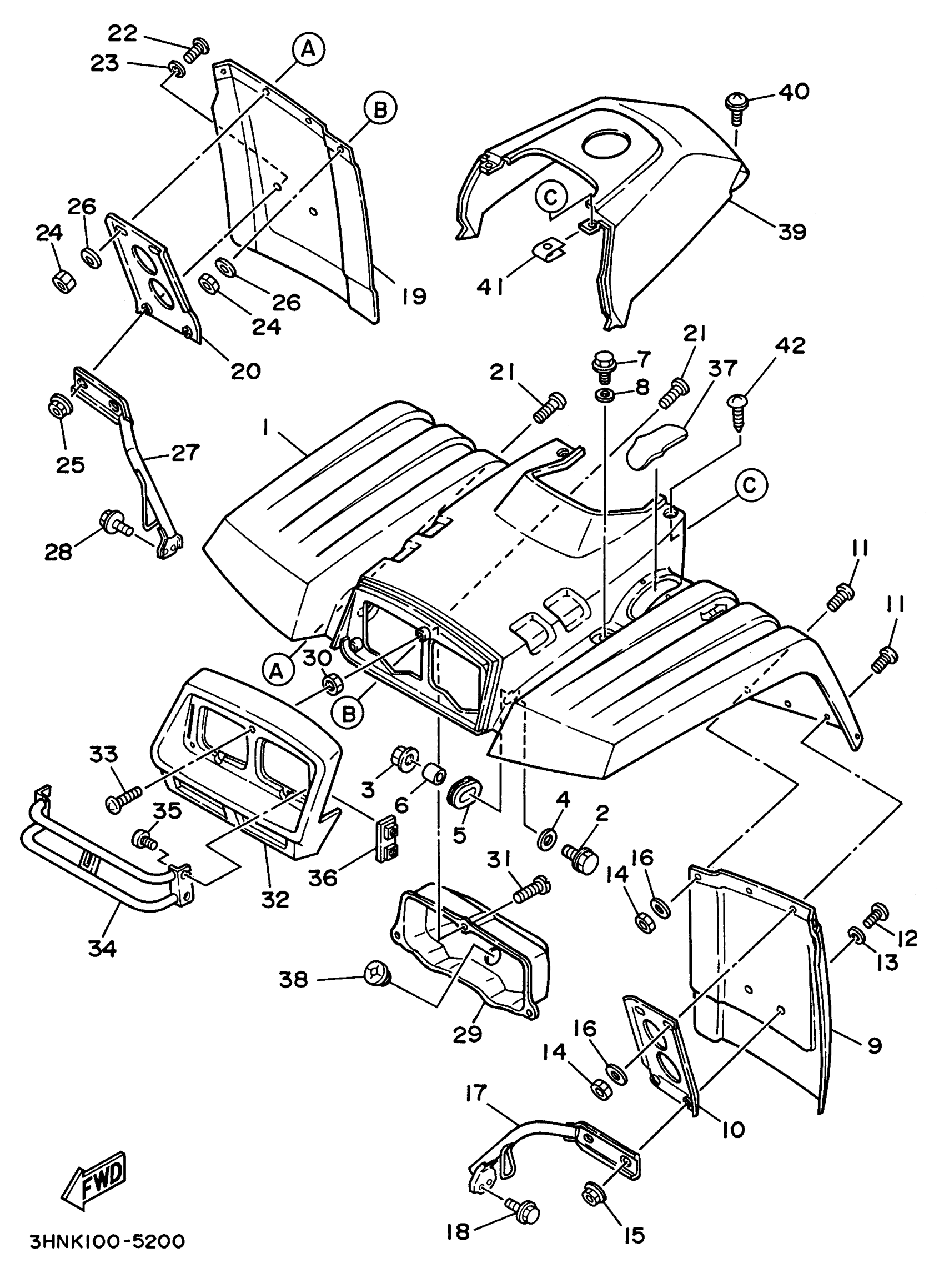

Yamaha YFM350FWH_MNH (BIG BEAR 4WD) 3HNR 1996 FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3HN-21511-A0-00

Unavailable

1

FENDER, FRONT

3HN-21511-E0-00

Unavailable

2

BOLT, FLANGE

95817-06030-00

$4.29

3

NUT, FLANGE(4MV)

95707-06500-00

$1.23

4

WASHER PLATE 248217570000

90201-06074-00

$9.49

5

GROMMET(38W)

90480-01400-00

$13.49

6

COLLAR (1M1)

90387-06553-00

$9.49

7

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

8

WASHER, PLATE (1A0)

90201-08612-00

$8.49

9

FLAP, FRONT FENDER

2HR-21521-00-00

Unavailable

10

PLATE 1

2HR-21523-00-00

$39.99

11

SCREW, BINDING (8J0)

90154-05005-00

$4.73

12

SCREW, BINDING (8J0)

90154-05005-00

$4.73

13

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

14

NUT, NYLON

95707-05300-00

$4.24

15

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

16

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

17

STAY, FENDER 1

4GB-21513-11-00

Unavailable

18

BOLT, FLANGE

95817-06012-00

Unavailable

19

FLAP 2

2HR-21561-00-00

Unavailable

20

PLATE 2

2HR-21524-00-00

Unavailable

21

SCREW, BINDING (8J0)

90154-05005-00

$4.73

22

SCREW, BINDING (8J0)

90154-05005-00

$4.73

23

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

24

NUT, NYLON

95707-05300-00

$4.24

25

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

26

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

27

STAY, FENDER 2

4GB-21514-11-00

Unavailable

28

BOLT, FLANGE

95817-06012-00

Unavailable

29

BODY, HEADLIGHT

2HR-84111-00-00

Unavailable

30

NUT

90170-05362-00

Unavailable

31

SCREW, BINDING

98907-05014-00

Unavailable

32

PANEL, FRONT

2HR-23391-00-00

Unavailable

33

SCREW, BINDING (10V)

90154-05013-00

Unavailable

34

GUARD, HEADLIGHT

2HR-84169-00-00

Unavailable

35

SCREW, BINDING

98907-06012-00

Unavailable

36

PLATE, STAY FITTING 1

2HR-21526-00-00

Unavailable

37

DAMPER 1

4GB-21541-70-00

Unavailable

37

DAMPER 1

4GB-21541-10-00

Unavailable

38

. GROMMET

90480-25461-00

Unavailable

39

COVER, TOP

3HN-2171A-40-00

Unavailable

39

COVER, TOP

3HN-2171A-C0-00

Unavailable

40

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

41

NUT, SPRING

90183-051A0-00

Unavailable

42

SCREW, BINDING(1UY)

90154-05041-00

Unavailable
