Description

Price

1

FUEL TANK COMP.

2HR-24110-01-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$58.99

3

FUEL COCK ASSY 1

2HR-24500-02-00

$59.99

4

SEAL, COCK

3AJ-24534-01-00

$10.99

5

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

6

O-RING

4X8-24512-00-00

$8.99

7

VALVE PACKING

3AC-24523-00-00

$12.99

8

WASHER, PLATE(3MB)

90202-05187-00

$1.38

9

SCREW 256241430000

90149-06011-00

$5.60

10

GROMMET (4V1)

90480-18290-00

$8.49

11

COLLAR (36R)

90387-066J1-00

$8.49

12

BOLT, HEXAGON

97017-06030-00

$3.61

13

WASHER, SPRING

92907-06100-00

$4.25

14

GROMMET(38W)

90480-01400-00

$13.49

15

WASHER, PLATE

90201-06090-00

$5.60

16

COLLAR (1T2)

90387-07598-00

Unavailable

17

BOLT, WITH WASHER (24X)

90119-06073-00

Unavailable

18

HOSE (L400)

90445-116K9-00

Unavailable

19

CLIP

90467-100A1-00

Unavailable

20

HOSE (L420)

90445-092K1-00

Unavailable

21

DAMPER, PLATE 1

2HR-2414H-00-00

Unavailable

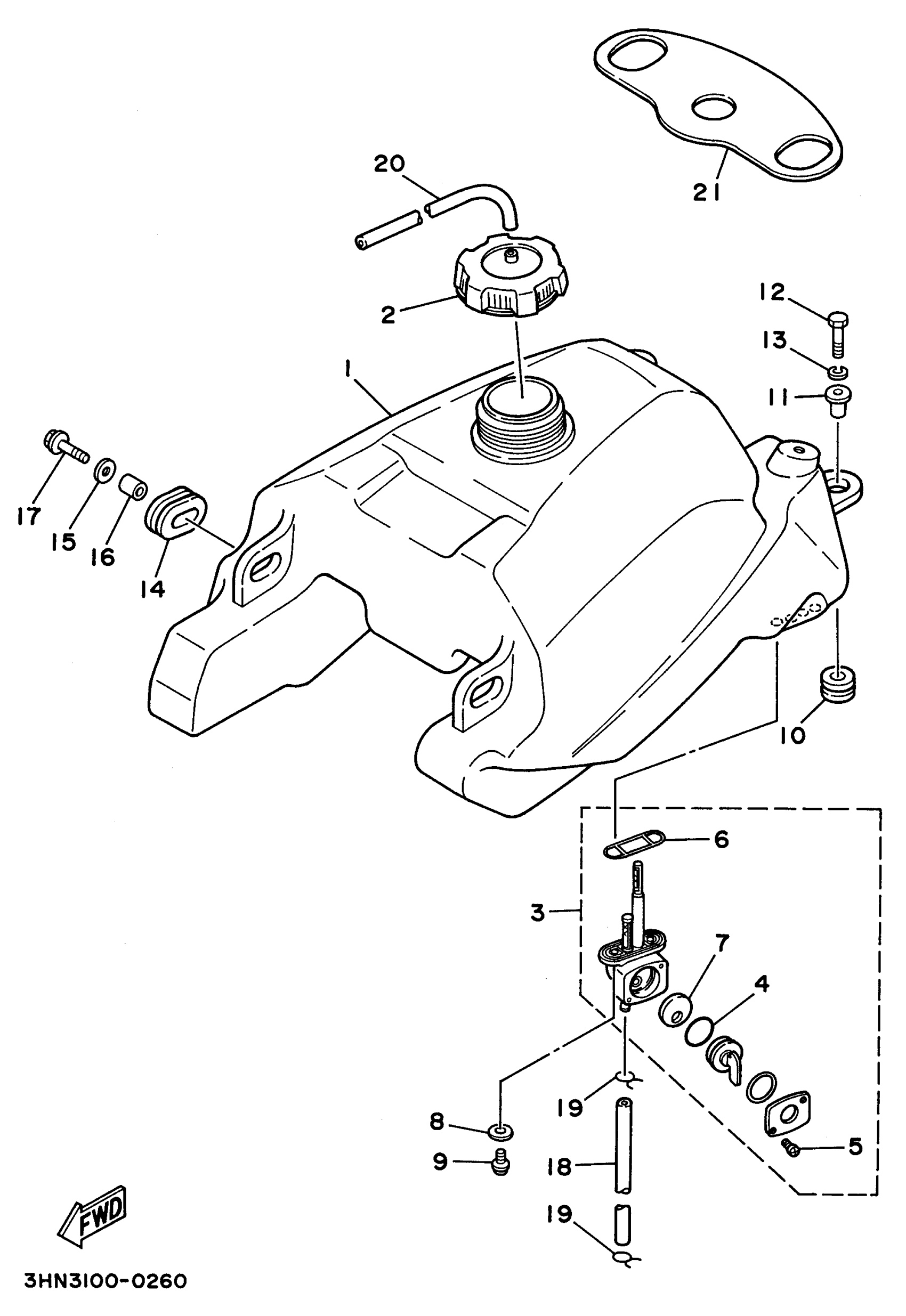

Yamaha YFM350FWH (BIG BEAR 4WD) 3HNR 1996 FUEL TANK Diagram

FUEL TANK COMP.

CAP ASSY

FUEL COCK ASSY 1

SEAL, COCK

SCREW, PAN HEAD (J10)

O-RING

VALVE PACKING

WASHER, PLATE(3MB)

SCREW 256241430000

GROMMET (4V1)

COLLAR (36R)

BOLT, HEXAGON

WASHER, SPRING

GROMMET(38W)

WASHER, PLATE

COLLAR (1T2)

BOLT, WITH WASHER (24X)

HOSE (L400)

CLIP

HOSE (L420)

DAMPER, PLATE 1
