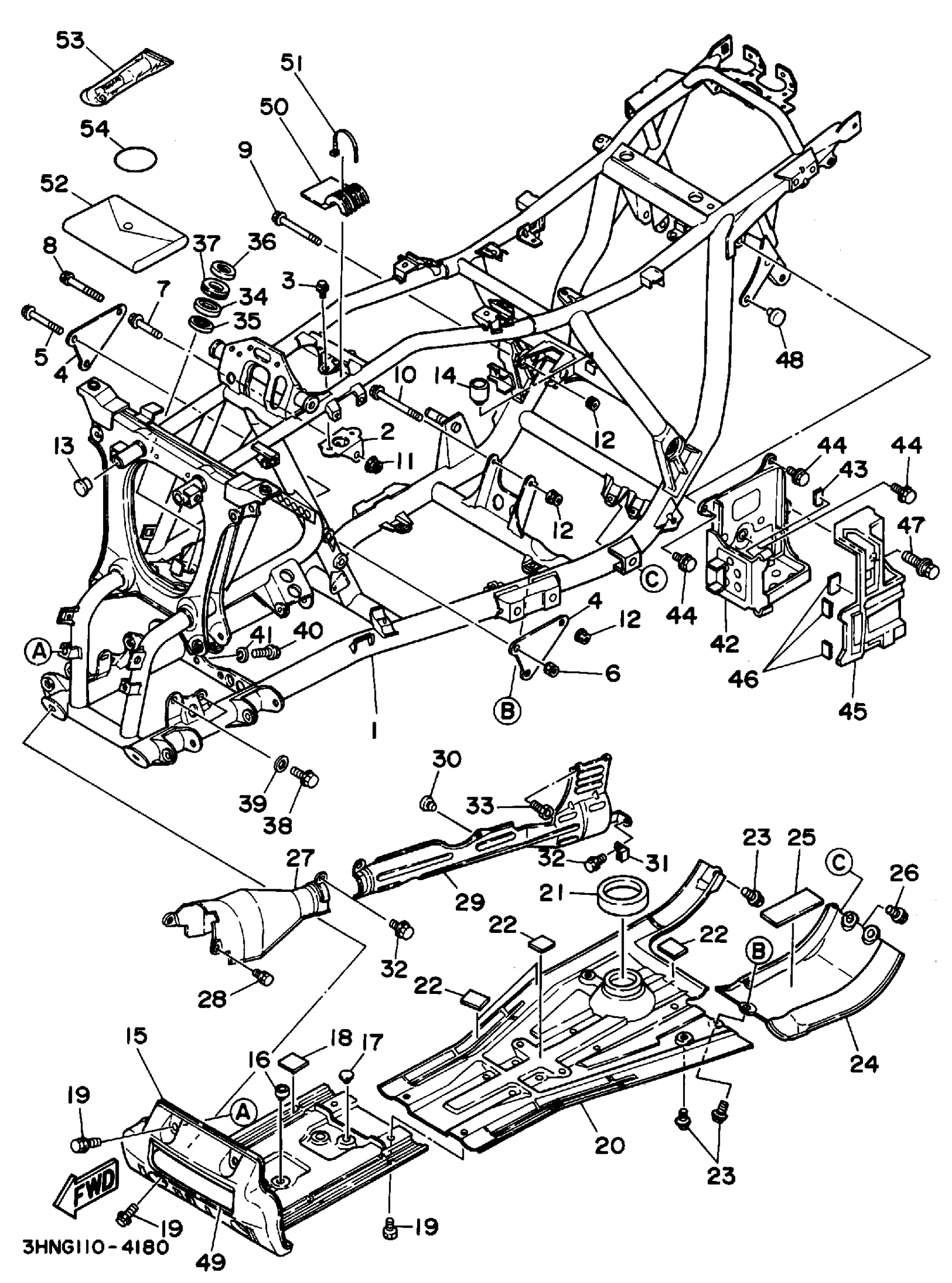

Yamaha YFM350FWG_MNH (BIG BEAR 4WD) 3HNK 1995 FRAME Diagram

#

Description
Price

1

FRAME COMP.

3HN-21110-70-33

Unavailable

2

STAY,ENGINE 2

2HR-21315-02-00

Unavailable

3

BOLT, FLANGE

95817-08012-00

$5.49

4

STAY,ENGINE 3

3HN-21316-00-00

Unavailable

5

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

6

NUT, SELF-LOCKING

90185-08169-00

$8.49

7

BOLT, FLANGE

95817-08055-00

$4.21

8

B0LT,FLANGE (1KT)

90105-10323-00

$5.60

9

BOLT, WASHER BASED(2NL)

90105-10480-00

$8.49

10

BOLT, WASHER BASED(1KT)

90105-10409-00

Unavailable

11

NUT, SELF-LOCKING

90185-08169-00

$8.49

12

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

13

PLUG (5R2)

90338-18122-00

$8.49

14

STOPPER, MAIN STAND

1J7-27114-00-00

Unavailable

15

GUARD, ENGINE 1

2HR-2147A-00-00

Unavailable

16

STOPPER, MAIN STAND

116-27114-00-00

Unavailable

17

STOPPER, MAIN STAND

128-27114-00-00

Unavailable

18

DAMPER, LOCATING 1

27V-24181-00-00

Unavailable

19

BOLT, FLANGE

95817-08012-00

$5.49

20

PROTECTOR, ENGINE

3HN-21471-00-00

Unavailable

21

. STOPPER, MAIN STAND

3HN-27114-00-00

Unavailable

22

DAMPER, LOCATING 1

27V-24181-00-00

Unavailable

23

BOLT, FLANGE

95817-08012-00

$5.49

24

STAY, TRANSFER

2HR-2147H-00-00

Unavailable

25

DAMPER 2

38V-21486-00-00

Unavailable

26

BOLT, FLANGE

95817-08012-00

$5.49

27

COVER, SHAFT 1

3HN-2147J-10-00

Unavailable

28

BOLT, FLANGE

95817-06012-00

Unavailable

29

COVER, SHAFT 2

3HN-2147K-01-00

Unavailable

30

DAMPER, LOCATING 1

22W-24181-00-00

Unavailable

31

CLAMP

90465-06176-00

Unavailable

32

BOLT, FLANGE

95817-06012-00

Unavailable

33

BOLT,SOCKET

91317-06050-00

Unavailable

34

BEARING

93306-20348-00

Unavailable

35

OIL SEAL (25X36X8-334)

93102-25099-00

Unavailable

36

OIL SEAL (25X44X6-810)

93102-25081-00

Unavailable

37

HOLDER, BEARING

2GU-23872-00-00

Unavailable

38

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

39

WASHER PLATE (3L6)

90201-08759-00

Unavailable

40

BOLT(3HN)

97017-08045-00

Unavailable

41

WASHER, PLATE(3XP)

90201-083P5-00

Unavailable

42

BOX

1YW-21170-01-00

Unavailable

43

COVER 2

3FC-2139R-00-00

Unavailable

44

BOLT, FLANGE

95817-06012-00

Unavailable

45

BOX

24W-21245-00-00

Unavailable

46

COVER 2

3FC-2139R-00-00

Unavailable

47

BOLT, WITH WASHER

90119-06152-00

Unavailable

48

STOPPER

30X-24768-00-00

Unavailable

49

EMBLEM 2

3HN-2118F-00-00

Unavailable

50

DAMPER, LOCATING 1

2HR-24181-00-00

Unavailable

51

BAND

1UA-82591-00-00

Unavailable

52

TOOL KIT

3GH-28100-00-00

Unavailable

53

GAUGE, AIR

1NV-2811A-01-00

Unavailable

54

O-RING (102)

93210-41041-00

Unavailable
