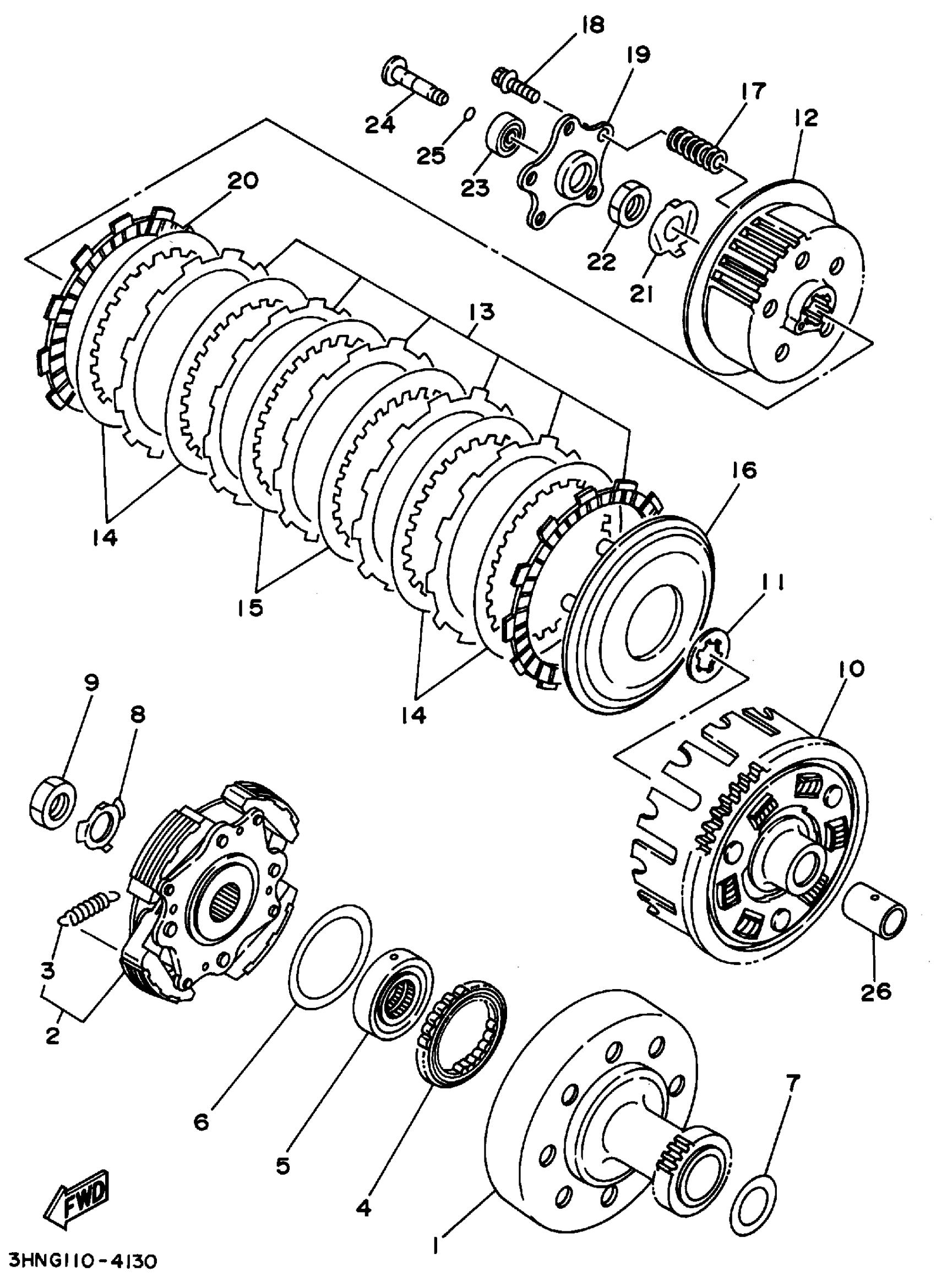

Yamaha YFM350FWG_MNH (BIG BEAR 4WD) 3HNK 1995 CLUTCH Diagram

CLUTCH HOUSING COMP.

2HR-16611-04-00

Unavailable

CLUTCH CARRIER ASSY

3HN-16620-12-00

$580.99

SPRING, CLUTCH WEIGHT 1

4GB-16626-01-00

Unavailable

BEARING, ONE WAY

1YW-16664-00-00

Unavailable

RETAINER, BEARING

1YW-16665-09-00

Unavailable

WASHER, PLATE(1YW)

90201-574L1-00

$11.49

WASHER, PLATE(1YW)

90201-286K9-00

$7.49

WASHER, LOCK(1YW)

90215-22259-00

$16.99

NUT(1NU)

90170-22371-00

$15.99

PRIMARY DRIVEN GEAR COMP.

2NL-16150-00-00

$307.99

PLATE, THRUST 1

30X-16154-00-00

$25.99

BOSS, CLUTCH

1UY-16371-02-00

$129.99

PLATE, FRICTION

5Y1-16331-01-00

$29.99

PLATE, CLUTCH 2

168-16325-10-00

$14.49

PLATE, CLUTCH 1

3J2-16324-10-00

$10.99

PLATE, PRESSURE 1

1UY-16351-00-00

Unavailable

SPRING, COMPRESSION (31A)

90501-23763-00

Unavailable

SCREW, WITH WASHER(1AE)

90159-06123-00

Unavailable

PLATE, PRESSURE 2

1UY-16352-00-00

Unavailable

PLATE, FRICTION

4H7-16321-02-00

Unavailable

WASHER, LOCK(1UY)

90215-16258-00

Unavailable

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

BRG,R-B 6000 26MM 19G KY

93306-00004-00

Unavailable

PLATE, PUSH

4GB-16358-00-00

Unavailable

O-RING (26H)

93210-06632-00

Unavailable

SPACER 1

1YW-16181-00-00

Unavailable
