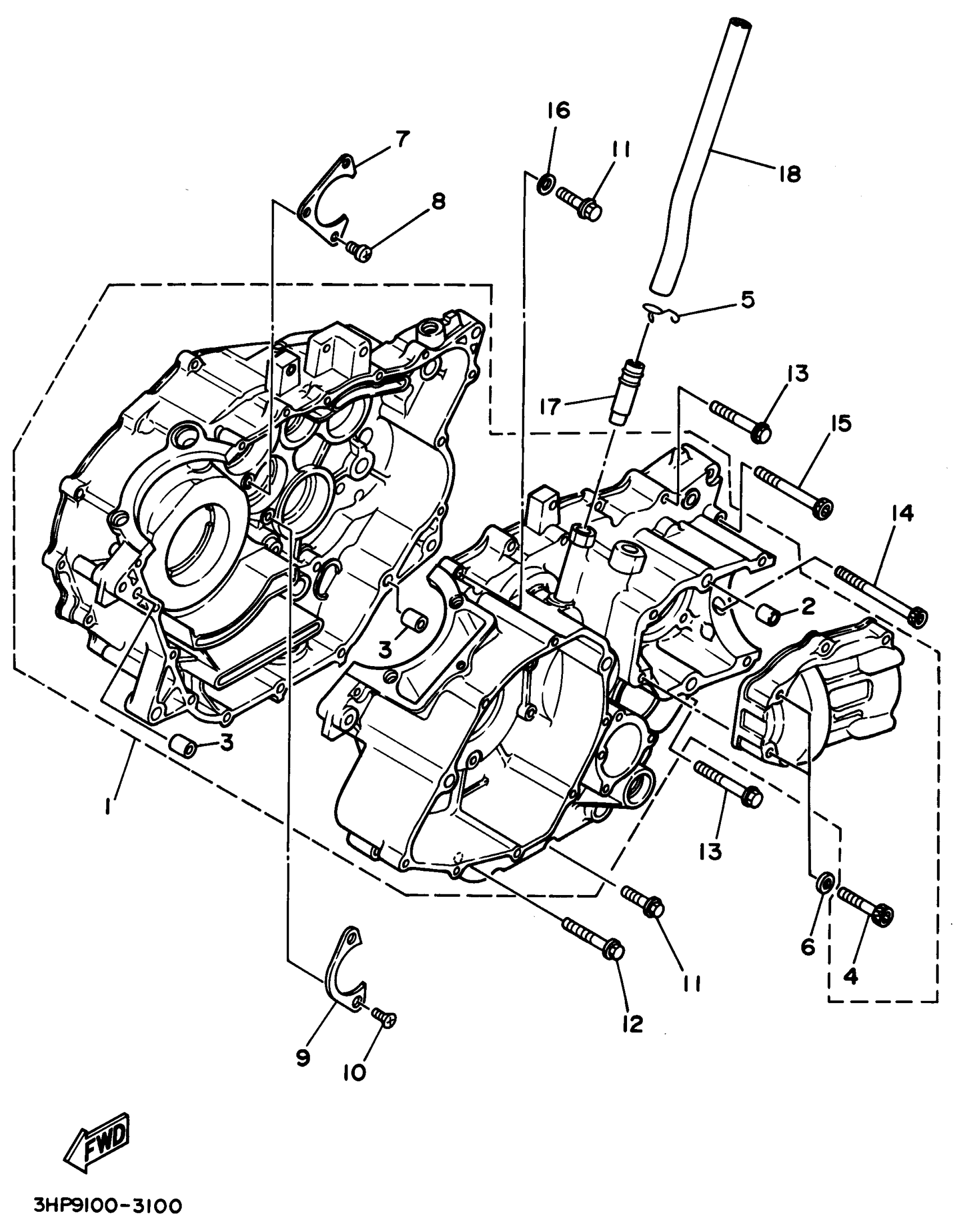

Yamaha YFM350FWG (BIG BEAR 4WD) 1995 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

1YW-15100-07-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.13

3

PIN, DOWEL

99530-12016-00

$3.85

4

BOLT, SOCKET

91314-06040-00

$5.75

5

CLIP (371)

90467-14015-00

$7.03

6

GASKET 256113960000

90430-06014-00

Unavailable

7

PLATE, BEARING COVER

3R4-15381-00-00

$4.21

8

SCREW, PAN

98517-06012-00

$2.93

9

PLATE, BEARING COVER

1UY-15383-00-00

Unavailable

10

SCREW, FLAT HEAD(4EM)

98707-06016-00

$6.22

11

BOLT, SMALL FLANGE

95027-06030-00

$3.40

12

BOLT, SMALL FLANGE

95027-06050-00

$1.68

13

BOLT, SMALL FLANGE

95027-06060-00

$1.91

14

BOLT, SOCKET

91317-06090-00

$3.76

15

BOLT, SOCKET

91317-06070-00

$3.23

16

GASKET 256113960000

90430-06014-00

Unavailable

17

PIPE, BREATHER 2

371-11167-01-00

Unavailable

18

PIPE, BREATHER 1

2HR-11166-00-00

Unavailable
