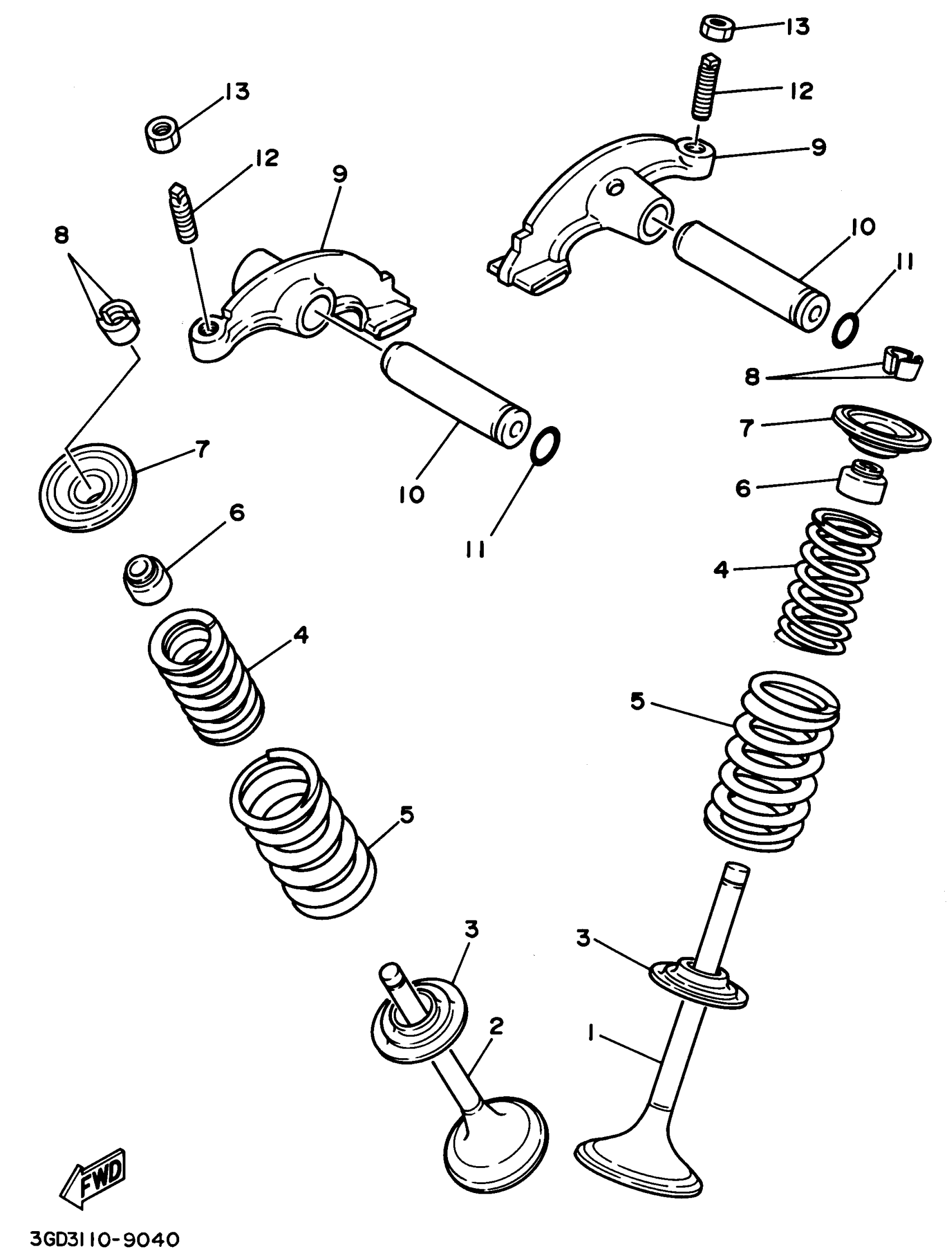

Yamaha YFM350FWF_MNH (BIG BEAR 4WD) 3HNG 1994 VALVE Diagram

VALVE, INTAKE

3Y1-12111-01-00

Unavailable

VALVE, EXHAUST

3Y1-12121-01-00

$77.80

SEAT, VALVE SPRING

3Y1-12116-00-00

$13.33

SPRING, VALVE INNER

1UY-12113-01-00

$14.81

SPRING, VALVE OUTER

1UY-12114-01-00

$20.00

SEAL, VALVE STEM OIL

1J7-12119-01-00

$17.03

RETAINER, VALVE SPRING

3Y1-12117-01-00

$14.07

LOCK, VALVE SPRING

1J7-12118-00-00

$5.99

ARM, VALVE ROCKER

3GD-12151-00-00

$94.10

SHAFT, ROCKER

3Y1-12156-00-00

$59.41

O-RING (1J7)

93210-09350-00

$5.42

SCREW, VALVE ADJUSTING

31G-12159-02-00

$7.96

NUT, LOCK

31G-12158-00-00

$5.37
