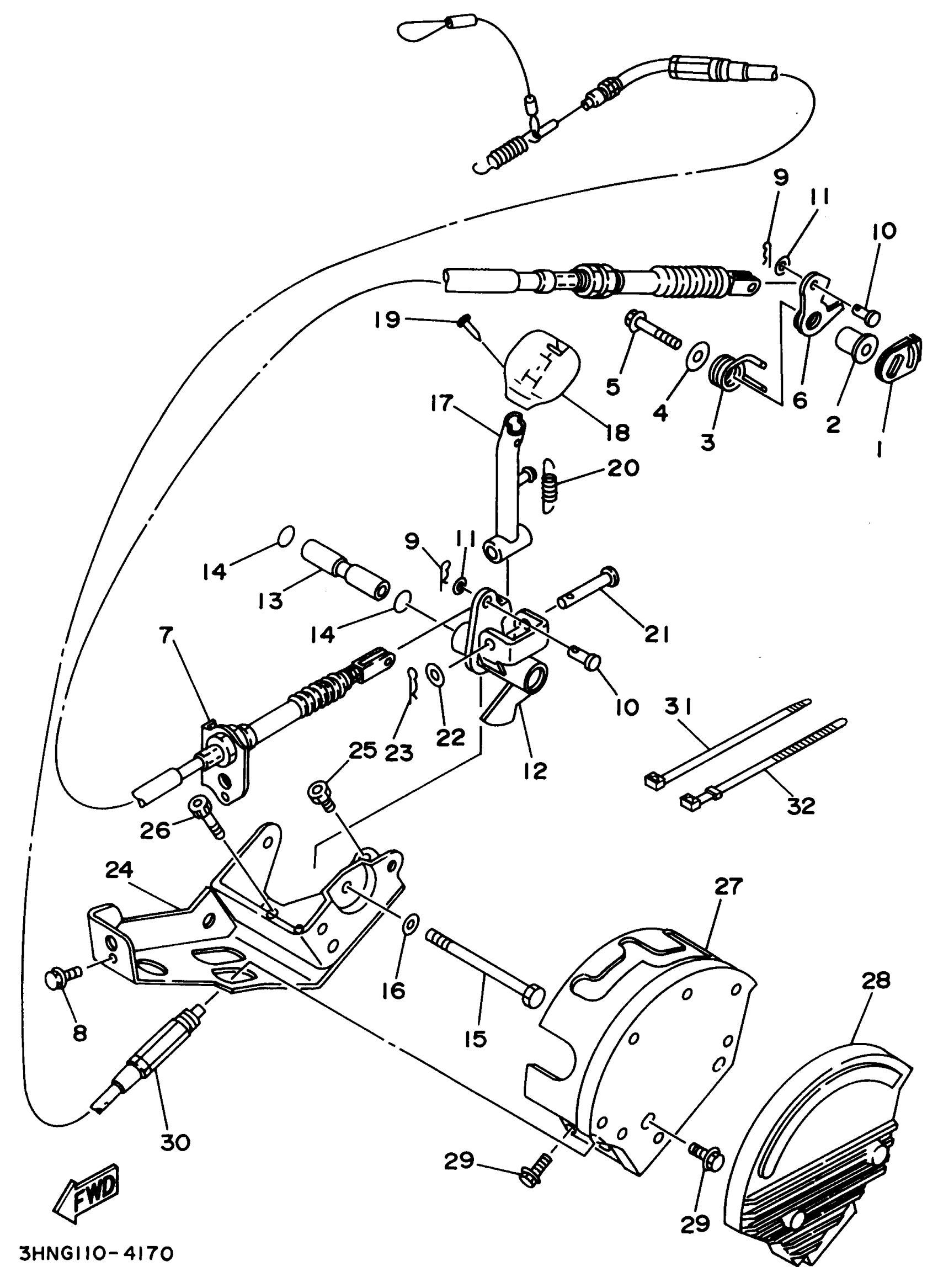

Yamaha YFM350FWF_MNH (BIG BEAR 4WD) 3HNG 1994 SHIFTER Diagram

#

Description
Price

1

LEVER

4SH-18198-00-00

$22.99

2

COLLAR

90387-0613B-00

$9.49

3

SPRING, TORSION(1YW)

90508-35764-00

$5.60

4

WASHER, PLATE

90201-06M02-00

Unavailable

5

BOLT, FLANGE

95817-06035-00

$7.49

6

LEVER

1YW-18191-00-00

Unavailable

7

WIRE, CONTROL 1

4GB-2637E-00-00

Unavailable

8

BOLT, FLANGE

95817-10020-00

$8.49

9

CLIP (156-83525-00)

90468-10050-00

$3.05

10

PIN

91701-06016-00

Unavailable

11

WASHER(6TA)

92907-06200-00

$8.49

12

SHAFT, RINK

4GB-18341-00-00

Unavailable

13

COLLAR

90387-063W2-00

Unavailable

14

O-RING(3LD)

93210-12790-00

$7.49

15

BOLT(7LR)

97027-06080-00

$7.49

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

SHIFT LEVER ASSY

4GB-18150-00-00

Unavailable

18

KNOB, SHIFT LEVER

3JN-18174-00-00

Unavailable

19

RIVET(81E)

90269-05055-00

Unavailable

20

SPRING, TENSION(3JN)

90506-16451-00

Unavailable

21

PIN, CLEVIS (565)

91701-08042-00

Unavailable

22

WASHER, PLAIN

92990-08200-00

Unavailable

23

CLIP 136253750000

90468-12006-00

Unavailable

24

BRACKET, SHIFTER

4GB-18431-01-00

Unavailable

25

BOLT, FLANGE

95817-06016-00

Unavailable

26

BOLT, FLANGE

95817-06030-00

Unavailable

27

BRACKET

4SH-18128-01-00

Unavailable

28

COVER, SHIFT SHAFT

3JN-18129-00-00

Unavailable

29

BOLT, FLANGE

95817-06012-00

Unavailable

30

WIRE, CONTROL 2

3HN-2637F-00-00

Unavailable

31

BAND

1UA-82591-00-00

Unavailable

32

BAND, SWITCH CORD

437-83936-11-00

Unavailable
