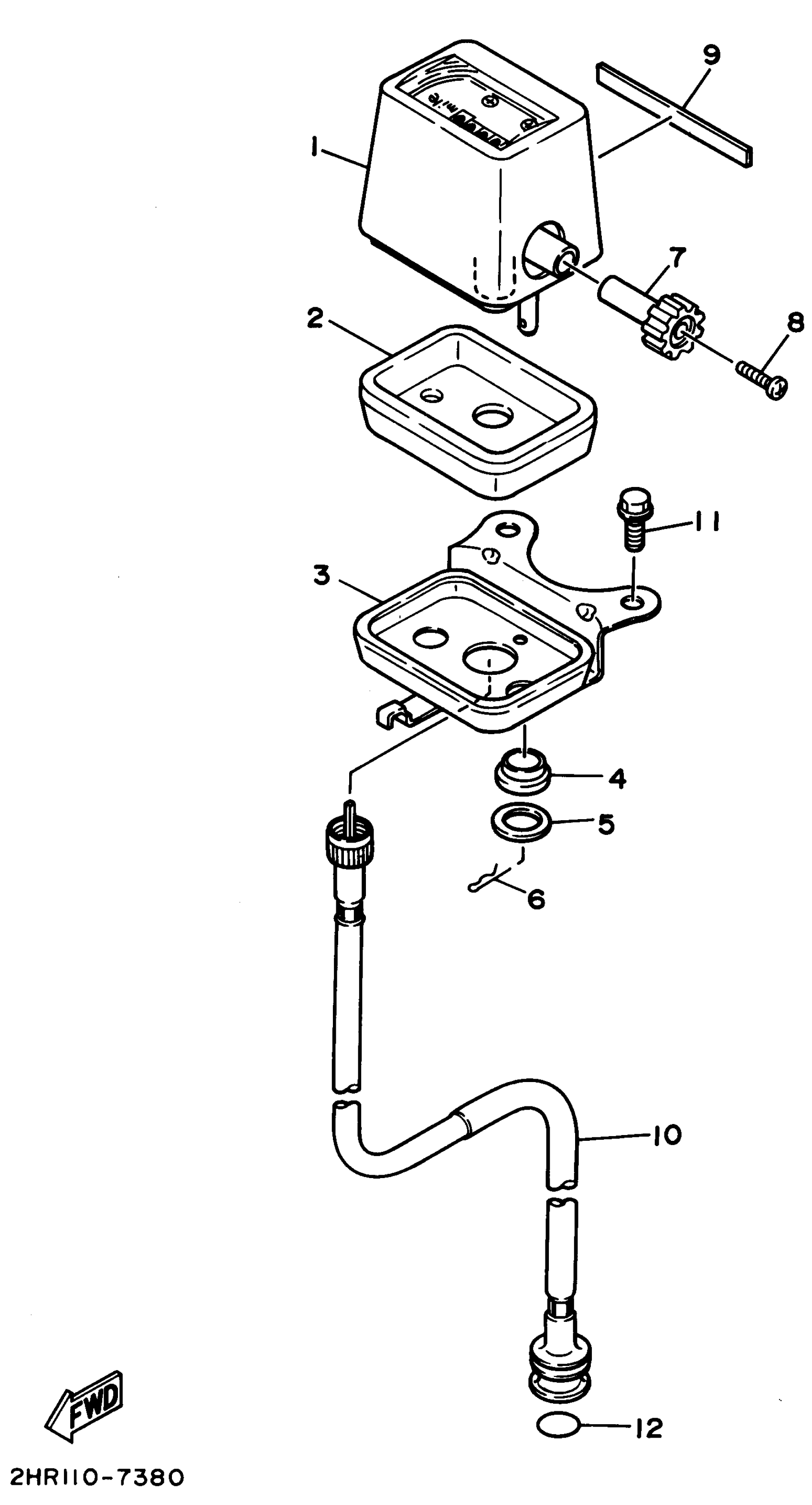

Yamaha YFM350FWF_MNH (BIG BEAR 4WD) 3HNG 1994 METER Diagram

#

Description
Price

1

TRIP METER COMP.

2HR-83505-G0-00

Unavailable

2

DAMPER

4V5-83513-00-00

Unavailable

3

BRACKET, METER

2HR-83519-01-00

Unavailable

4

DAMPER 2

1M1-83526-01-00

$3.52

5

WASHER, SPECIAL

4X8-83524-00-00

$6.36

6

CLIP (156-83525-00)

90468-10050-00

$2.16

7

KNOB, TRIP METER

11H-83578-00-00

Unavailable

8

SCREW, PAN HEAD (11H)

90157-02031-00

$6.57

9

DAMPER

2HR-83592-00-00

Unavailable

10

SPEEDOMETER CABLE ASSY

2HR-83550-01-00

Unavailable

11

BOLT, FLANGE

95817-06010-00

$3.65

12

O-RING (26H)

93210-14579-00

$5.05
