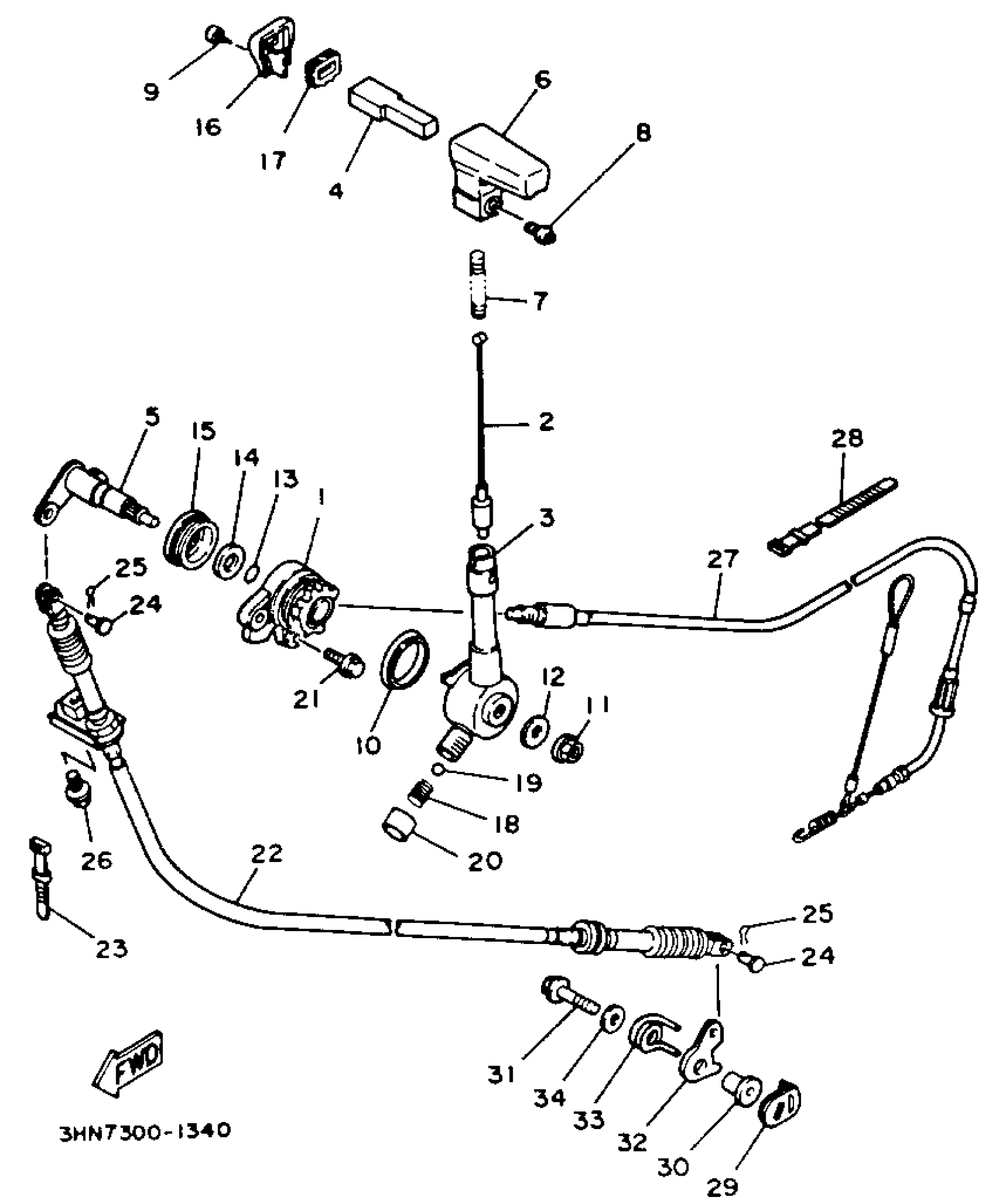

Yamaha YFM350FWE_MNH (BIG BEAR 4WD) 3HND 1993 REVERSE LEVER Diagram

#

Description
Price

1

BODY, REVERSE LEVER

2NL-26151-00-00

Unavailable

2

STOPPER, LEVER

3HN-26154-00-00

Unavailable

3

LEVER, REVERSE

3HN-26152-00-00

Unavailable

4

LEVER, LOCK

1YW-26157-00-00

Unavailable

5

SHAFT, REVERSE LEVER

2HR-26155-00-00

Unavailable

6

GRIP, LEVER

2HR-26153-00-00

Unavailable

7

SPRING, COMPRESSION(3HN)

90501-124F0-00

$24.99

8

SCREW, WITH WASHER

90159-05156-00

Unavailable

9

SCREW, PAN TAP.2 SLIT

97707-40612-00

$6.99

10

OIL SEAL,SR-TYPE

93112-48009-00

Unavailable

11

NUT

90179-08428-00

Unavailable

12

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

13

O-RING(3LD)

93210-12790-00

$7.49

14

WASHER, PLATE (25H)

90201-162H4-00

$9.49

15

CAP, RUBBER

2NL-26329-00-00

Unavailable

16

CAP, GRIP

1YW-2628J-00-00

Unavailable

17

SEAL

1YW-2639G-00-00

Unavailable

18

SPRING, COMPRESSION

90501-157E9-00

Unavailable

19

BALL (5X4)

93521-64032-00

Unavailable

20

NUT 1

2NL-26294-00-00

Unavailable

21

BOLT, FLANGE

95817-06020-00

Unavailable

22

CABLE, CONTROL 1

3HN-2637E-01-00

Unavailable

23

BAND

341-26397-01-00

Unavailable

24

PIN

91701-06016-00

Unavailable

25

PIN, COTTER

91490-20025-00

Unavailable

26

BOLT, FLANGE

95817-10020-00

Unavailable

27

WIRE, CONTROL 2

2HR-2637F-00-00

Unavailable

28

BAND, SWITCH CORD

437-83936-11-00

Unavailable

29

LEVER

4SH-18198-00-00

Unavailable

30

COLLAR

90387-0613B-00

Unavailable

31

BOLT, FLANGE

95817-06035-00

Unavailable

32

LEVER

1YW-18191-00-00

Unavailable

33

SPRING, TORSION(1YW)

90508-35764-00

Unavailable

34

WASHER, PLATE

90201-06M02-00

Unavailable
