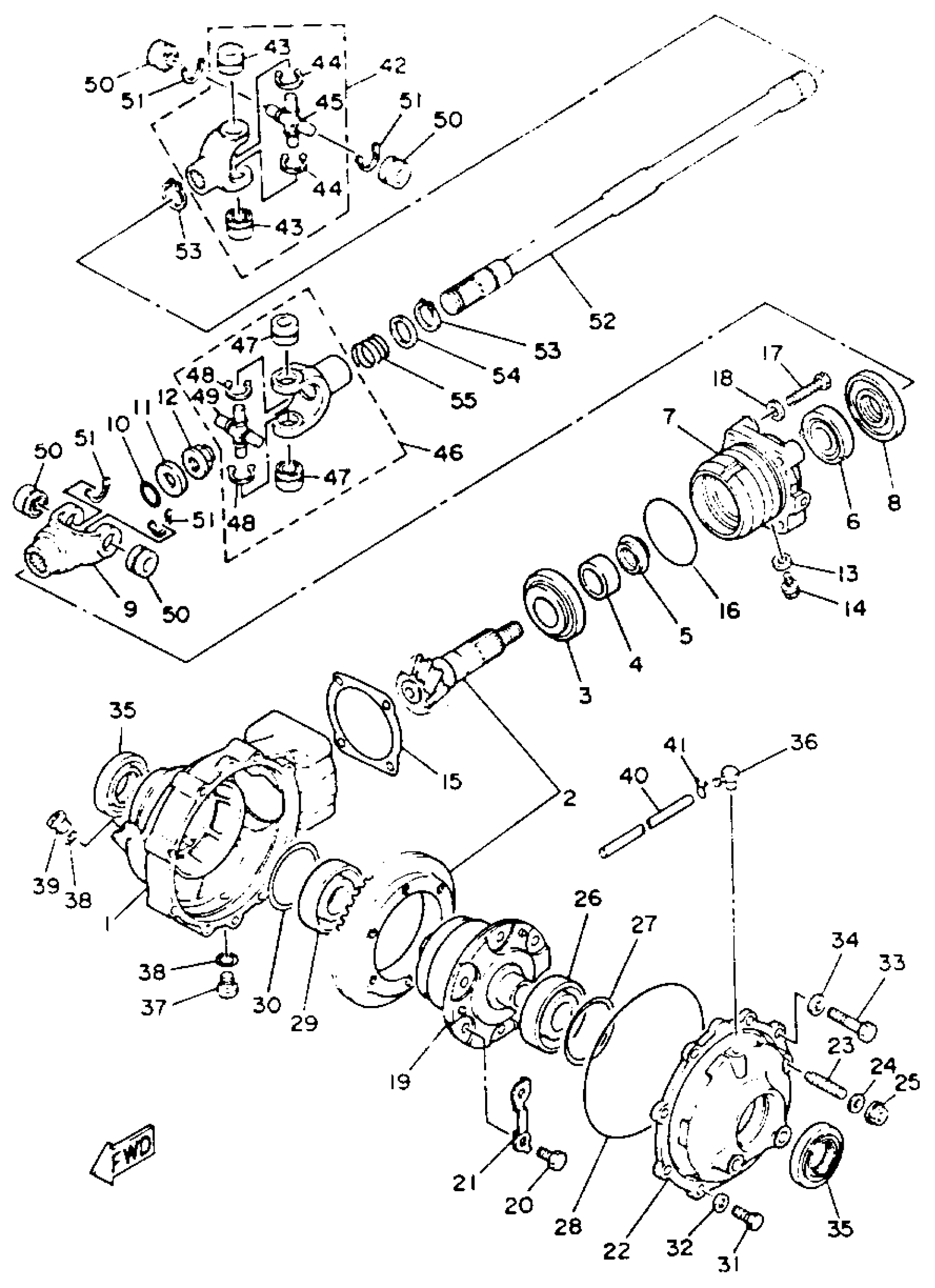

Yamaha YFM350FWE_MNH (BIG BEAR 4WD) 3HND 1993 FRONT DIFFERENTIAL Diagram
#
1
HOUSING, SHAFT DRIVE 2
2HR-46161-00-00
Unavailable
2
PINION DRIVE GEAR SET
2HR-Y4613-00-00
Unavailable
3
BEARING(2HR)
93332-00066-00
Unavailable
4
COLLAR
90387-257R3-00
Unavailable
5
SPACER, EXPANSION
2H7-17571-01-00
Unavailable
6
BRG,TAPERED ROLLER 52MM KY
93332-00024-00
Unavailable
7
HOUSING, PINION BEARING
2HR-46144-00-00
Unavailable
8
OIL SEAL(2HR)
93105-35028-00
Unavailable
9
YOKE, JOINT 2
4UM-46146-01-00
Unavailable
15
SHIM, DRIVE PISTON (0.40T)
2HR-46127-00-40
Unavailable
15
SHIM, DRIVE PISTON (0.40T)
2HR-46127-00-40
Unavailable
15
SHIM, DRIVE PISTON (0.50T)
2HR-46127-00-50
Unavailable
16
O-RING
93210-626A7-00
Unavailable
17
BOLT(3HN)
97017-08045-00
Unavailable
18
.. WASHER, PLATE
92990-08600-00
Unavailable
19
LIMITED SLIP DIFF. ASSY
3HN-46470-05-00
Unavailable
20
BOLT
90101-10666-00
Unavailable
21
WASHER, PLATE
2HR-22156-00-00
Unavailable
22
HOUSING, BEARING 2
2HR-46162-01-00
Unavailable
23
STOPPER, RING GEAR
2HR-46156-00-00
Unavailable
25
NUT, FLANGE
95704-08500-00
Unavailable
26
BEARING(2HR)
93306-20717-00
Unavailable
27
SHIM, THRUST
4H7-17537-00-20
Unavailable
27
SHIM, THRUST (0.30T)
4H7-17537-00-30
Unavailable
27
SHIM, THRUST (0.40T)
4H7-17537-00-40
Unavailable
28
O-RING(59V)
93211-54698-00
Unavailable
29
BEARING(2HR)
93306-20717-00
Unavailable
30
SHIM, THRUST
4H7-17537-00-20
Unavailable
30
SHIM, THRUST (0.30T)
4H7-17537-00-30
Unavailable
30
SHIM, THRUST (0.40T)
4H7-17537-00-40
Unavailable
31
BOLT (682)
97013-08025-00
Unavailable
32
.. WASHER, PLATE
92990-08600-00
Unavailable
33
BOLT(3JP)
97017-10045-00
Unavailable
34
WASHER, PLATE
92990-10600-00
Unavailable
35
OIL SEAL(2HR)
93102-35380-00
Unavailable
36
BREATHER
5UG-15371-00-00
Unavailable
37
PLUG, STRAIGHT SCREW
90340-14002-00
Unavailable
38
GASKET
214-11198-01-00
Unavailable
39
PLUG, STRAIGHT(2E9)
90340-14029-00
Unavailable
40
HOSE (L1050)
90445-072G8-00
Unavailable
41
CLIP (1J7)
90467-07029-00
Unavailable
42
CROSS JOINT COMP. 2
3HN-46107-00-00
Unavailable
43
BEARING(2HR)
93399-99926-00
Unavailable
44
CIRCLIP (4X7)
93440-20088-00
Unavailable
45
SPIDER
2HR-46187-00-00
Unavailable
46
CROSS JOINT COMP. 3
4GB-46108-10-00
Unavailable
47
BEARING(2HR)
93399-99926-00
Unavailable
48
CIRCLIP (4X7)
93440-20088-00
Unavailable
49
SPIDER
2HR-46187-00-00
Unavailable
50
BEARING(2HR)
93399-99926-00
Unavailable
51
CIRCLIP (4X7)
93440-20088-00
Unavailable
52
SHAFT, DRIVE 2
2HR-46173-02-00
Unavailable
53
CIRCLIP (537)
93410-22039-00
Unavailable
54
WASHER, PLATE(3HN)
90201-225M9-00
Unavailable
55
SPRING, COMPRESSION(3HN)
90501-234F8-00
Unavailable
