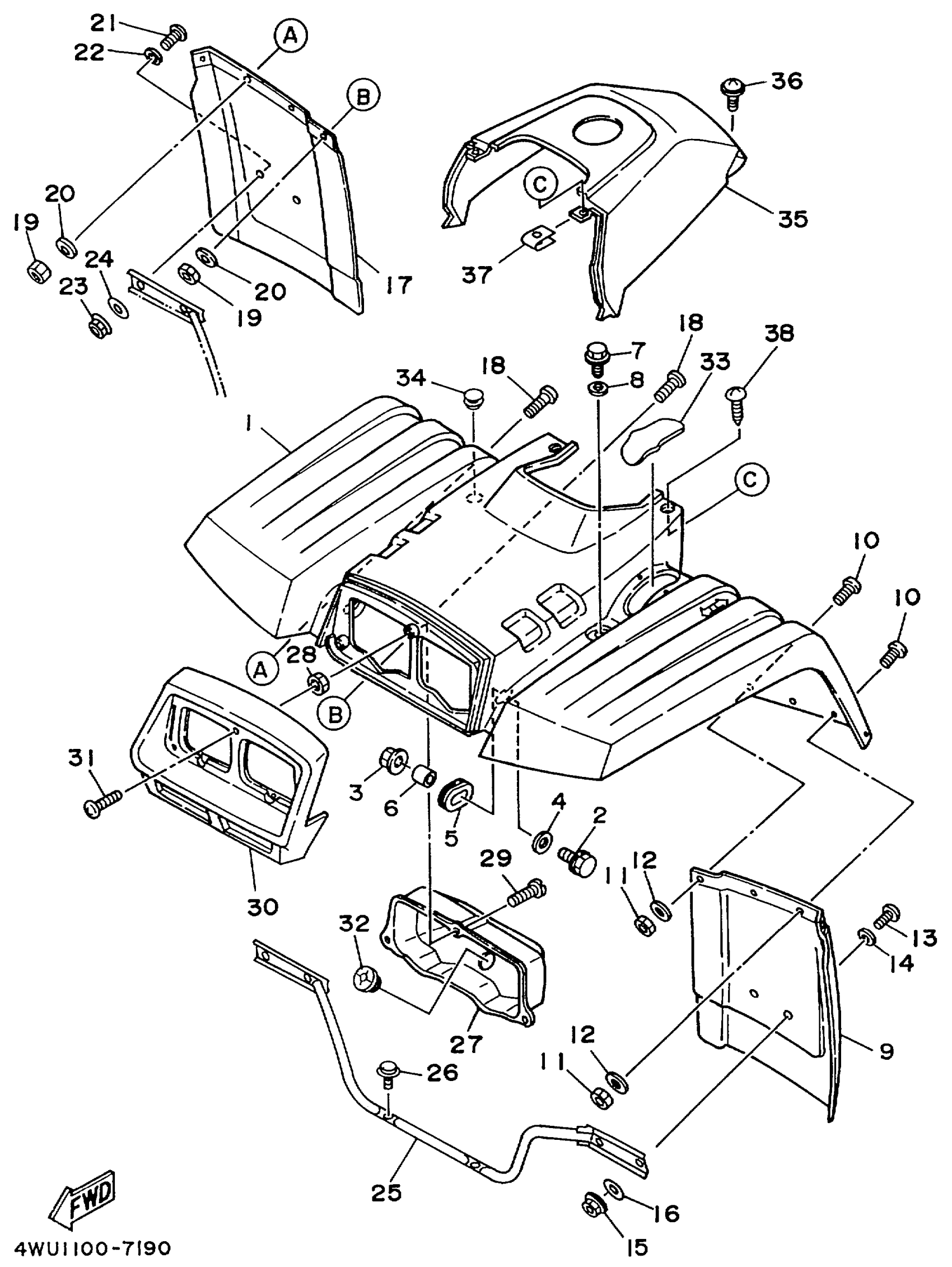

Yamaha YFM350FWBLC (BIG BEAR 4WD) 5FT1 1999 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP. (ROMANTIQUE ROUGE)

5FE-W2151-00-00

Unavailable

1

FRONT FENDER COMP. (PASTEL DEEP GREEN)

5FE-W2151-10-00

Unavailable

1

FRONT FENDER COMP. (DARK GRAYISH YELLOW SOLID 1)

5FE-W2151-20-00

Unavailable

2

BOLT, FLANGE

95817-06030-00

$4.29

3

NUT, FLANGE(4MV)

95707-06500-00

$1.23

4

WASHER PLATE 248217570000

90201-06074-00

$9.49

5

GROMMET(38W)

90480-01400-00

$13.49

6

COLLAR (1T2)

90387-07598-00

$5.60

7

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

8

WASHER, PLATE (1A0)

90201-08612-00

$8.49

9

FLAP, FRONT FENDER

2HR-21521-00-00

Unavailable

10

SCREW, BINDING (8J0)

90154-05005-00

$4.73

11

NUT, NYLON

95707-05300-00

$4.24

12

WASHER, PLATE 8067717800

90201-05029-00

$8.49

13

SCREW, BINDING (8J0)

90154-05005-00

$4.73

14

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

15

NUT, NYLON

95707-05300-00

$4.24

16

WASHER, PLATE 8067717800

90201-05029-00

$8.49

17

FLAP 2

2HR-21561-00-00

Unavailable

18

SCREW, BINDING (8J0)

90154-05005-00

$4.73

19

NUT, NYLON

95707-05300-00

$4.24

20

WASHER, PLATE 8067717800

90201-05029-00

$8.49

21

SCREW, BINDING (8J0)

90154-05005-00

$4.73

22

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

23

NUT, NYLON

95707-05300-00

$4.24

24

WASHER, PLATE 8067717800

90201-05029-00

$8.49

25

STAY, FENDER 1

4WU-21513-00-00

Unavailable

26

BOLT, FLANGE

95817-06012-00

Unavailable

27

BODY, HEADLIGHT

2HR-84111-00-00

Unavailable

28

NUT

90170-05362-00

Unavailable

29

SCREW, BINDING

98907-05014-00

Unavailable

30

PANEL, FRONT

2HR-23391-00-00

Unavailable

31

SCREW, BINDING (10V)

90154-05013-00

Unavailable

32

. GROMMET

90480-25461-00

Unavailable

33

DAMPER 1 (PASTEL DEEP GREEN)

4GB-21541-90-00

Unavailable

33

DAMPER 1 (ROMANTIQUE ROUGE)

4GB-21541-A0-00

Unavailable

33

DAMPER 1 (DARK GRAYISH YELLOW SOLID 1)

4GB-21541-B0-00

Unavailable

34

CAP

26H-28349-00-00

Unavailable

35

COVER, TOP (PASTEL DEEP GREEN)

3HN-2171A-E0-00

Unavailable

35

COVER, TOP (ROMANTIQUE ROUGE)

3HN-2171A-F0-00

Unavailable

35

COVER, TOP (DARK GRAYISH YELLOW SOLID 1)

3HN-2171A-G0-00

Unavailable

36

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

37

NUT, SPRING

90183-051A0-00

Unavailable

38

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable
