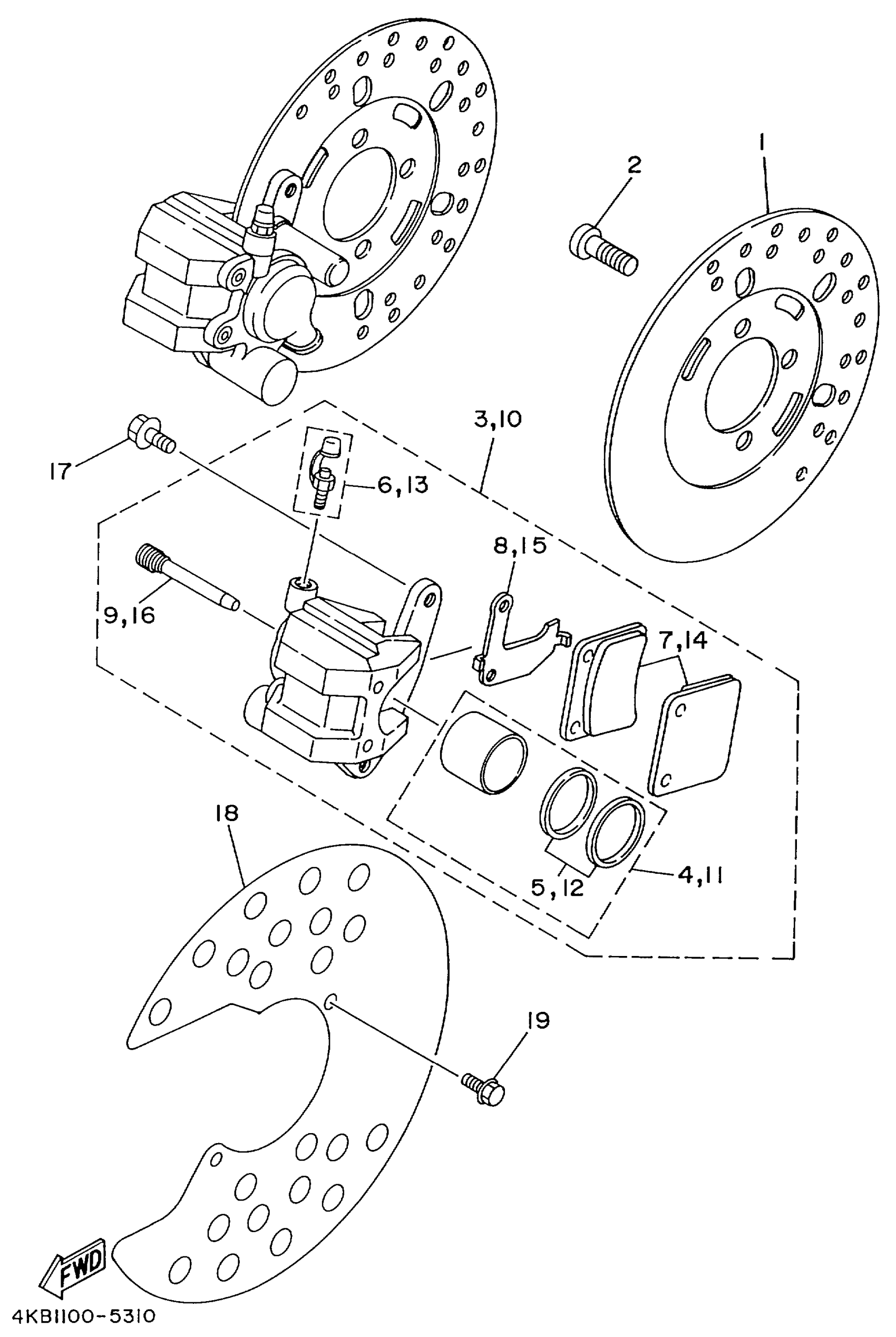

Yamaha YFM350FWBLC (BIG BEAR 4WD) 5FT1 1999 FRONT BRAKE Diagram

#

Description
Price

1

DISC, BRAKE

4KB-2582T-00-00

$254.99

2

BOLT

90109-08087-00

$8.49

3

CALIPER ASSY (LEFT)

3GD-2580T-01-00

$298.99

4

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

5

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

6

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

7

BRAKE PAD KIT

3GD-W0045-01-00

$35.99

8

SHIM, CALIPER

3GD-25827-00-00

Unavailable

9

PIN, PAD

3GD-25933-00-00

$28.99

10

CALIPER ASSY (RIGHT)

3GD-2580U-01-00

$298.99

11

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

12

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

13

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

14

BRAKE PAD KIT

3GD-W0045-01-00

$35.99

15

SHIM, CALIPER

3GD-25828-00-00

$4.42

16

PIN, PAD

3GD-25933-00-00

$28.99

17

BOLT, FLANGE

95817-08014-00

Unavailable

18

RING, WHEEL 1 (LEFT)

4KB-2514A-01-00

Unavailable

19

BOLT, FLANGE

95817-06012-00

Unavailable
