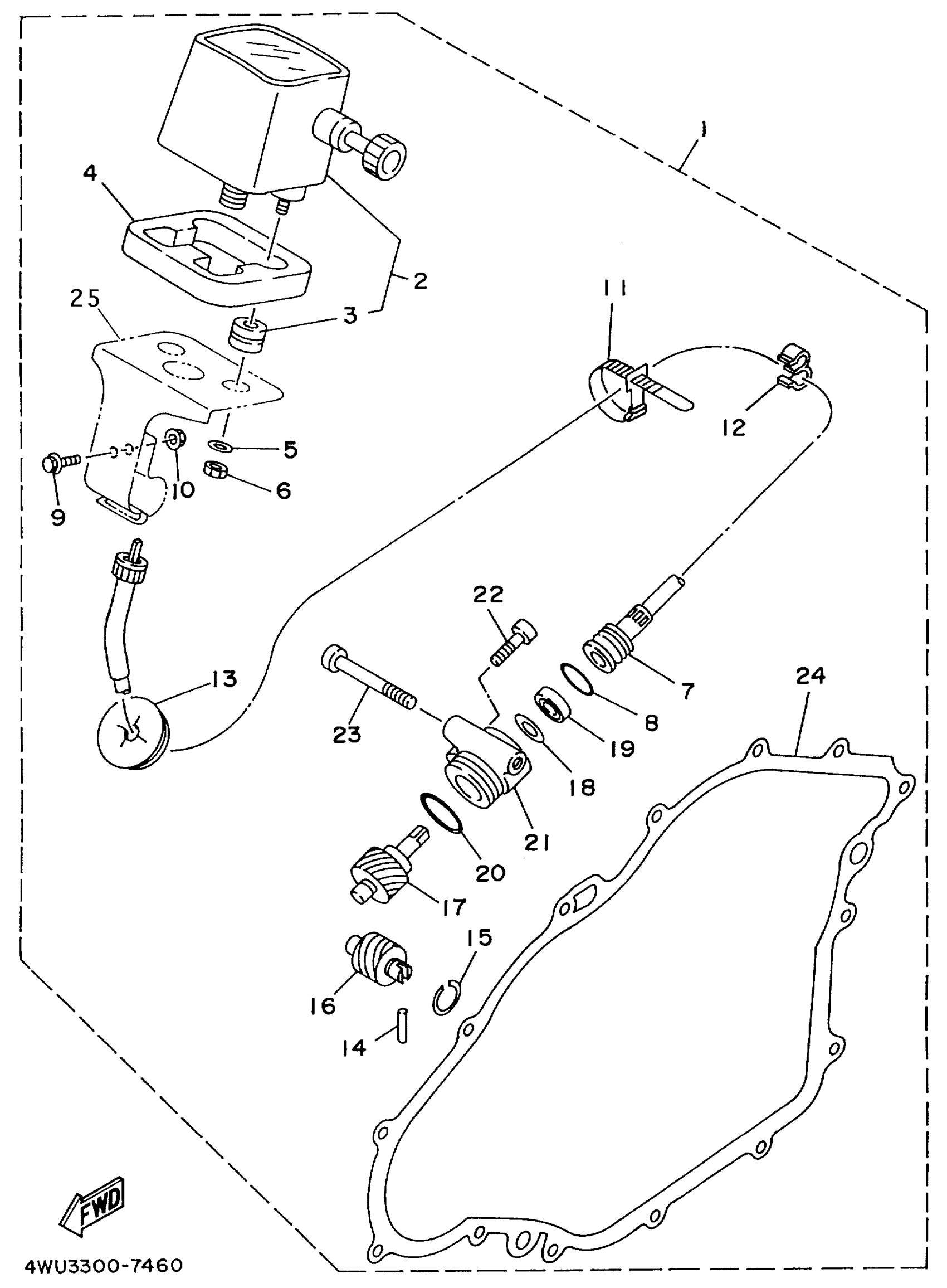

Yamaha YFM350FWBLC (BIG BEAR 4WD) 5FT1 1999 ALTERNATE METER Diagram

#

Description
Price

1

KIT WITHOUT MOUNT

4WU-W0081-00-00

Unavailable

1

SPEEDOMETER KIT WITH MOUNT

4WU-W0081-00-KT

Unavailable

2

. SPEEDOMETER ASSY

4KB-83500-00-00

Unavailable

3

DAMPER

3GH-83523-00-00

$6.99

4

. DAMPER

3JN-83664-00-00

Unavailable

5

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

6

NUT, HEXAGON

95317-05600-00

$2.34

7

. SPEEDOMETER CABLE ASSEMBLY

4WU-83550-00-00

Unavailable

8

O-RING (26H)

93210-14579-00

$7.49

9

BOLT, FLANGE

95817-06016-00

$2.75

10

NUT, FLANGE(4MV)

95707-06500-00

$1.23

11

BAND, SWITCH CORD

437-83936-11-00

$4.63

12

CLIP (867)

90468-15020-00

Unavailable

13

. GROMMET

90480-25461-00

Unavailable

14

PIN, DOWEL(3HN)

93603-14240-00

$2.13

15

CIRCLIP(59V)

93440-14155-00

Unavailable

16

GEAR, DRIVE

59V-17831-00-00

Unavailable

17

GEAR, DRIVEN

59V-17841-00-00

Unavailable

18

WASHER (692)

90201-12M34-00

Unavailable

19

OIL SEAL (30X)

93102-08307-00

Unavailable

20

O-RING(59V)

93210-24253-00

Unavailable

21

HOUSING, TACHOMETER GEAR

4KB-17811-00-00

Unavailable

22

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

23

SCREW, PAN

98517-06030-00

Unavailable

24

GASKET, CRANKCASE COVER 3

4KB-15462-00-00

Unavailable

25

MOUNT ONLY

4WU-83519-00-AX

Unavailable
