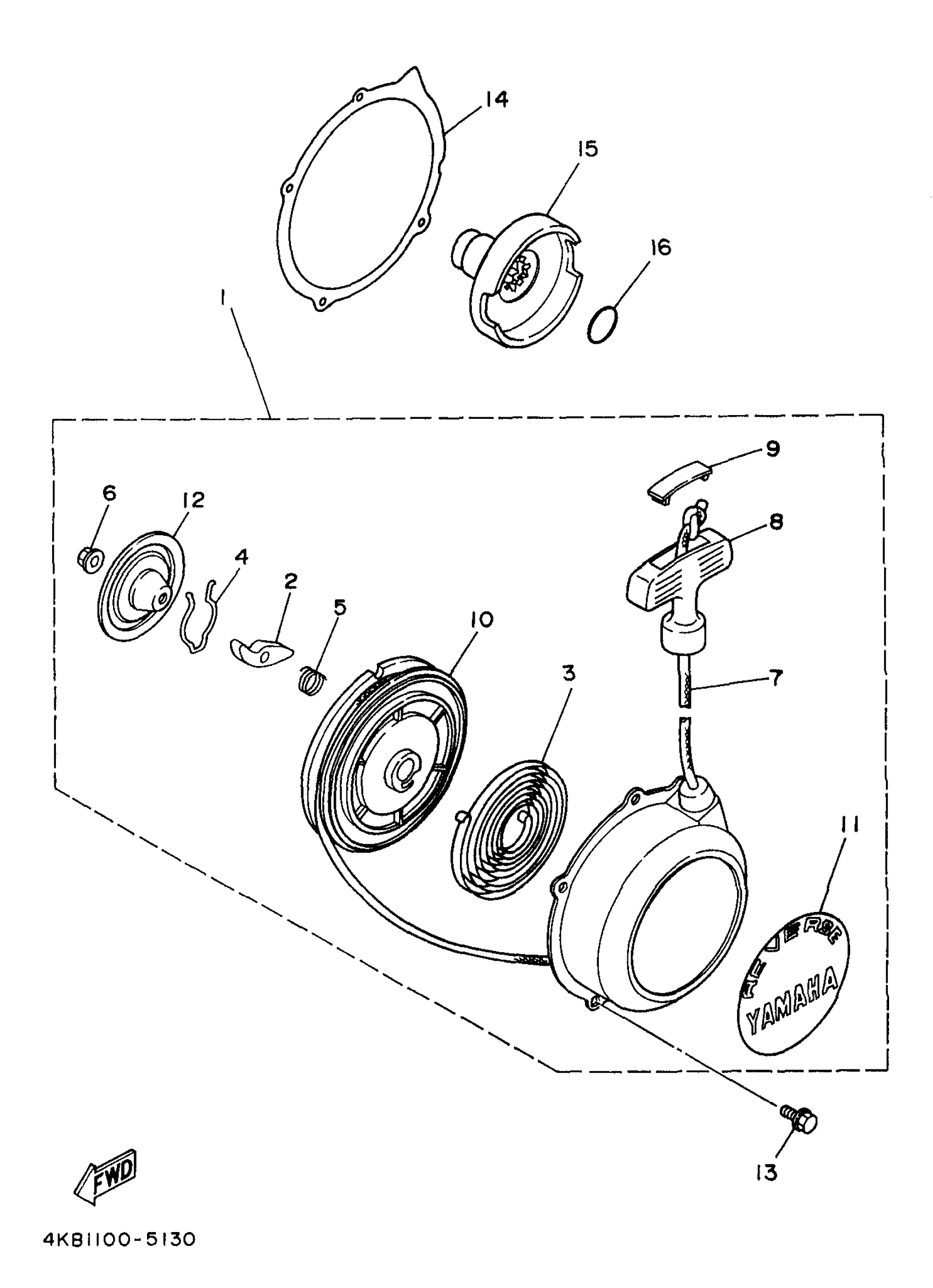

Yamaha YFM350FWBKC (BIG BEAR 4WD) 4WU50 1998 STARTER Diagram

Description

Price

STARTER ASSY

1UY-15710-00-00

Unavailable

PAWL, DRIVE

21V-15741-00-00

$17.98

SPRING, STARTER

21V-15713-00-00

$18.80

SPRING, DRIVE PLATE

21V-15715-00-00

$24.01

SPRING

21V-15767-00-00

$5.90

NUT, FLANGE(7NB)

95780-06500-00

$1.91

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$26.39

HANDLE, STARTER

3X3-15755-00-00

$23.09

CAP, KNOB

21V-15779-00-00

$6.03

DRUM, SHEAVE

24W-15714-00-00

$47.87

. EMBLEM

1UY-15443-00-00

Unavailable

PLATE, DRIVE

21V-15716-00-00

$23.49

BOLT, FLANGE(4MY)

95027-06012-00

$3.05

GASKET

3GD-15699-00-00

$22.49

PULLEY, STARTER

1UY-15723-00-00

$121.28

O-RING (538)

93210-16290-00

Unavailable
