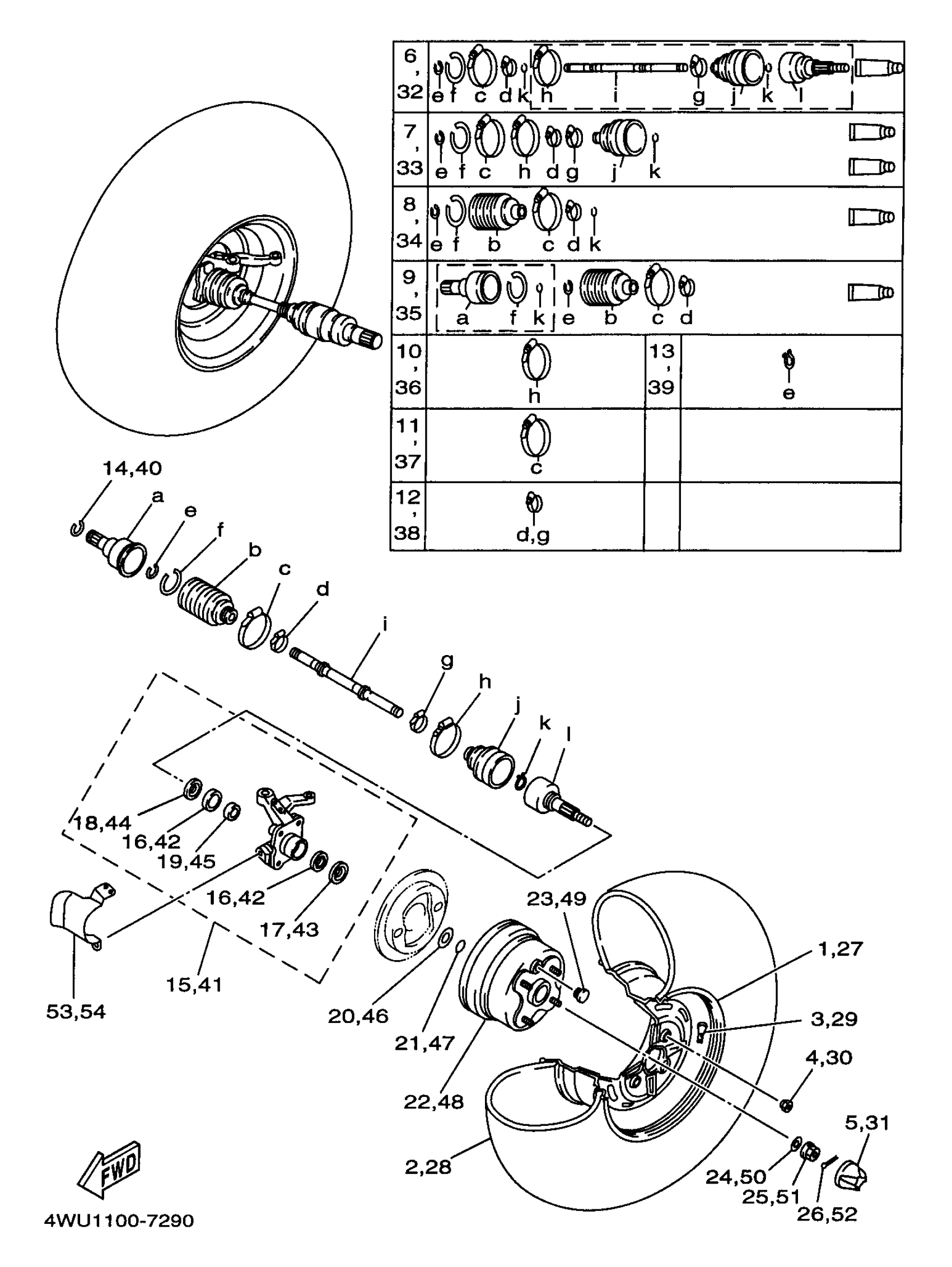

Yamaha YFM350FWBJ_MNH (BIG BEAR 4WD) 4WU1 1997 FRONT WHEEL Diagram
#
1
WHEEL COMP.
3HN-25180-00-33
Unavailable
2
AT25X8-12* DUN KT404
94108-1214E-00
Unavailable
6
BALL JOINT SET
4KB-2510F-00-00
Unavailable
9
DOUBLE OFF SET JOINT
4KB-2510J-00-00
Unavailable
11
BOOT BAND (DOUBLE OFFSET JOINT
4KB-2511H-00-00
Unavailable
15
STEERING,KNUCKLE (L)
3HN-23501-02-00
Unavailable
16
BEARING(2HR)
93306-00612-00
Unavailable
17
OIL SEAL(2HR)
93102-38383-00
Unavailable
18
OIL SEAL(3HN)
93102-38417-00
Unavailable
19
SPACER(2HR)
90560-30325-00
Unavailable
20
COLLAR(3HN)
90387-281V8-00
Unavailable
21
O-RING(22F)
93210-26662-00
Unavailable
22
HUB, FRONT
3HN-25111-02-00
Unavailable
23
CAP
2NL-25335-01-00
Unavailable
24
WASHER, PLATE(3HN)
90201-163M0-00
Unavailable
25
NUT, CASTLE
90171-16001-00
Unavailable
26
PIN, COTTER
91490-30030-00
Unavailable
27
WHEEL COMP.
3HN-25180-00-33
Unavailable
28
AT25X8-12* DUN KT404
94108-1214E-00
Unavailable
32
BALL JOINT SET
4KB-2510F-00-00
Unavailable
35
DOUBLE OFF SET JOINT
4KB-2510J-00-00
Unavailable
37
BOOT BAND (DOUBLE OFFSET JOINT
4KB-2511H-00-00
Unavailable
41
STEERING, KNUCKLE ASSY (RIGHT)
3HN-23502-02-00
Unavailable
42
BEARING(2HR)
93306-00612-00
Unavailable
43
OIL SEAL(2HR)
93102-38383-00
Unavailable
44
OIL SEAL(3HN)
93102-38417-00
Unavailable
45
SPACER(2HR)
90560-30325-00
Unavailable
46
COLLAR(3HN)
90387-281V8-00
Unavailable
47
O-RING(22F)
93210-26662-00
Unavailable
48
HUB, FRONT
3HN-25111-02-00
Unavailable
49
CAP
2NL-25335-01-00
Unavailable
50
WASHER, PLATE(3HN)
90201-163M0-00
Unavailable
51
NUT, CASTLE
90171-16001-00
Unavailable
52
PIN, COTTER
91490-30030-00
Unavailable
53
COVER, RING
4GB-2331M-00-00
Unavailable
54
COVER, RING
4GB-2331N-00-00
Unavailable
