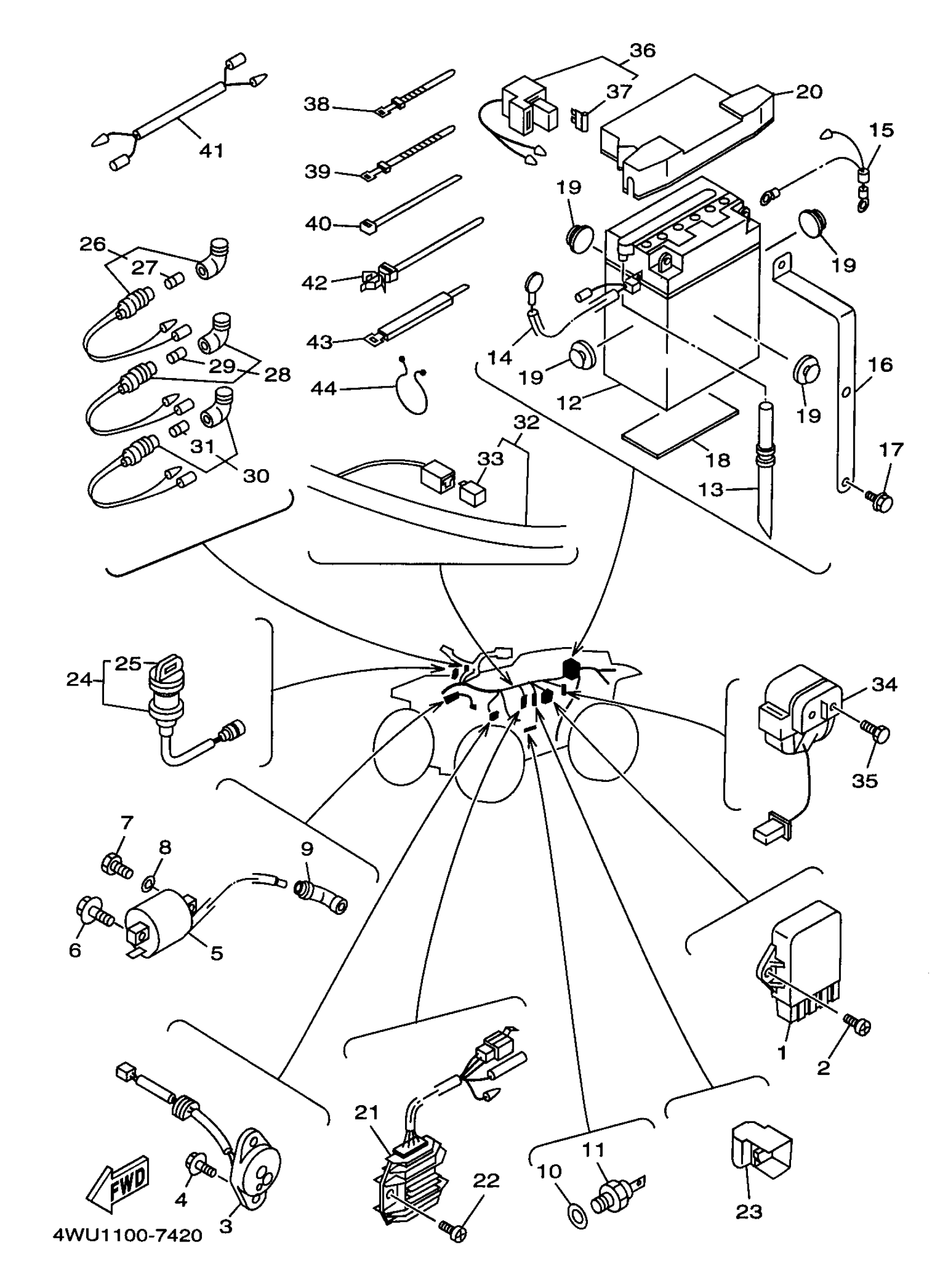

Yamaha YFM350FWBJ_MNH (BIG BEAR 4WD) 4WU1 1997 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

4KB-85540-30-00

$636.99

2

SCREW, BINDING

98907-06020-00

$8.49

3

NEUTRAL SWITCH ASSY

4KB-82540-01-00

$128.99

4

BOLT, WITH WASHER

90119-06242-00

$7.49

5

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

6

BOLT (21V)

90109-06723-00

$8.49

7

BOLT, HEXAGON

97017-06020-00

$4.06

8

WASHER(6TA)

92907-06600-00

$2.72

9

PLUG CAP ASSY

4VW-82370-00-00

$69.99

10

WASHER, PLATE 3412175700

90201-12172-00

$3.93

11

THERMO SWITCH ASSY

2HT-82560-10-00

Unavailable

12

CB14-A2 GS BATTERY

CB1-4A200-00-00

Unavailable

13

HOSE (L1500)

90445-084J0-00

$18.99

14

WIRE, PLUS LEAD

3LD-82115-00-00

Unavailable

15

WIRE, MINUS LEAD

2HR-82116-00-00

Unavailable

16

BRACKET, BATTERY

4WU-82128-00-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

Unavailable

18

SEAT, BATTERY

5Y1-82122-00-00

Unavailable

19

PAD, BATTERY

371-82121-00-00

Unavailable

20

COVER,BATTERY

4GB-82129-01-00

Unavailable

21

RECTIFIER & REGULATOR ASSY

4KB-81960-02-00

Unavailable

22

SCREW, BINDING

98907-06020-00

$8.49

23

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

24

MAIN SWITCH ASSY

4GB-82510-12-00

Unavailable

25

CAP, KEY

3HN-82579-00-00

Unavailable

26

PILOT LIGHT ASSY

24W-83530-10-00

Unavailable

27

BULB (12V3.4W)

123-83516-21-XX

Unavailable

28

PILOT LIGHT ASSY

52G-83530-10-00

Unavailable

29

BULB (12V3.4W)

123-83516-21-XX

Unavailable

30

PILOT LIGHT ASSY

2HR-83530-01-00

Unavailable

31

BULB (12V3.4W)

123-83516-21-XX

Unavailable

32

WIRE HARNESS ASSY

4WU-82590-10-00

Unavailable

33

DIODE ASSY

3WP-81980-00-00

Unavailable

34

STARTER RELAY ASSY (MS5E-541)

4KB-81940-01-00

Unavailable

35

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

36

FUSE HOLDER ASSY

5EH-82150-00-00

Unavailable

37

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

38

BAND, SWITCH CORD

437-83936-01-00

Unavailable

39

BAND, SWITCH CORD

437-83936-11-00

Unavailable

40

BAND

80L-26397-00-00

Unavailable

41

WIRE, LEAD

59V-82541-00-00

Unavailable

42

CLAMP(2TV)

90464-10112-00

Unavailable

43

BAND

341-26397-01-00

Unavailable

44

CLAMP(3TU)

90464-23139-00

Unavailable
