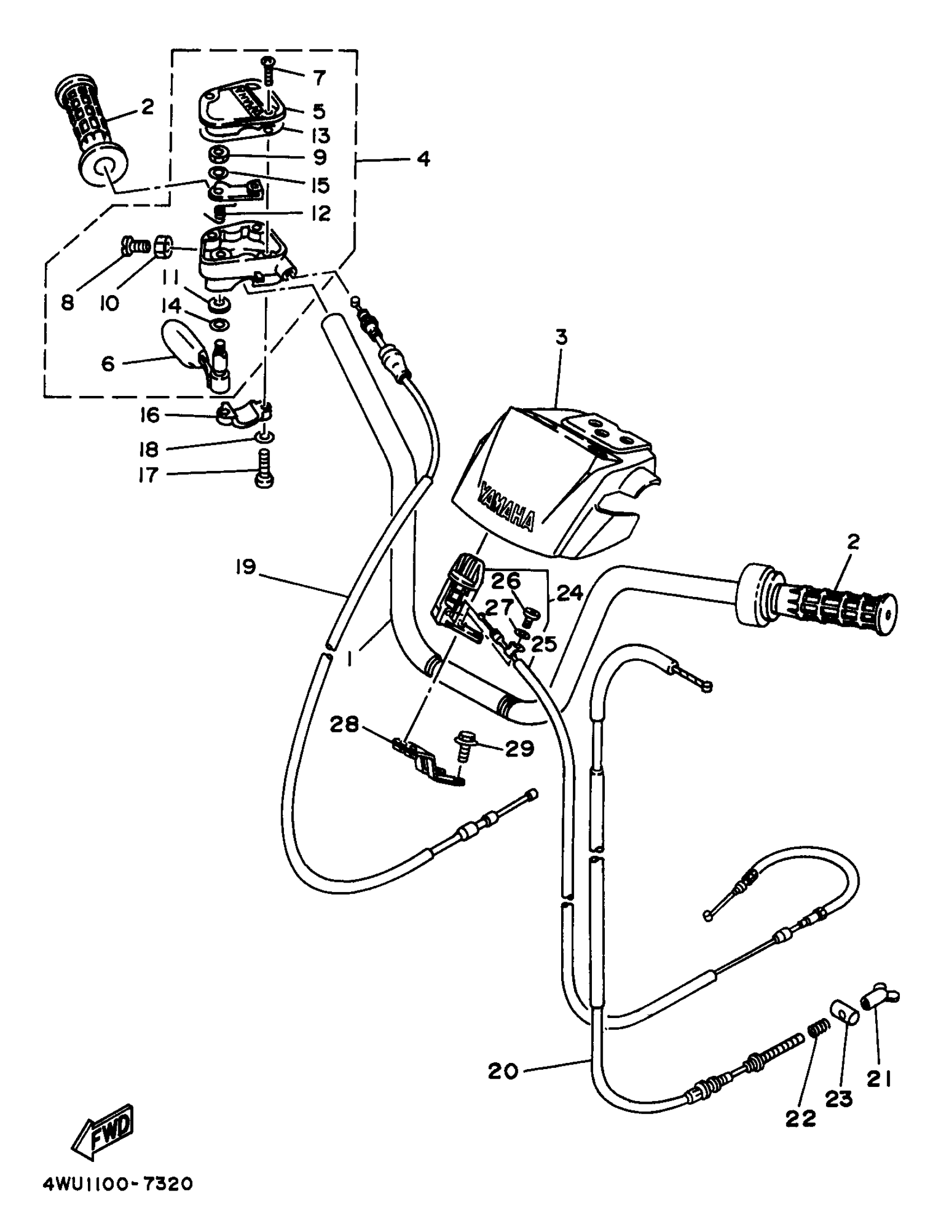

Yamaha YFM350FWBJ (BIG BEAR 4WD) 4WU1 1997 STEERING HANDLE CABLE Diagram

HANDLEBAR

3HN-26111-00-00

Unavailable

GRIP (L.H)

3GB-26241-00-00

$21.99

PROTECTOR, HANDLEBAR

5FE-26124-11-00

Unavailable

THROTTLE LEVER ASSY

4KB-26250-12-00

$122.99

. CAP, GEAR

4KB-2628F-00-00

Unavailable

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

SCREW(3HE)

90149-04278-00

$2.39

SCREW, PAN HEAD

98517-05020-00

$4.25

NUT, U

95617-05100-00

$9.49

NUT, HEXAGON SMALL

95317-05700-00

$8.49

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

SPRING

1NV-26304-00-00

$11.99

GASKET

4KB-2628G-00-00

$13.49

WASHER

1NV-26129-00-00

$6.99

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

SCREW, PAN HEAD

98517-05020-00

$4.25

WASHER(3SX)

92907-05100-00

Unavailable

CABLE, THROTTLE 1

4WU-26311-00-00

Unavailable

CABLE, BRAKE

4WU-26341-00-00

Unavailable

NUT, AJUSTING

20E-26343-00-00

Unavailable

SPRING, COMPRESSION (29U)

90501-10782-00

Unavailable

PIN 1562723700

90249-12008-00

Unavailable

REV. LEVER ASSEMBLY.

4WU-26150-00-00

Unavailable

. CABLE, CONTROL 1

4WU-2637E-00-00

Unavailable

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

WASHER(1RW)

92907-05600-00

Unavailable

BRACKET

4KB-2612E-00-00

Unavailable

BOLT, FLANGE

95817-06012-00

Unavailable
