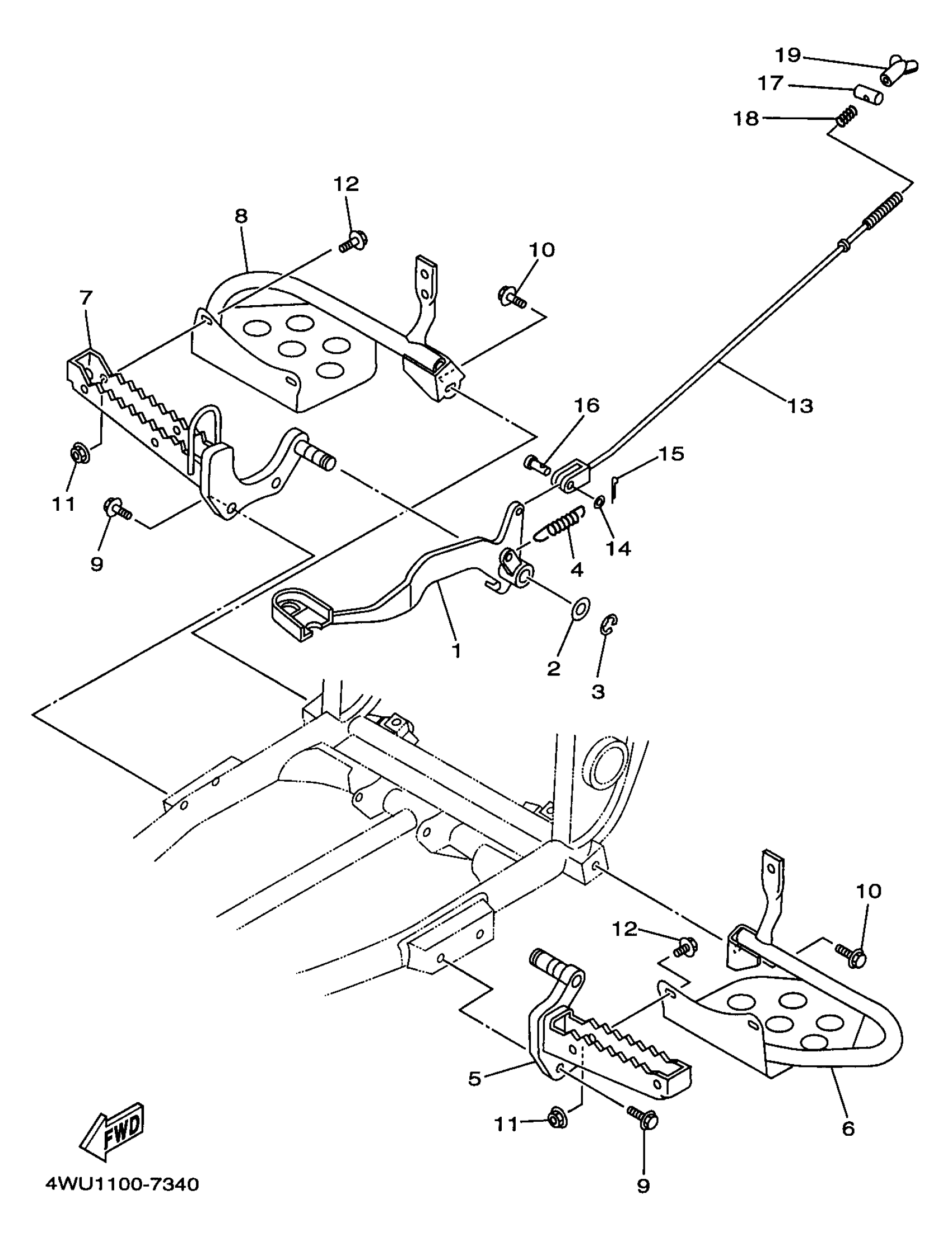

Yamaha YFM350FWBJ (BIG BEAR 4WD) 4WU1 1997 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

4WU-27211-10-00

Unavailable

2

WASHER, PLATE (3X3)

90201-15797-00

$9.49

3

CIRCLIP (122)

93430-12008-00

$8.49

4

SPRING, TENSION (29U)

90506-16318-00

$10.49

5

FOOTREST 1

4KB-27411-00-00

Unavailable

6

PLATE 1

4WU-27445-00-00

Unavailable

7

FOOTREST 2

4WU-27421-00-00

Unavailable

8

PLATE 2

4WU-27446-00-00

Unavailable

9

BOLT, FLANGE

95817-10020-00

$8.49

10

BOLT, FLANGE

95817-08012-00

$5.49

11

NUT, FLANGE(JN5)

95707-08500-00

$3.13

12

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

13

ROD, BRAKE

4WU-27231-00-00

Unavailable

14

WASHER(6TA)

92907-06200-00

$8.49

15

PIN, COTTER (648)

91490-20015-00

$2.20

16

PIN, CLEVIS (3X3)

90240-06076-00

Unavailable

17

PIN 1562723700

90249-12008-00

Unavailable

18

SPRING, (180-27236-00)

90501-10245-00

Unavailable

19

NUT, AJUSTING

20E-26343-00-00

Unavailable
