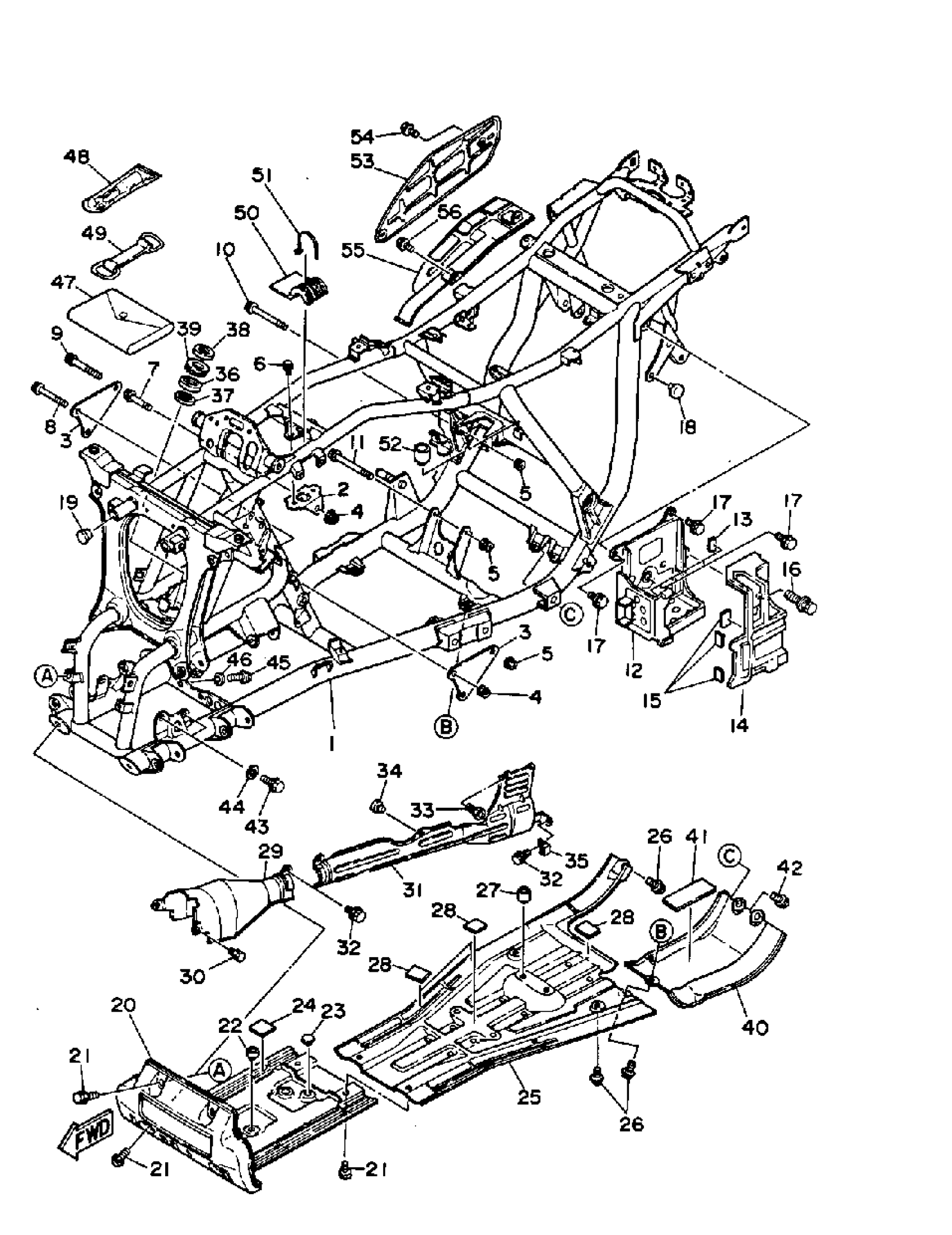

Yamaha YFM350FWB_MNH (BIG BEAR 4WD) 3HN6 1991 FRAME Diagram

#

Description
Price

1

FRAME

3HN-21110-20-33

Unavailable

2

STAY,ENGINE 2

2HR-21315-02-00

Unavailable

3

STAY,ENGINE 3

3HN-21316-00-00

Unavailable

4

NUT, SELF-LOCKING

90185-08169-00

$8.49

5

NUT, SELF-LOCKING

90185-10170-00

$9.49

6

BOLT, FLANGE

95817-08012-00

$5.49

7

BOLT, FLANGE

95817-08055-00

$4.21

8

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

9

B0LT,FLANGE (1KT)

90105-10323-00

$5.60

10

BOLT, WASHER BASED(2NL)

90105-10480-00

$8.49

11

BOLT, WASHER BASED(1KT)

90105-10409-00

Unavailable

12

BOX

1YW-21170-01-00

Unavailable

13

COVER 2

3FC-2139R-00-00

Unavailable

14

BOX

24W-21245-00-00

Unavailable

15

COVER 2

3FC-2139R-00-00

Unavailable

16

BOLT, WITH WASHER

90119-06152-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

Unavailable

18

STOPPER

30X-24768-00-00

Unavailable

19

PLUG (5R2)

90338-18122-00

Unavailable

20

GUARD, ENGINE 1

2HR-2147A-00-00

Unavailable

21

BOLT, FLANGE

95817-08012-00

$5.49

22

STOPPER, MAIN STAND

116-27114-00-00

Unavailable

23

STOPPER, MAIN STAND

128-27114-00-00

Unavailable

24

DAMPER, LOCATING 1

27V-24181-00-00

Unavailable

25

PROTECTOR, ENGINE

99999-02254-00

Unavailable

26

BOLT, FLANGE

95817-08012-00

$5.49

27

STOPPER, MAIN STAND

1J7-27114-00-00

Unavailable

28

DAMPER, LOCATING 1

27V-24181-00-00

Unavailable

29

COVER, SHAFT 1

3HN-2147J-10-00

Unavailable

30

BOLT, FLANGE

95817-06012-00

Unavailable

31

COVER, SHAFT 2

3HN-2147K-01-00

Unavailable

32

BOLT, FLANGE

95817-06012-00

Unavailable

33

BOLT,SOCKET

91314-06050-00

Unavailable

34

DAMPER, LOCATING 1

22W-24181-00-00

Unavailable

35

CLAMP

90465-06176-00

Unavailable

36

BEARING

93306-20348-00

Unavailable

37

OIL SEAL (25X36X8-334)

93102-25099-00

Unavailable

38

OIL SEAL (25X44X6-810)

93102-25081-00

Unavailable

39

HOLDER, BEARING

2GU-23872-00-00

Unavailable

40

STAY, TRANSFER

2HR-2147H-00-00

Unavailable

41

DAMPER 2

38V-21486-00-00

Unavailable

42

BOLT, FLANGE

95817-08012-00

$5.49

43

BOLT(6TD)

97017-10025-00

Unavailable

44

WASHER, PLATE

92990-10600-00

Unavailable

45

BOLT(3HN)

97017-08045-00

Unavailable

46

.. WASHER, PLATE

92990-08600-00

Unavailable

47

TOOL KIT

3GH-28100-00-00

Unavailable

48

GAUGE, AIR

1NV-2811A-01-00

Unavailable

49

BAND, TOOL

21V-21376-00-00

Unavailable

50

DAMPER, LOCATING 1

2HR-24181-00-00

Unavailable

51

BAND

1UA-82591-00-00

Unavailable

52

STOPPER, MAIN STAND

1J7-27114-00-00

Unavailable

53

COVER, REAR FENDER 2

2HR-2163E-00-00

Unavailable

54

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

55

COVER, REAR FENDER 3

2HR-2163F-01-00

Unavailable

56

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable
