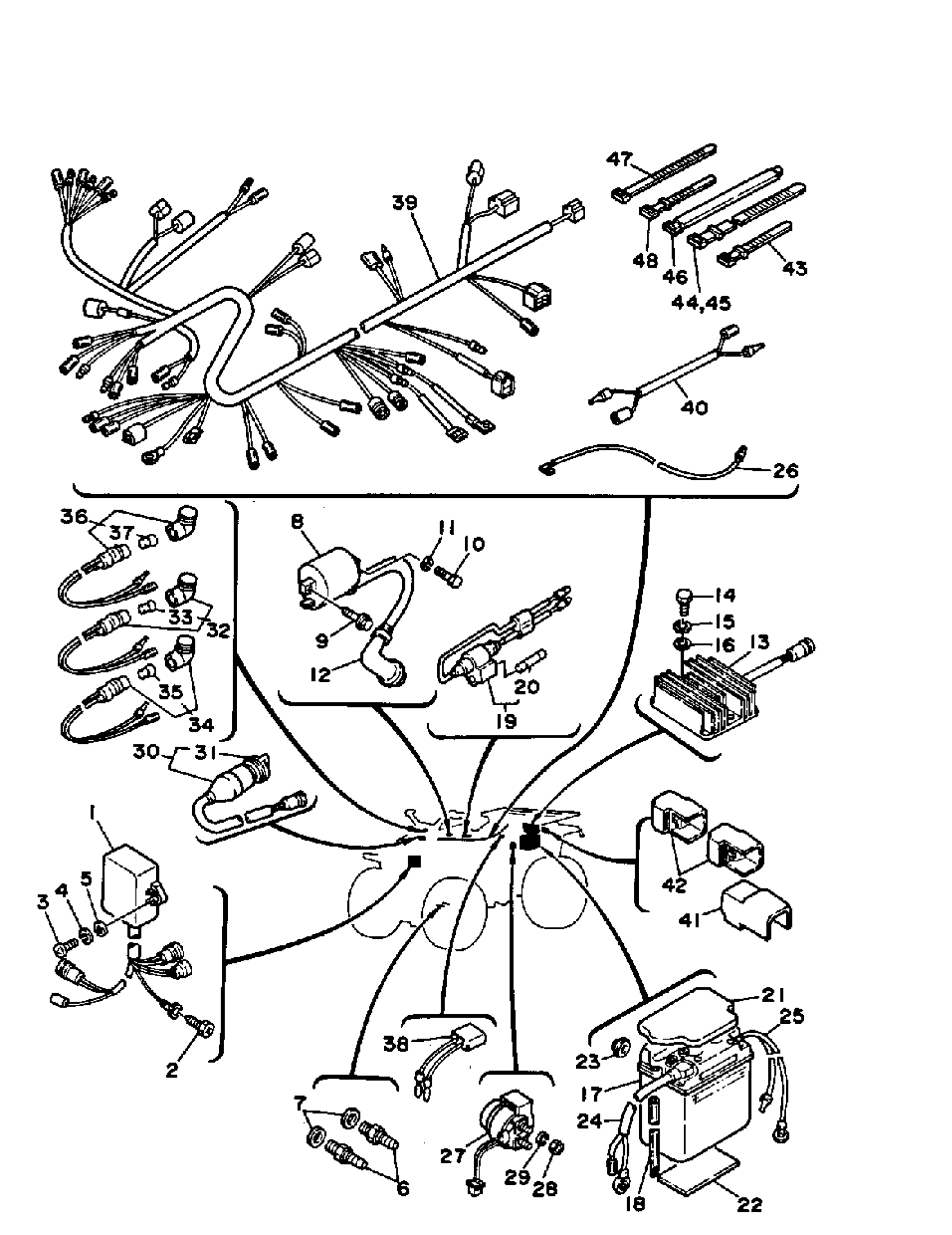

Yamaha YFM350FWB_MNH (BIG BEAR 4WD) 3HN6 1991 ELECTRICAL 1 Diagram
#
1
C.D.I. UNIT ASSEMBLY
3HN-85540-10-00
Unavailable
4
WASHER, SPRING
92995-06100-00
Unavailable
11
WASHER, SPRING
92995-06100-00
Unavailable
13
RECTIFIER & REGULATOR ASSEMBLY
59V-81960-A0-00
Unavailable
15
WASHER, SPRING
92995-06100-00
Unavailable
17
CB14-A2 GS BATTERY
CB1-4A200-00-00
Unavailable
18
HOSE (L1500)
90445-084J0-00
Unavailable
19
FUSE HOLDER ASSY
2NL-82150-00-00
Unavailable
20
FUSE (30A)
705-82151-01-00
Unavailable
21
COVER, BATTERY
24W-82129-00-00
Unavailable
22
SEAT, BATTERY
51Y-82122-00-00
Unavailable
23
PAD, BATTERY
371-82121-00-00
Unavailable
24
WIRE, PLUS LEAD
3LD-82115-00-00
Unavailable
25
WIRE, MINUS LEAD
2HR-82116-00-00
Unavailable
26
WIRE, LEAD
3HN-82541-00-00
Unavailable
27
STARTER RELAY ASSY (MS5D-611)
4KD-81940-00-00
Unavailable
28
NUT(650)
95380-06700-00
Unavailable
29
WASHER, SPRING
92995-06100-00
Unavailable
30
MAIN SWITCH ASSY
2FJ-82510-09-00
Unavailable
31
CAP, KEY
24W-82579-00-00
Unavailable
32
PILOT LIGHT ASSY
24W-83530-10-00
Unavailable
33
BULB (12V-3.4W)
123-83516-21-00
Unavailable
34
PILOT LIGHT ASSY
52G-83530-10-00
Unavailable
35
BULB (12V-3.4W)
123-83516-21-00
Unavailable
36
PILOT LIGHT ASSEMBLY
3FA-83530-10-00
Unavailable
37
BULB (12V-3.4W)
123-83516-21-00
Unavailable
38
CHECKER, PILOT LAMP
38W-85774-00-00
Unavailable
39
WIRE HARNESS ASSY
3HN-82590-11-00
Unavailable
40
WIRE, LEAD
59V-82541-00-00
Unavailable
41
RELAY ASSY (1UY-92)
1UY-81950-92-00
Unavailable
42
RELAY ASSY (29U-93)
29U-81950-93-00
Unavailable
43
BAND, SWITCH CORD
437-83936-01-00
Unavailable
44
BAND, SWITCH CORD
437-83936-11-00
Unavailable
45
BAND, SWITCH CORD
437-83936-11-00
Unavailable
46
BAND
341-26397-01-00
Unavailable
47
CLAMP
1UY-82591-00-00
Unavailable
48
BAND, SWITCH CORD
437-83936-01-00
Unavailable
