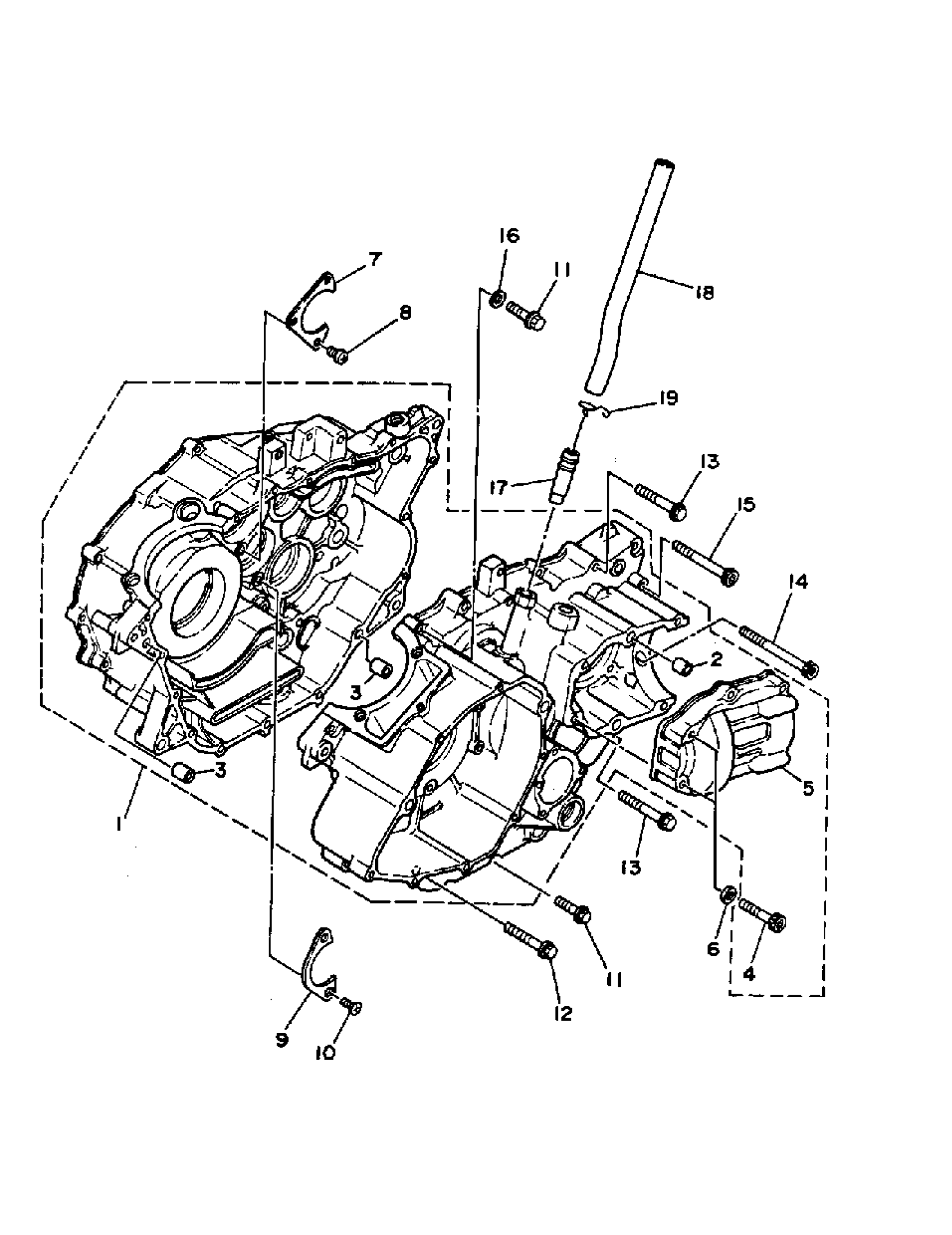

Yamaha YFM350FWB_MNH (BIG BEAR 4WD) 3HN6 1991 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

1YW-15100-07-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT, SOCKET

91314-06040-00

$8.49

5

COVER,GENERATOR

1YW-15415-29-00

Unavailable

6

GASKET 256113960000

90430-06014-00

Unavailable

7

PLATE, BEARING COVER

3R4-15381-00-00

$4.68

8

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

9

PLATE, BEARING COVER

1UY-15383-00-00

Unavailable

10

SCREW, FLAT

98704-06016-00

Unavailable

11

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

12

BOLT, SMALL FLANGE

95027-06050-00

$2.55

13

BOLT, SMALL FLANGE

95027-06060-00

$2.87

14

BOLT, SOCKET

91314-06090-00

$8.49

15

BOLT, SOCKET

91314-06070-00

$8.49

16

GASKET 256113960000

90430-06014-00

Unavailable

17

PIPE, BREATHER 2

371-11167-01-00

Unavailable

18

PIPE, BREATHER 1

2HR-11166-00-00

Unavailable

19

CLIP (371)

90467-14015-00

Unavailable
