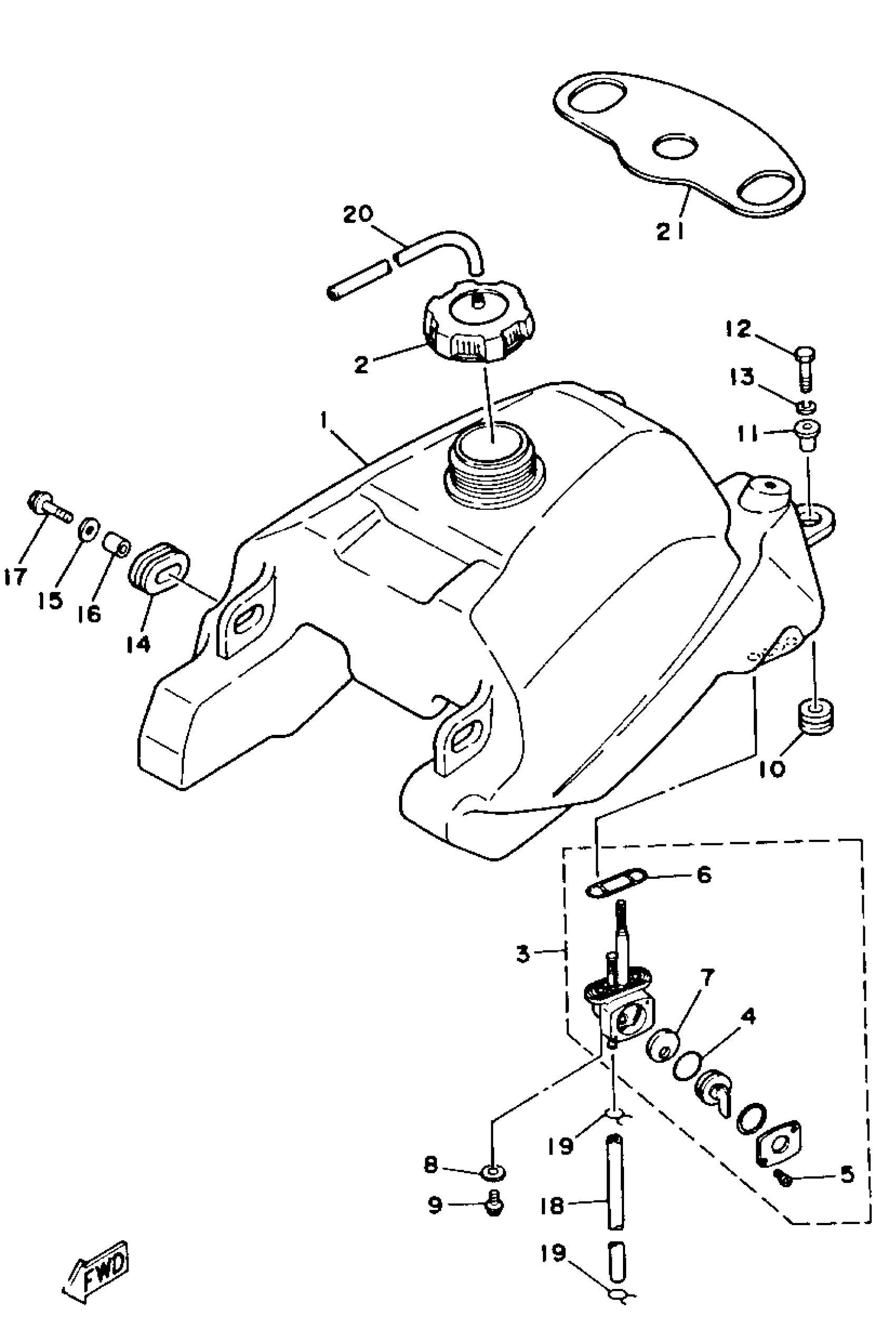

Yamaha YFM350FWB (BIG BEAR 4WD) 3HN6 1991 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

2HR-24110-01-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$50.28

3

FUEL COCK ASSY 1

2HR-24500-02-00

$49.17

4

SEAL, COCK

3AJ-24534-01-00

$11.99

5

SCREW, PAN HEAD (J10)

98580-03008-00

$2.30

6

O-RING

4X8-24512-00-00

$6.73

7

VALVE PACKING

3AC-24523-00-00

$11.05

8

WASHER, PLATE(3MB)

90202-05187-00

$1.49

9

SCREW 256241430000

90149-06011-00

$1.56

10

GROMMET (4V1)

90480-18290-00

$6.67

11

COLLAR (36R)

90387-066J1-00

$6.53

12

BOLT, HEXAGON

97017-06030-00

$2.86

13

WASHER, SPRING

92995-06100-00

$2.83

14

GROMMET(38W)

90480-01400-00

$9.59

15

WASHER, PLATE

90201-06090-00

$4.92

16

COLLAR (1T2)

90387-07598-00

Unavailable

17

BOLT, WITH WASHER (24X)

90119-06073-00

Unavailable

18

HOSE (L400)

90445-116K9-00

Unavailable

19

CLIP

90467-100A1-00

Unavailable

20

HOSE (L420)

90445-092K1-00

Unavailable

21

DAMPER, PLATE 1

2HR-2414H-00-00

Unavailable
