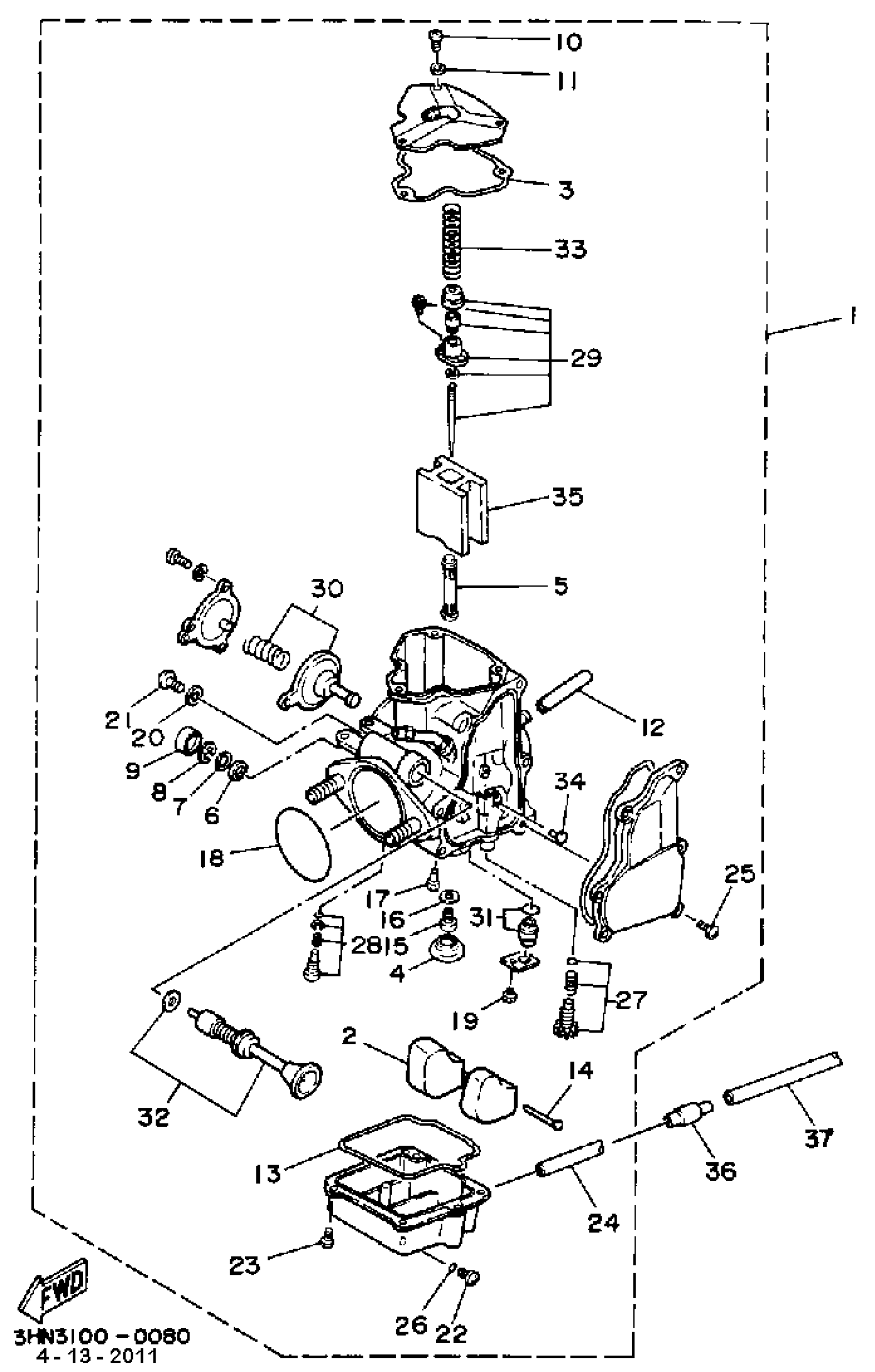

Yamaha YFM350FWB (BIG BEAR 4WD) 3HN6 1991 CARBURETOR Diagram
#
Description
Price
1
CARBURETOR ASSEMBLY 1
2HR-14101-01-00
Unavailable
5
NOZZLE, MAIN
1YW-14141-28-00
Unavailable
6
SEAL
2A2-14997-00-00
Unavailable
7
GASKET
22F-14126-00-00
Unavailable
9
CAP
36X-14169-00-00
Unavailable
16
WASHER,MAIN JET
137-14153-00-00
Unavailable
17
JET, PILOT (# 45)
4G0-14142-45-00
Unavailable
18
O-RING
1YW-14147-00-00
Unavailable
19
SCREW
1FN-14565-00-00
Unavailable
20
. WASHER
59V-14962-00-00
Unavailable
21
SCREW, PAN HEAD(6A3)
97885-06008-00
Unavailable
22
SCREW
2L1-14191-00-00
Unavailable
23
SCREW, PAN HEAD
98511-04012-00
Unavailable
25
SCREW, PAN HEAD
98517-04012-00
Unavailable
26
O-RING
214-14147-00-00
Unavailable
27
THROTTLE SCREW SET
2VA-14103-00-00
Unavailable
28
PILOT SCREW SET
21V-14105-00-00
Unavailable
29
NEEDLE SET
2HR-1490J-01-00
Unavailable
30
DIAPHRAGM SET, 5
3LD-1490H-00-00
Unavailable
31
NEEDLE VALVE SET
1UY-14107-25-00
Unavailable
32
PLUNGER, STARTER
1UY-14993-00-00
Unavailable
33
. SPRING, THROTTLE VALVE
2HR-14131-00-00
Unavailable
34
GUIDE, CABLE
1UY-14155-00-00
Unavailable
35
. VALVE, THROTTLE 1
2HR-14112-00-00
Unavailable
36
PIPE 2,OVERFLOW
24W-14193-00-00
Unavailable
37
TUBE, FLEXIBLE(3NV)
91A21-07020-00
Unavailable
