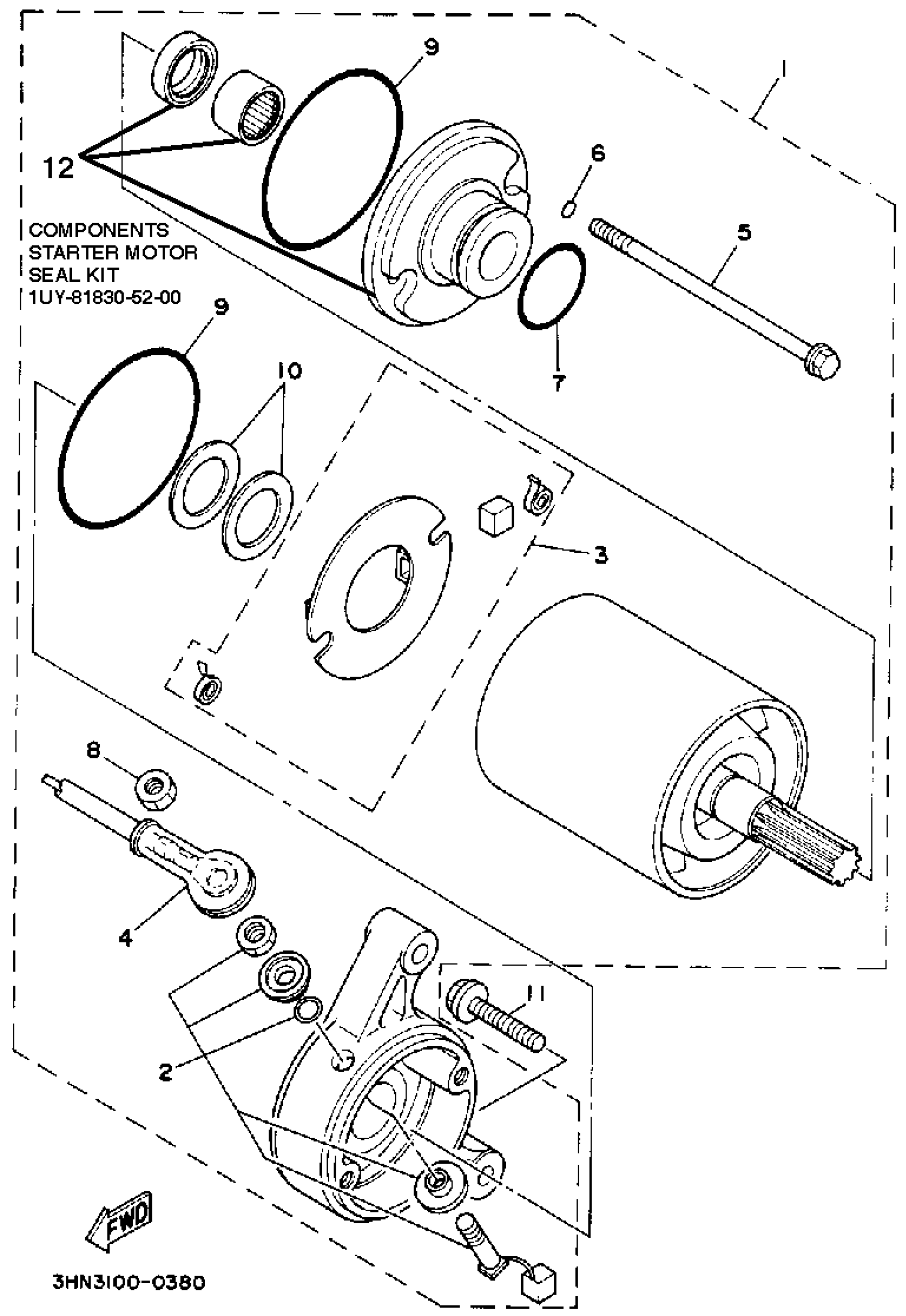

Yamaha YFM350FWA (BIG BEAR 4WD) 3HN3 1990 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR UNIT

1UY-81890-00-00

Unavailable

2

TERMINAL SET

1UY-81818-50-00

Unavailable

3

BRUSH HOLDER ASSY

8L6-81840-51-00

$58.06

4

CORD, STARTER MOTOR

2HR-81815-52-00

Unavailable

5

BOLT

3GD-81826-00-00

$14.45

6

O-RING

8L6-81847-50-00

$3.00

7

O-RING (437)

93210-24235-00

$5.34

8

NUT, HEXAGON

95380-06600-00

$4.11

9

O-RING

4H7-81844-00-00

Unavailable

10

WASHER 1

4H7-81843-50-00

$3.68

11

BOLT, FLANGE(4AS)

95024-06030-00

$5.75

12

STARTER MOTOR SEAL KIT

1UY-81830-52-00

Unavailable
