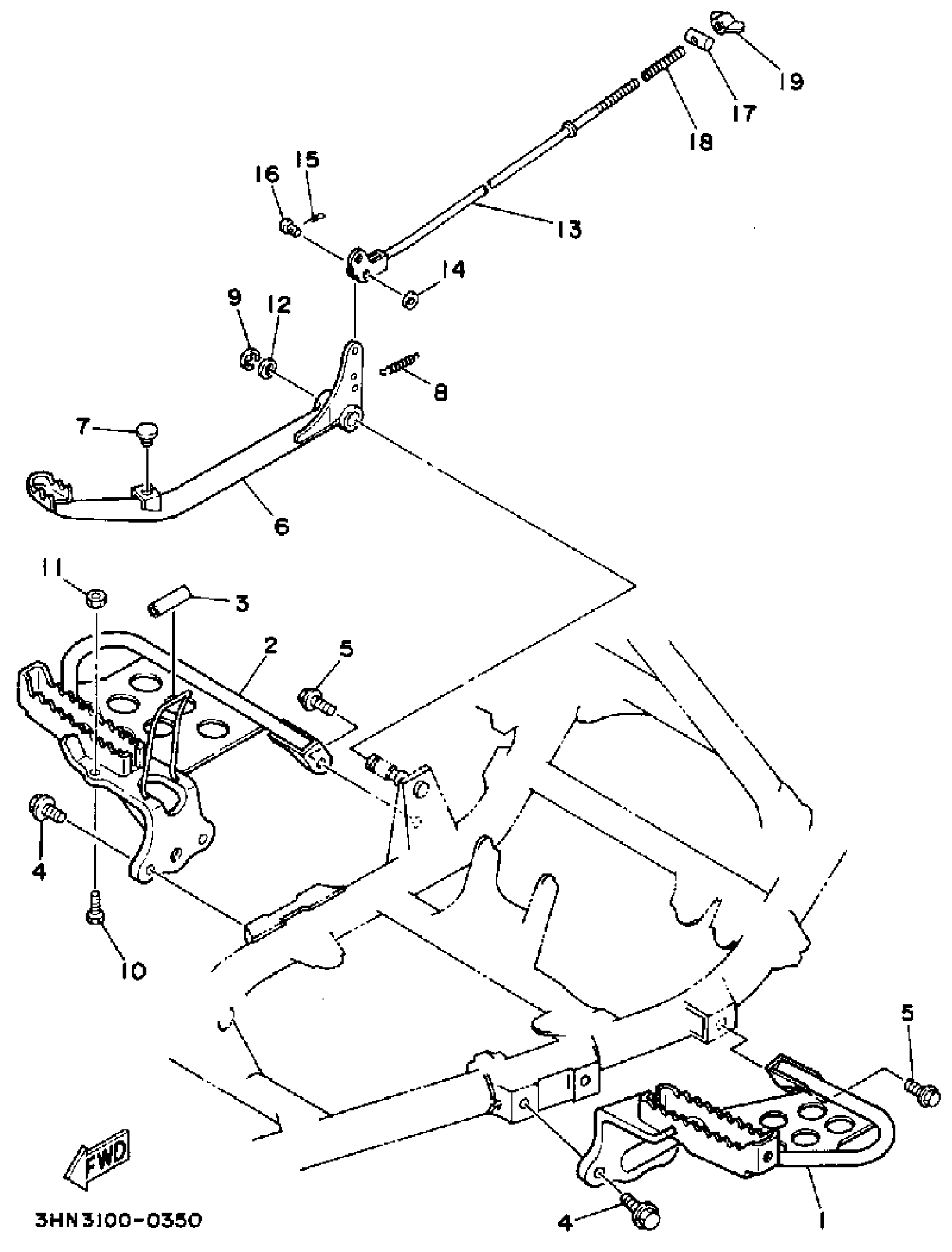

Yamaha YFM350FWA (BIG BEAR 4WD) 3HN3 1990 STAND-FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

3HN-27411-20-00

Unavailable

2

FOOTREST 2

3HN-27421-20-00

Unavailable

3

STOPPER

2HR-2743E-00-00

Unavailable

4

BOLT, FLANGE

95817-10020-00

$8.49

5

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

6

PEDAL, BRAKE

2HR-27211-00-00

Unavailable

7

STOPPER, MAIN STAND

128-27114-00-00

$7.99

8

SPRING, TENSION (29U)

90506-16318-00

$10.49

9

CIRCLIP (122)

93430-12008-00

$8.49

10

BOLT

90101-06595-00

Unavailable

11

NUT, HEXAGON

95380-06600-00

Unavailable

12

WASHER, PLATE (3X3)

90201-15797-00

$9.49

13

ROD, BRAKE

3HN-27231-00-00

Unavailable

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

PIN, COTTER

91490-20025-00

$1.99

16

PIN, CLEVIS (3X3)

90240-06076-00

Unavailable

17

PIN 1562723700

90249-12008-00

Unavailable

18

SPRING, (180-27236-00)

90501-10245-00

Unavailable

19

NUT, AJUSTING

20E-26343-00-00

Unavailable
