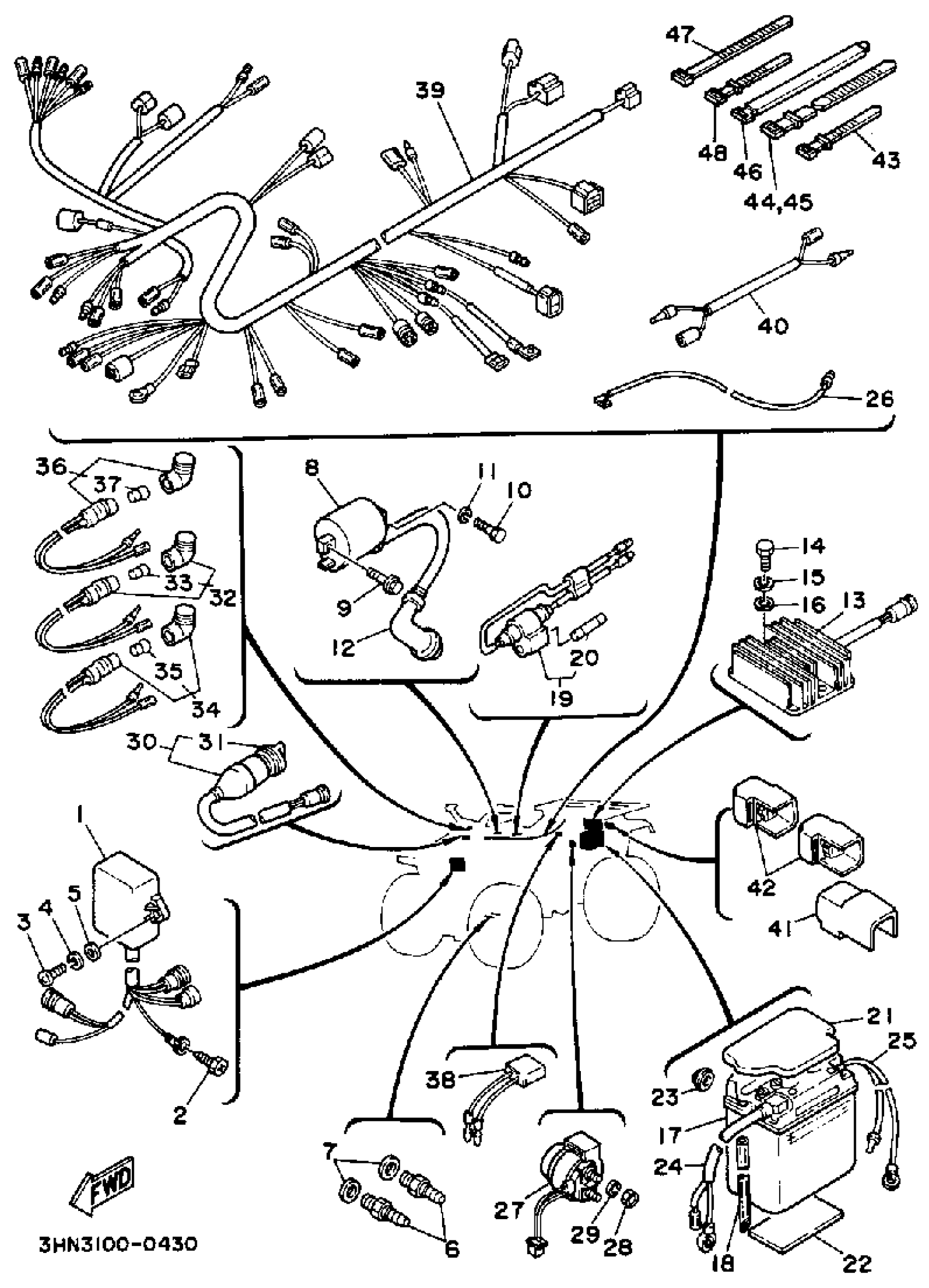

Yamaha YFM350FWA (BIG BEAR 4WD) 3HN3 1990 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSEMBLY

3HN-85540-10-00

Unavailable

2

SCREW, HEXAGON (18V)

90153-06044-00

$1.49

3

SCREW PAN HEAD

98580-06020-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

7

GASKET (5R6)

90430-10171-00

$3.18

8

IGNITION COIL ASSY

3GD-82310-10-00

$153.99

9

BOLT (21V)

90109-06723-00

$8.49

10

BOLT, HEXAGON

97017-06020-00

$4.06

11

WASHER, SPRING

92995-06100-00

Unavailable

12

PLUG CAP ASSY

4VW-82370-00-00

$69.99

13

RECTIFIER & REGULATOR ASSEMBLY

59V-81960-A0-00

Unavailable

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

15

WASHER, SPRING

92995-06100-00

Unavailable

16

WASHER, PLAIN (646)

92990-06600-00

$2.80

17

CB14-A2 GS BATTERY

CB1-4A200-00-00

Unavailable

18

HOSE (L1500)

90445-084J0-00

Unavailable

19

FUSE HOLDER ASSY

2NL-82150-00-00

Unavailable

20

FUSE (30A)

705-82151-01-00

Unavailable

21

COVER, BATTERY

24W-82129-00-00

Unavailable

22

SEAT, BATTERY

51Y-82122-00-00

Unavailable

23

PAD, BATTERY

371-82121-00-00

Unavailable

24

WIRE, PLUS LEAD

3LD-82115-00-00

Unavailable

25

WIRE, MINUS LEAD

2HR-82116-00-00

Unavailable

26

WIRE, LEAD

3HN-82541-00-00

Unavailable

27

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

Unavailable

28

NUT(650)

95380-06700-00

Unavailable

29

WASHER, SPRING

92995-06100-00

Unavailable

30

MAIN SWITCH ASSY

2FJ-82510-09-00

Unavailable

31

CAP, KEY

24W-82579-00-00

Unavailable

32

PILOT LIGHT ASSY

24W-83530-10-00

Unavailable

33

BULB (12V-3.4W)

123-83516-21-00

Unavailable

34

PILOT LIGHT ASSY

52G-83530-10-00

Unavailable

35

BULB (12V-3.4W)

123-83516-21-00

Unavailable

36

PILOT LIGHT ASSEMBLY

3FA-83530-10-00

Unavailable

37

BULB (12V-3.4W)

123-83516-21-00

Unavailable

38

CHECKER, PILOT LAMP

38W-85774-00-00

Unavailable

39

WIRE HARNESS ASSY

3HN-82590-11-00

Unavailable

40

WIRE, LEAD

59V-82541-00-00

Unavailable

41

RELAY ASSY (1UY-92)

1UY-81950-92-00

Unavailable

42

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

43

BAND, SWITCH CORD

437-83936-01-00

Unavailable

44

BAND, SWITCH CORD

437-83936-11-00

Unavailable

45

BAND, SWITCH CORD

437-83936-11-00

Unavailable

46

BAND

341-26397-01-00

Unavailable

47

CLAMP

1UY-82591-00-00

Unavailable

48

BAND, SWITCH CORD

437-83936-01-00

Unavailable
