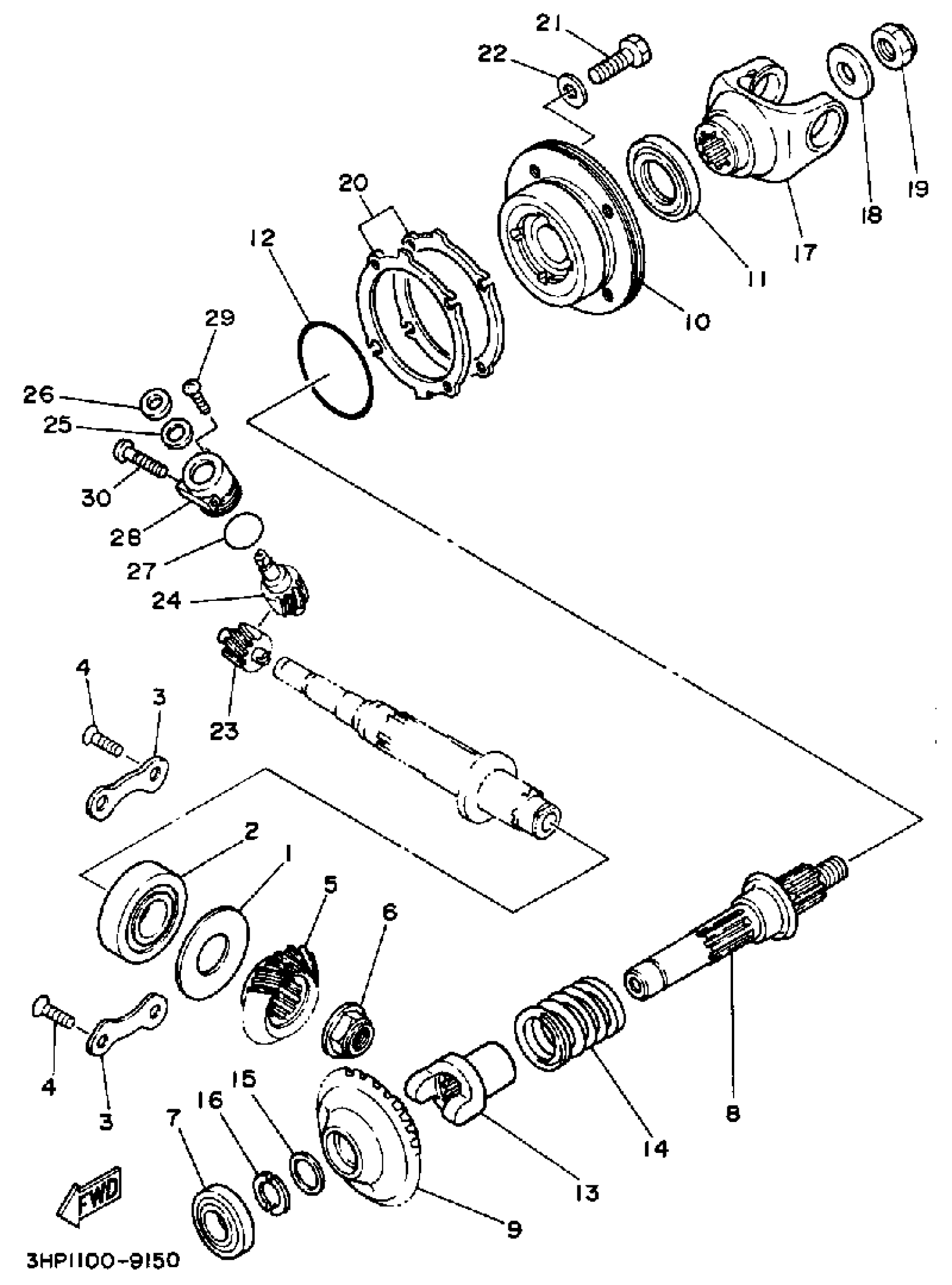

Yamaha YFM350ERW (MOTO-4) 1989 MIDDLE DRIVE GEAR Diagram
#
5
PINION, DRIVE
1YW-17522-00-00
Unavailable
8
SHAFT, MIDDLE DRIVEN
1YW-17553-00-00
Unavailable
9
PINION, DRIVEN
1YW-17552-00-00
Unavailable
10
HOUSHING COMP.
59V-W1752-02-00
Unavailable
13
CAM,DRIVEN
1YW-17527-10-00
Unavailable
13
CAM,DRIVEN
1YW-17527-10-00
Unavailable
14
SPRING, COMPRESSION(1YW)
90501-602E2-00
Unavailable
15
WASHER, PLATE
90201-206K8-00
Unavailable
16
WASHER, THRUST
3H5-17529-00-00
Unavailable
17
YOKE, JOINT
1YW-17556-01-00
Unavailable
18
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
19
NUT, SELF-LOCKING (1J7)
90185-14070-00
Unavailable
20
SHIM, PINION (0.1T)
59V-17531-00-00
Unavailable
20
SHIM, PINION (0.15T)
59V-17531-10-00
Unavailable
20
SHIM, PINION (0.2T)
59V-17531-20-00
Unavailable
20
SHIM, PINION (0.3T)
59V-17531-30-00
Unavailable
20
SHIM, PINION (0.4T)
59V-17531-40-00
Unavailable
20
SHIM, PINION (0.5T)
59V-17531-50-00
Unavailable
20
SHIM, PINION (1.0T)
59V-17531-60-00
Unavailable
21
BOLT (682)
97013-08025-00
Unavailable
22
.. WASHER, PLATE
92990-08600-00
Unavailable
23
GEAR, DRIVE
59V-17831-00-00
Unavailable
24
GEAR, DRIVEN
59V-17841-00-00
Unavailable
25
WASHER (692)
90201-12M34-00
Unavailable
26
OIL SEAL (30X)
93102-08307-00
Unavailable
27
O-RING(59V)
93210-24253-00
Unavailable
28
HOUSING, TACHOMETER GEAR
59V-17811-00-00
Unavailable
29
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
30
SCREW, PAN
98517-06030-00
Unavailable
