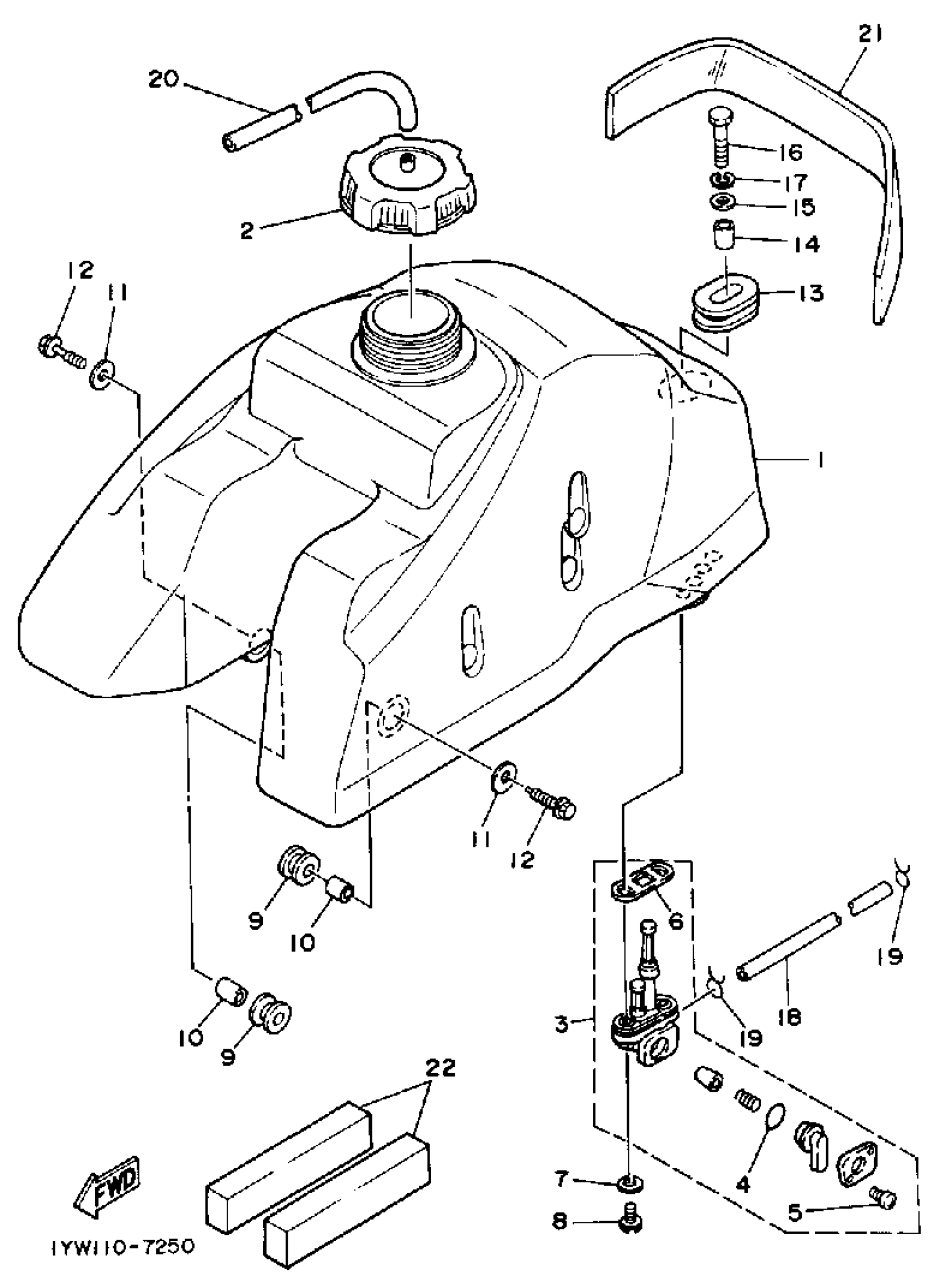

Yamaha YFM350ERW (MOTO-4) 1989 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3GH-24110-00-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$49.24

3

FUEL COCK ASSY 1

21V-24500-20-00

$43.85

4

O-RING

4X8-24534-00-00

$10.74

5

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

6

O-RING

4X8-24512-00-00

$6.25

7

WASHER, PLATE(3MB)

90202-05187-00

$1.01

8

SCREW 256241430000

90149-06011-00

$1.56

9

GROMMET(4AA)

90480-18549-00

$8.23

10

COLLAR 849833160000

90387-06027-00

$5.29

11

WASHER, PLATE (J10)

90201-06697-00

$5.75

12

BOLT, WITH WASHER (24X)

90119-06073-00

$5.75

13

GROMMET(38W)

90480-01400-00

$9.40

14

COLLAR (1T2)

90387-07598-00

$4.51

15

WASHER, PLATE

90201-06090-00

$4.82

16

BOLT, HEXAGON

97017-06030-00

Unavailable

17

WASHER, SPRING

92995-06100-00

$2.95

18

HOSE (L400)

90445-116K9-00

Unavailable

19

CLIP

90467-100A1-00

Unavailable

20

HOSE (L1500)

90445-090F6-00

Unavailable

21

DAMPER, LOCATING 1

59V-24181-00-00

Unavailable

22

PATCH 1

8V7-21961-00-00

Unavailable
