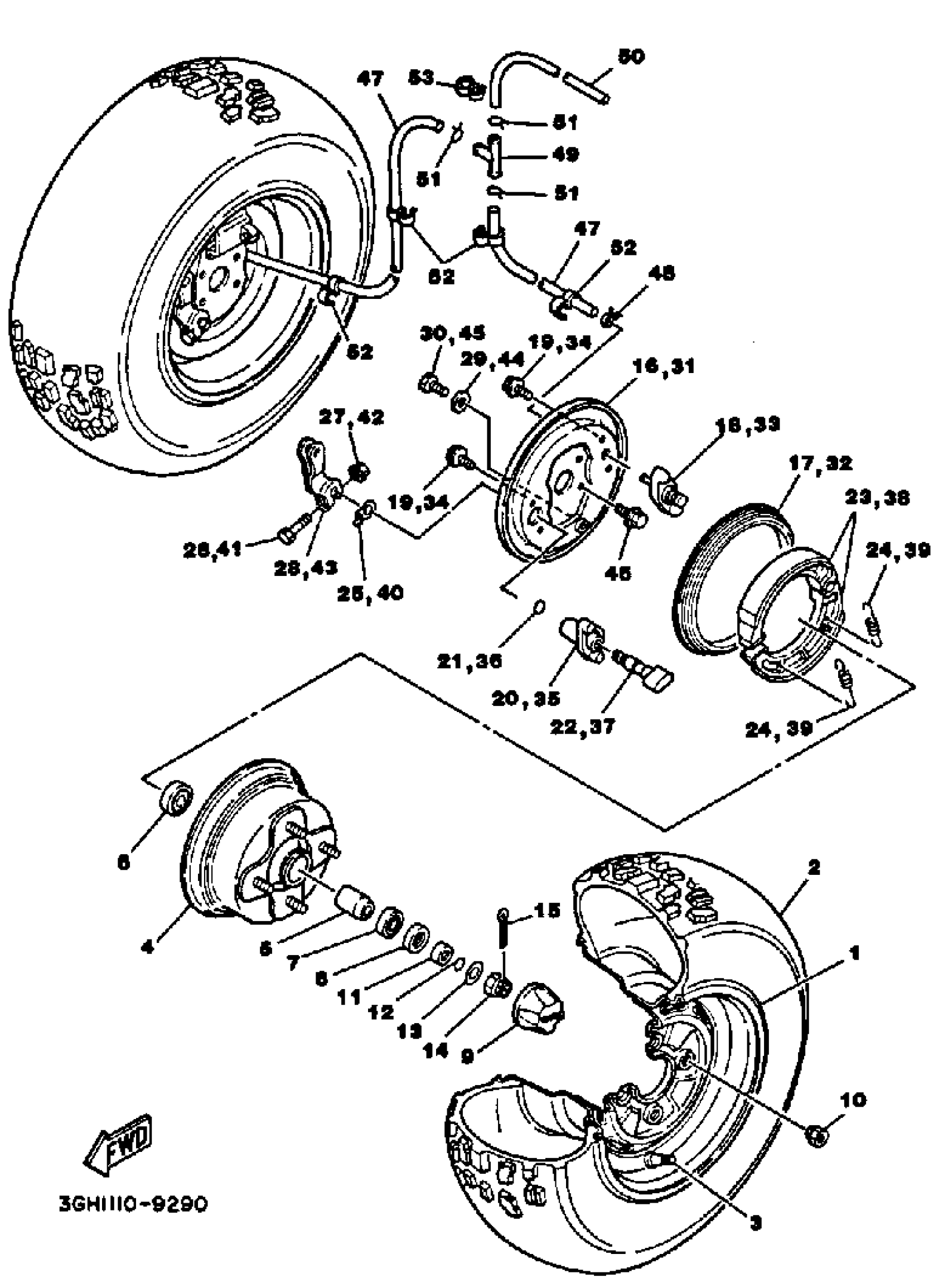

Yamaha YFM350ERW (MOTO-4) 1989 FRONT WHEEL Diagram
#
1
WHEEL, FRONT
3GH-25180-00-4R
Unavailable
2
TIRE (AT22X8-10** DH03C T/L)
94108-104W2-00
Unavailable
4
HUB, FRONT
3GH-25111-00-00
Unavailable
5
SPACER, BEARING
2NL-25117-00-00
Unavailable
11
FLANGE, SPACER 1
3GH-25115-00-00
Unavailable
12
O-RING
93210-15680-00
Unavailable
16
BACKING PLATE ASSEMBLY (L/H)
3GH-27290-00-00
Unavailable
17
SEAL, PLATE DUST
3GH-25129-10-00
Unavailable
18
ANCHOR BODY COMP.
3GH-27206-00-00
Unavailable
19
BOLT, FLANGE
95817-06012-00
Unavailable
20
BRACKET, CAM
3GH-2512E-00-00
Unavailable
21
O-RING (26H)
93210-14579-00
Unavailable
22
CAMSHAFT
3GH-25151-00-00
Unavailable
23
BRAKE SHOE SET
4BD-W2536-01-00
Unavailable
24
SPRING, RETURN
2NL-25133-00-00
Unavailable
25
PLATE, INDICATOR
3GH-2513A-00-00
Unavailable
26
BOLT
90101-06652-00
Unavailable
27
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
28
LEVER, CAMSHAFT 1
2NL-25155-00-00
Unavailable
29
WASHER
3GH-25898-00-00
Unavailable
30
BOLT, CALIPER
3GH-25818-00-00
Unavailable
31
BACKING PLATE ASSEMBLY (R/H)
3GH-27280-00-00
Unavailable
32
SEAL, PLATE DUST
3GH-25129-10-00
Unavailable
33
ANCHOR BODY COMP.
3GH-27206-00-00
Unavailable
35
BRACKET, CAM
3GH-2512E-00-00
Unavailable
35
BOLT, FLANGE
95817-06012-00
Unavailable
36
O-RING (26H)
93210-14579-00
Unavailable
37
CAMSHAFT
3GH-25151-00-00
Unavailable
38
BRAKE SHOE SET
4BD-W2536-01-00
Unavailable
39
SPRING, RETURN
2NL-25133-00-00
Unavailable
40
PLATE, INDICATOR
3GH-2513A-00-00
Unavailable
41
BOLT
90101-06652-00
Unavailable
42
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
43
LEVER, CAMSHAFT 1
2NL-25155-00-00
Unavailable
44
WASHER
3GH-25898-00-00
Unavailable
45
BOLT, CALIPER
3GH-25818-00-00
Unavailable
46
BOLT, FLANGE
95817-08012-00
Unavailable
47
HOSE (L1050)
90445-072G8-00
Unavailable
48
CLIP(42X)
90467-07093-00
Unavailable
49
WAY 3(33M)
90413-05014-00
Unavailable
50
HOSE (L1050)
90445-072G8-00
Unavailable
51
CLIP (16G)
90467-08021-00
Unavailable
52
CLIP (867)
90468-15020-00
Unavailable
53
CLIP(33M)
90468-15139-00
Unavailable
