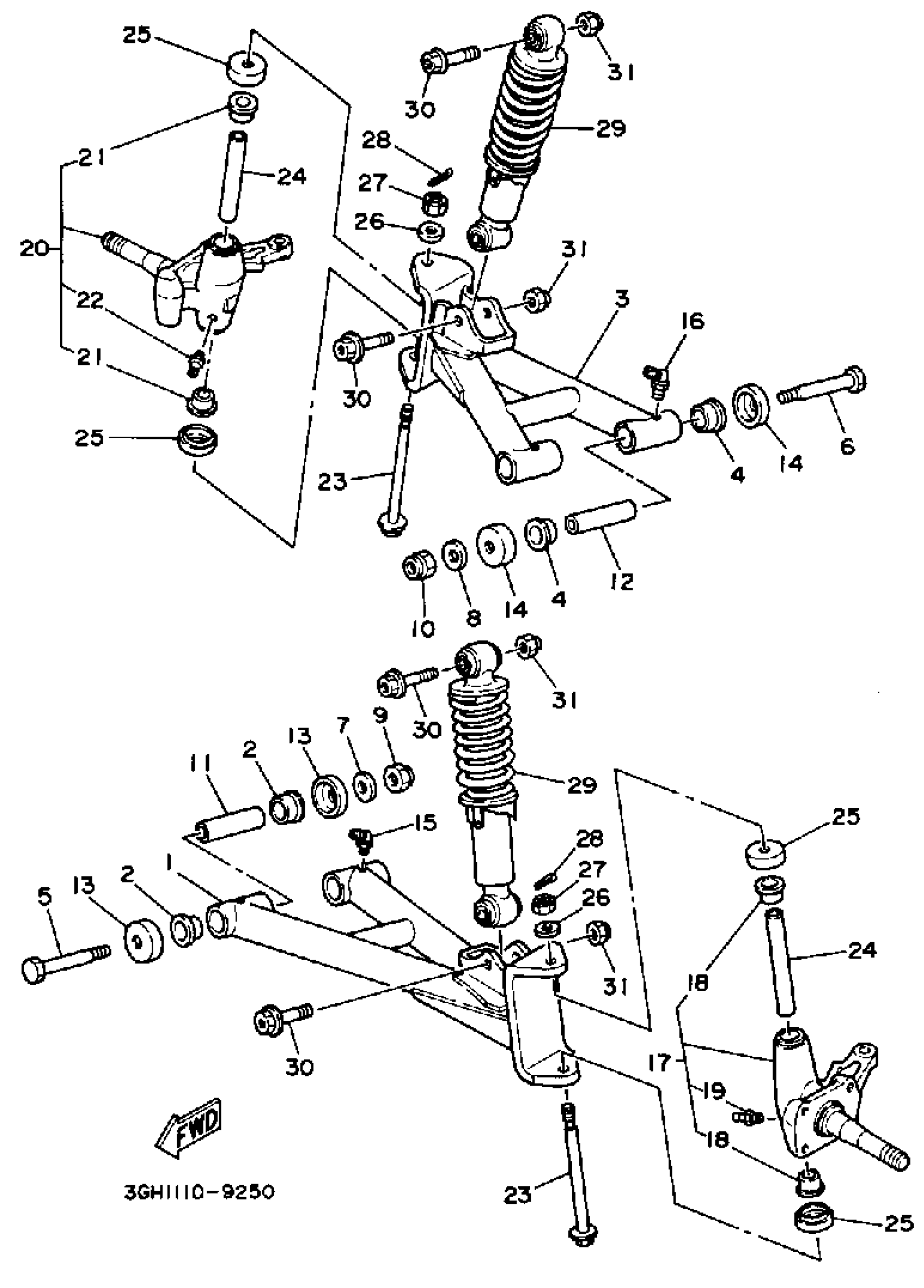

Yamaha YFM350ERW (MOTO-4) 1989 FRONT SUSPENSION - WHEEL Diagram
#
Description
Price
1
FRONT LOWER ARM COMP. (LEFT)
3GH-23570-00-00
Unavailable
3
FRONT LOWER ARM COMP. (RIGHT)
3GH-23580-00-00
Unavailable
5
BOLT
90101-10656-00
Unavailable
6
BOLT
90101-10656-00
Unavailable
17
KNUCKLE,STEERING 1
3GH-23510-01-00
Unavailable
18
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
19
NIPPLE, GREASE
93700-06M03-00
Unavailable
20
STEERING KNUCKLE COMP. (RIGHT)
3GH-23520-01-00
Unavailable
21
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
22
NIPPLE, GREASE
93700-06M03-00
Unavailable
23
BOLT, WASHER BASED(59V)
90105-10389-00
Unavailable
24
SPACER
2NL-23448-00-00
Unavailable
25
COVER, THRUST 1
3JN-23517-00-00
Unavailable
26
WASHER, PLATE (3L6)
90201-10774-00
Unavailable
27
NUT 3532518200
90171-10004-00
Unavailable
28
PIN, COTTER
91490-20025-00
Unavailable
29
SHOCK ABSORBER ASSEMBLY
3HP-23350-00-33
Unavailable
30
BOLT, WASHER BASED(59V)
90105-10388-00
Unavailable
