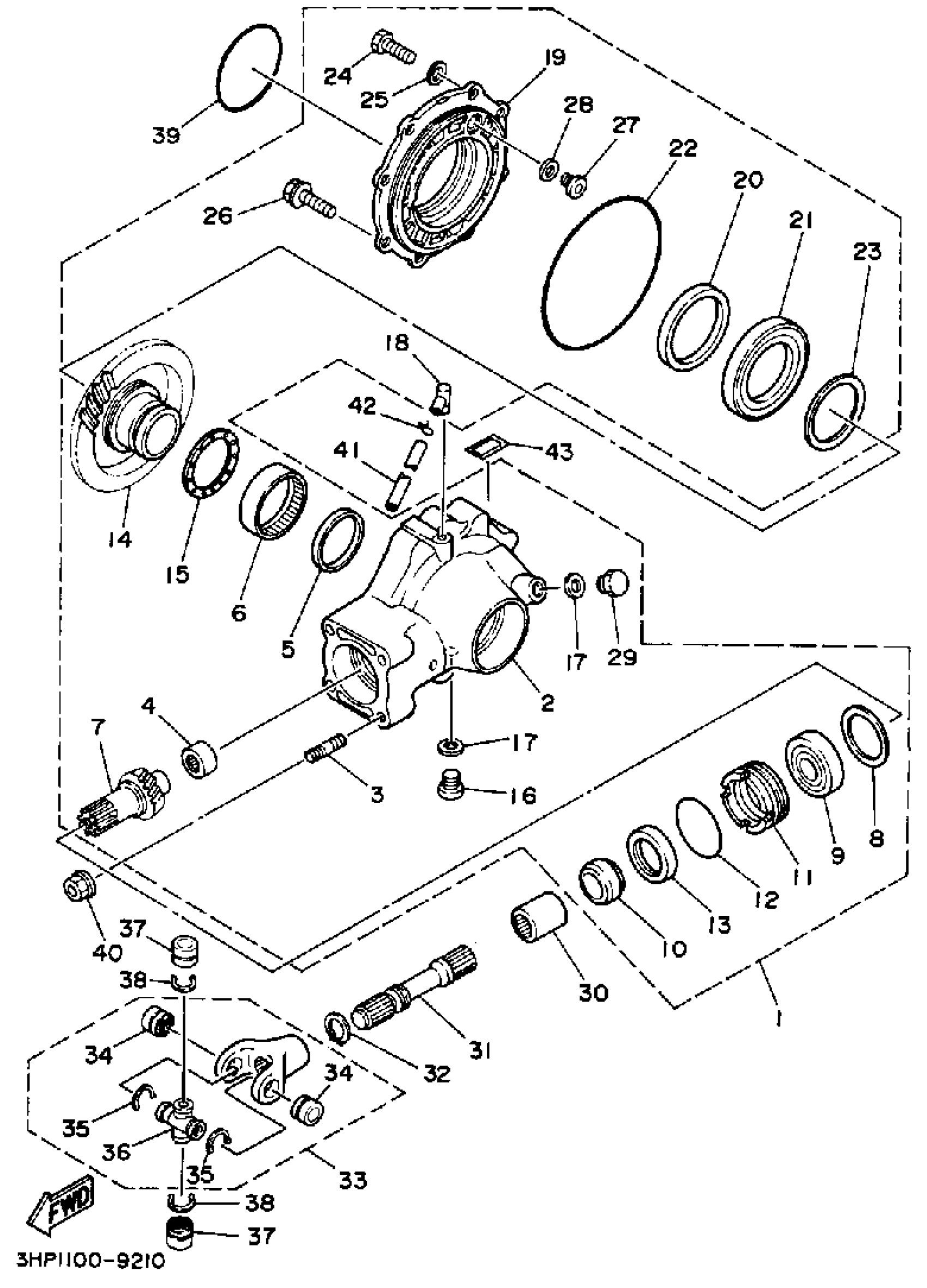

Yamaha YFM350ERW (MOTO-4) 1989 DRIVE SHAFT Diagram

#

Description
Price

1

REAR AXLE GEAR CASE ASSY

3HN-46101-12-00

Unavailable

2

HOUSING, DRIVE SHAFT

3HN-46151-01-00

Unavailable

3

BOLT, STUD (5E5)

90116-10361-00

Unavailable

4

BEARING ASSY

2H7-46102-00-00

$58.99

5

OIL SEAL (24W)

93101-52116-00

$16.99

6

. BEARING, CYLINDER17

93317-55542-00

Unavailable

6

BEARING, CYLINDRICAL(3HN)

93317-85569-00

$86.99

7

GEAR, DRIVE PINION

1YW-46121-01-00

$222.99

8

SHIM, THRUST (0.30T)

1J7-17537-Y0-30

$4.47

8

SHIM, THRUST (0.30T)

1J7-17537-Y0-30

$4.47

8

SHIM, THRUST (0.40T)

1J7-17537-Y0-40

$4.47

8

SHIM, THRUST (0.50T)

1J7-17537-Y0-50

$4.47

9

BEARING(4KB)

93306-30568-00

Unavailable

10

COLLAR (24W)

90387-255H9-00

Unavailable

11

RETAINER, BEARING

29U-46125-00-00

$92.99

12

O-RING (11H)

93210-59531-00

Unavailable

13

OIL SEAL (4H7)

93101-38098-00

Unavailable

14

. RING GEAR COMP

1YW-46110-00-00

Unavailable

15

WASHER, THRUST

24W-46118-00-12

Unavailable

15

WASHER, THRUST

24W-46118-00-14

Unavailable

15

WASHER, THRUST

24W-46118-00-16

Unavailable

15

WASHER, THRUST

24W-46118-00-18

Unavailable

15

WASHER, THRUST

24W-46118-00-20

Unavailable

16

PLUG, STRAIGHT SCREW

90340-14002-00

Unavailable

17

GASKET

214-11198-01-00

Unavailable

18

BREATHER

5UG-15371-00-00

Unavailable

19

HOUSING, BEARING

3HN-46152-01-00

Unavailable

20

OIL SEAL (22U)

93102-65277-00

Unavailable

21

BEARING, CYLINDRICAL (22U)

93316-01301-00

Unavailable

22

O-RING(59V)

93211-54698-00

Unavailable

23

. SHIM, RING GEAR (025T)

24W-46117-00-25

Unavailable

23

. SHIM, RING GEAR (030T)

24W-46117-00-30

Unavailable

23

. SHIM, RING GEAR (040T)

24W-46117-00-40

Unavailable

23

. SHIM, RING GEAR (050T)

24W-46117-00-50

Unavailable

24

BOLT (682)

97013-08025-00

Unavailable

25

.. WASHER, PLATE

92990-08600-00

Unavailable

26

BOLT, FLANGE(4GB)

95817-10045-00

Unavailable

27

STOPPER, RING GEAR

1FK-46156-00-00

Unavailable

28

SHIM, STOPPER

1FK-46157-00-15

Unavailable

28

. SHIM, STOPPER (T=020)

1FK-46157-00-20

Unavailable

28

SHIM, STOPPER (T=0.30)

1FK-46157-00-30

Unavailable

28

SHIM,STOPPER

1FK-46157-00-40

Unavailable

29

PLUG, STRAIGHT(2E9)

90340-14029-00

Unavailable

30

COUPLING, GEAR

2HR-46123-00-00

Unavailable

31

SHAFT, DRIVE

1YW-46172-00-00

Unavailable

32

CIRCLIP (537)

93410-22039-00

Unavailable

33

CROSS JOINT COMP.

1YW-46180-02-00

Unavailable

34

BEARING

93399-99952-00

Unavailable

35

CIRCLIP(3JN)

93440-23165-00

Unavailable

36

SPIDER

2HR-46187-00-00

Unavailable

37

BEARING

93399-99952-00

Unavailable

38

CIRCLIP(3JN)

93440-23165-00

Unavailable

39

O-RING(59V)

93210-85706-00

Unavailable

40

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

41

HOSE (L1700)

90445-070G6-00

Unavailable

42

UNAVAILABLE IN PRICE BOOK

90467-00290-0

Unavailable

43

LABEL, OIL CAUTION

4H7-46181-10-00

Unavailable
