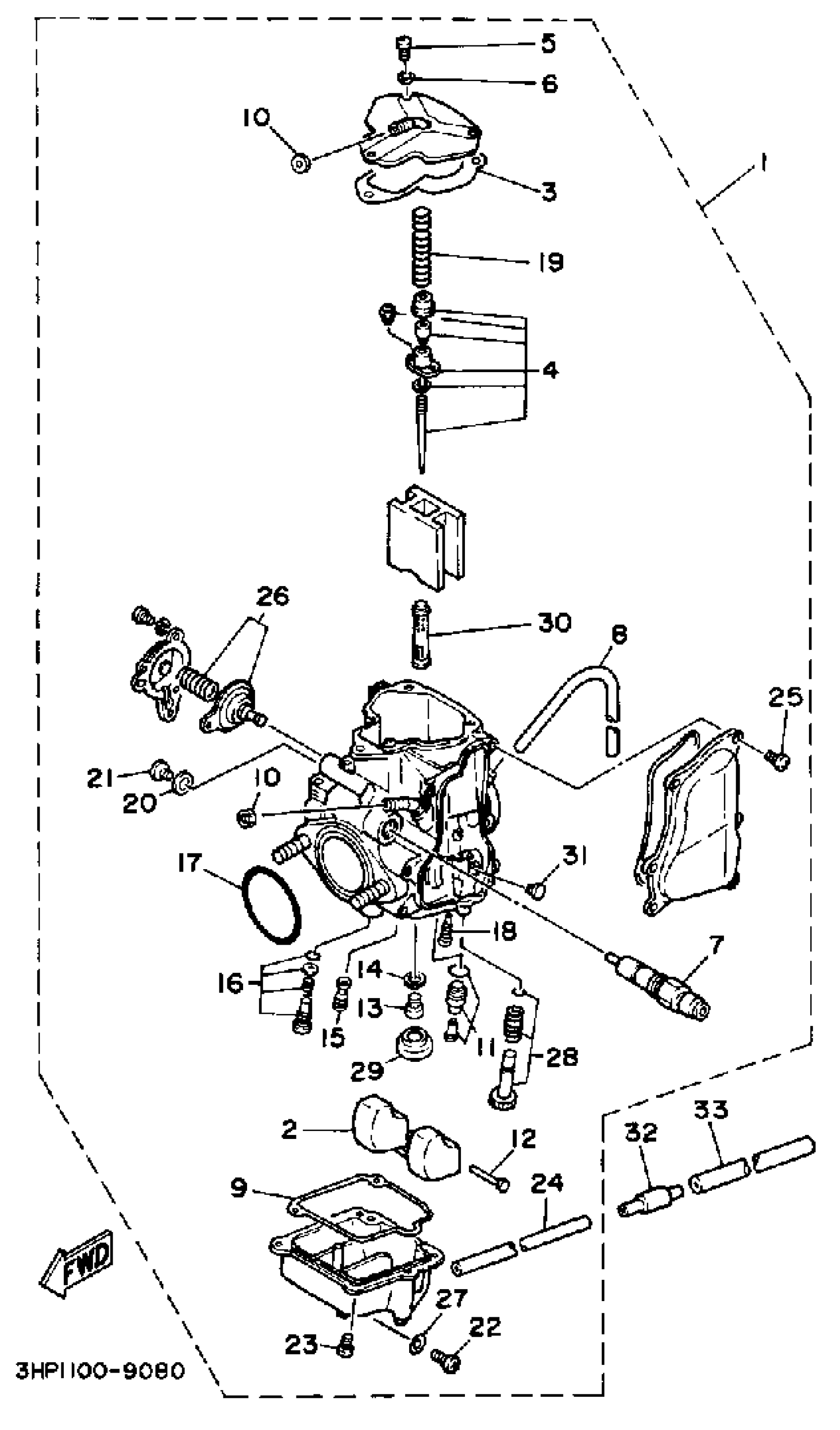

Yamaha YFM350ERW (MOTO-4) 1989 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

2VA-14101-01-00

Unavailable

2

FLOAT

2VA-14185-00-00

$80.55

3

GASKET

1UY-14198-00-00

$23.47

4

NEEDLE SET

2HR-1490J-01-00

$56.70

5

SCREW, PAN HEAD

98517-04016-00

$5.76

6

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

7

. STARTER SET

1YW-1410A-00-00

Unavailable

8

HOSE (L1500)

90445-084J0-00

$15.31

9

O-RING

1UY-14147-00-00

$21.26

10

. UNAVAILABLE IN PRICE BOOK

127-16161-00-00

Unavailable

11

NEEDLE VALVE SET

1UY-14107-25-00

$31.85

12

PIN, FLOAT

537-14186-00-00

$6.29

13

JET,MAIN #117.5

620-1423A-74-00

$14.70

14

WASHER,MAIN JET

137-14153-00-00

$6.02

15

JET, PILOT (# 45)

4G0-14142-45-00

Unavailable

16

PILOT SCREW SET

21V-14105-00-00

Unavailable

17

O-RING

1YW-14147-00-00

Unavailable

18

SCREW

1FN-14565-00-00

Unavailable

19

. SPRING, THROTTLE VALVE

2HR-14131-00-00

Unavailable

20

. WASHER

59V-14962-00-00

$5.07

21

SCREW, PAN HEAD(6A3)

97885-06008-00

$1.07

22

SCREW

2L1-14191-00-00

Unavailable

23

SCREW, PAN HEAD

98511-04012-00

Unavailable

24

HOSE (L1500)

90445-084J0-00

$15.31

25

SCREW, PAN HEAD

98517-04012-00

Unavailable

26

DIAPHRAGM SET, 5

3LD-1490H-00-00

Unavailable

27

O-RING

214-14147-00-00

Unavailable

28

THROTTLE SCREW SET

2VA-14103-00-00

Unavailable

29

WASHER, MAIN JET

5V7-14153-00-00

Unavailable

30

NOZZLE, MAIN

1YW-14141-28-00

Unavailable

31

GUIDE, CABLE

1UY-14155-00-00

Unavailable

32

PIPE 2,OVERFLOW

24W-14193-00-00

Unavailable

33

TUBE, FLEXIBLE(3NV)

91A21-07020-00

Unavailable
