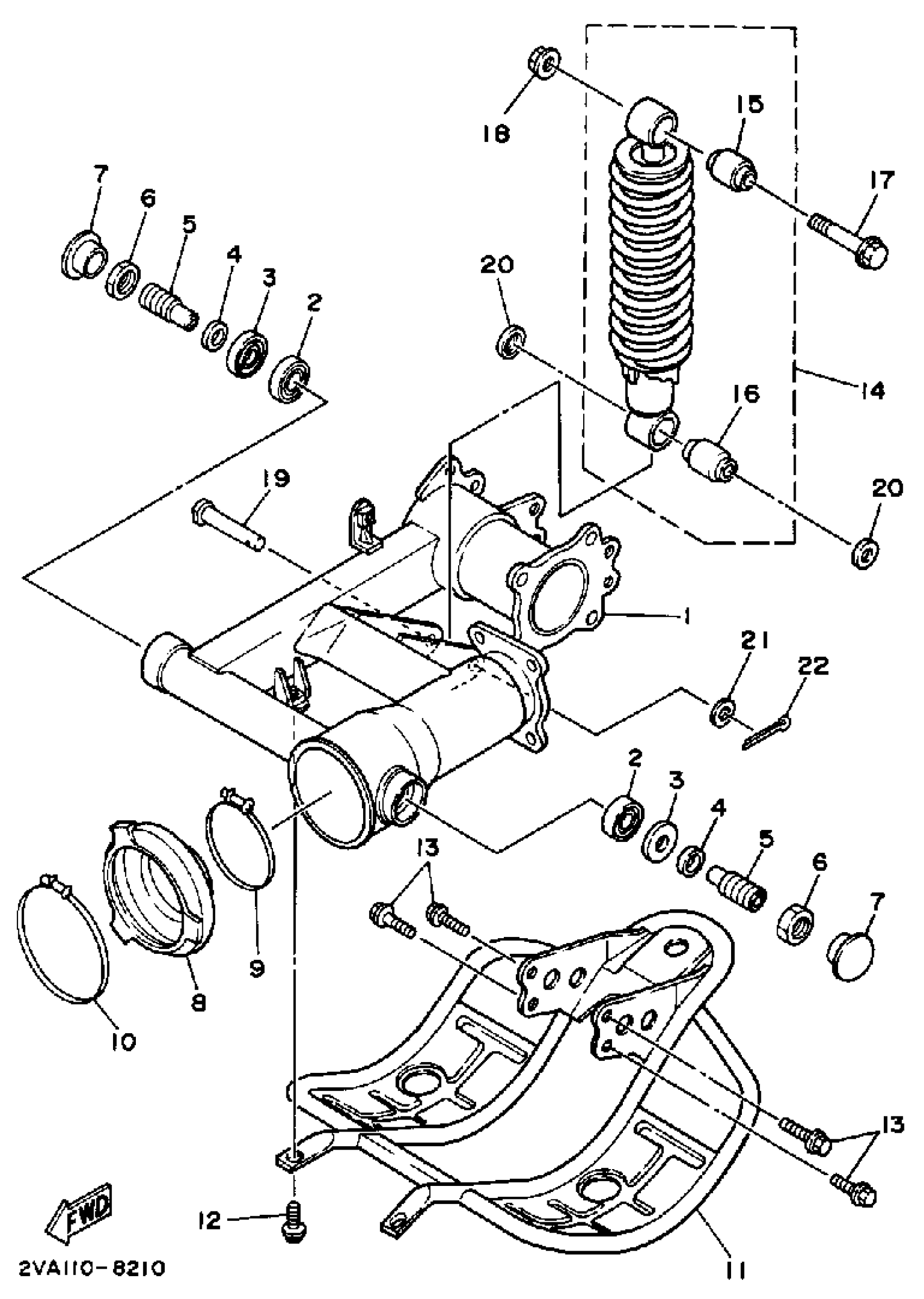

Yamaha YFM350ERU (MOTO-4) 1988 SWING ARM-REAR SHOCKS Diagram

REAR ARM COMP.

1YW-22110-00-33

Unavailable

BRG,CYL-CAL ROLLER 74G KY

93332-00010-00

$47.99

OIL SEAL (25X40X5-101)

93102-25017-00

$5.60

COLLAR

90387-17011-00

$15.99

SHAFT, PIVOT

4WV-22141-00-00

$31.99

NUT, PIVOT SHAFT

1J7-22143-00-00

$23.99

PLUG (1J7)

90338-34069-00

Unavailable

BOOT, RUBBER (1YW-22189-00-00)

59V-22189-00-00

Unavailable

CLAMP, HOSE(1YW)

90460-99289-00

$16.99

HOSE CLAMP ASSY(2HR)

90450-99013-00

$17.99

COVER

1YW-2219X-01-00

Unavailable

BOLT, FLANGE

95817-08012-00

$5.49

BOLT, FLANGE(3HP)

95817-10016-00

$8.49

SHOCK ASSY,REAR

3HP-22210-00-33

Unavailable

. BUSH, REAR SHOCK ABSORBER

24R-22216-00-00

Unavailable

. BUSH, SHOCK ABSORBER LOWER

2VA-22226-00-00

Unavailable

BOLT, WASHER BASED(1YW)

90105-12425-00

Unavailable

NUT, SELF LOCKING (1M1)

90185-12072-00

Unavailable

PIN, CLEVIS (10V)

90240-12092-00

Unavailable

COVER, THRUST

1W1-22128-00-00

Unavailable

WASHER, PLATE(663)

92990-12600-00

Unavailable

PIN, COTTER

91490-30030-00

Unavailable
