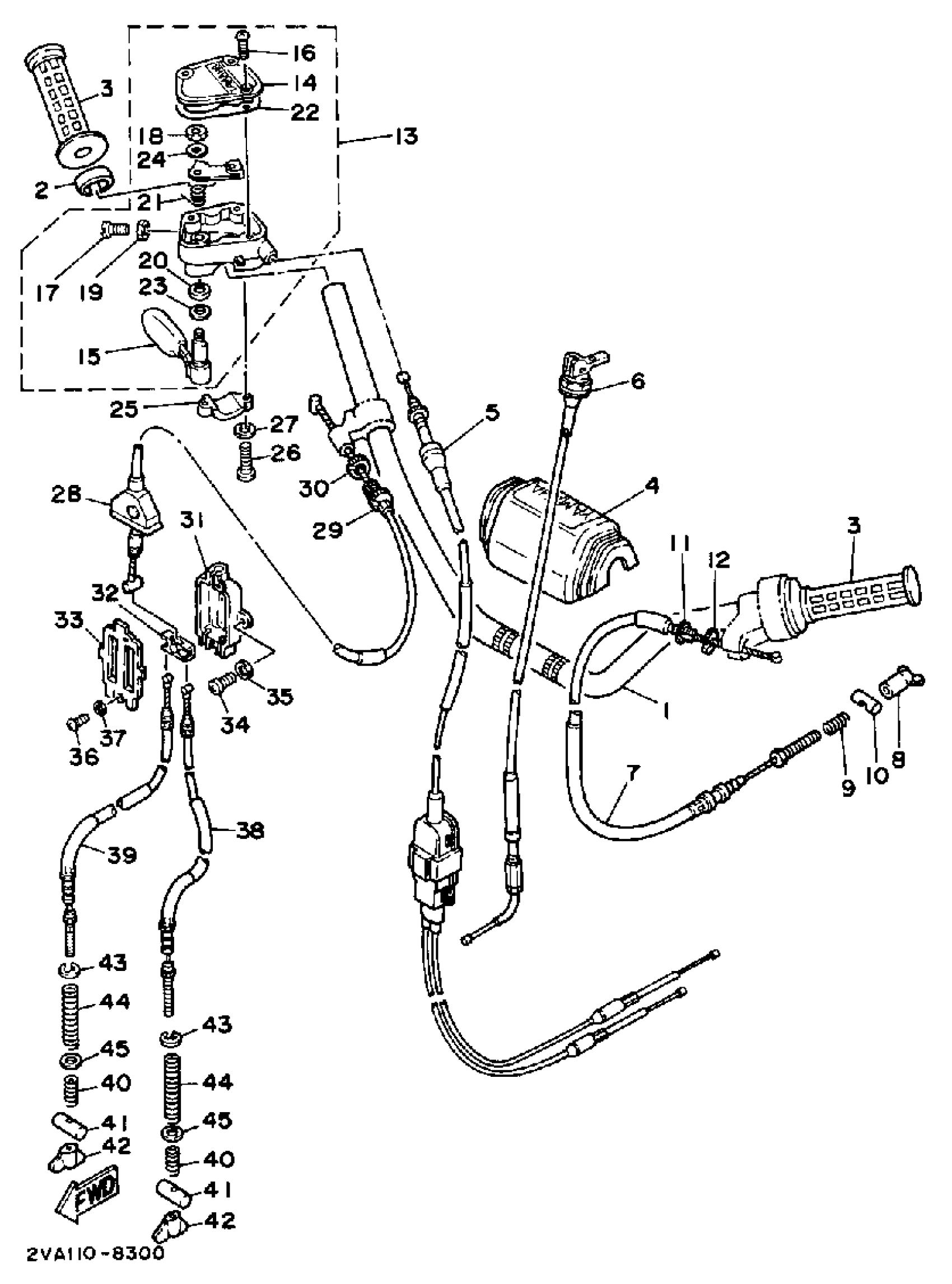

Yamaha YFM350ERU (MOTO-4) 1988 HANDLEBAR-CABLE Diagram
#
1
HANDLEBAR
59V-26111-01-00
Unavailable
4
PROTECTOR, HANDLEBAR
1YW-26124-01-00
Unavailable
5
THROTTLE CABLE ASSEMBLY
2VA-26301-00-00
Unavailable
6
CBLE STRTR SET-1YW (1YW-26331-00)
99999-01822-00
Unavailable
13
THROTTLE LEVER ASSY
1NV-26250-01-00
Unavailable
14
. CAP, GEAR
1NV-2628F-00-00
Unavailable
15
. LEVER, THROTTLE
1NV-2625G-00-00
Unavailable
16
SCREW, PAN
98517-05012-00
Unavailable
17
SCREW, PAN HEAD
98517-05020-00
Unavailable
18
NUT, U
95617-05100-00
Unavailable
19
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
20
OIL SEAL (9X15X4-256)
93104-09025-00
Unavailable
21
SPRING
1NV-26304-00-00
Unavailable
22
. GASKET
1NV-2628G-00-00
Unavailable
23
WASHER
1NV-26129-00-00
Unavailable
24
. WASHER, SPECIAL
53L-83909-00-00
Unavailable
25
HOLDER, LEVER LOWER
4V4-82913-00-00
Unavailable
26
SCREW, PAN HEAD
98517-05020-00
Unavailable
27
WASHER(3SX)
92907-05100-00
Unavailable
28
CABLE, BRAKE 4
1YW-26373-02-00
Unavailable
31
HOUSING, BRAKE LINK
52H-26371-00-00
Unavailable
32
JOINT, CABLE
52H-26347-01-00
Unavailable
33
PLATE
52H-2631G-00-00
Unavailable
34
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
35
WASHER, PLAIN (646)
92990-05600-00
Unavailable
36
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
37
WASHER(3SX)
92907-03600-00
Unavailable
38
CABLE, BRAKE
2HT-26361-00-00
Unavailable
39
CABLE, BRAKE 4
2HT-26373-00-00
Unavailable
42
NUT, WING (1K5)
90175-06013-00
Unavailable
43
CIRCLIP(53L)
99001-06600-00
Unavailable
44
SPRING, COMPRESSION(52H)
90501-123A0-00
Unavailable
45
WASHER(52H)
90209-06265-00
Unavailable
