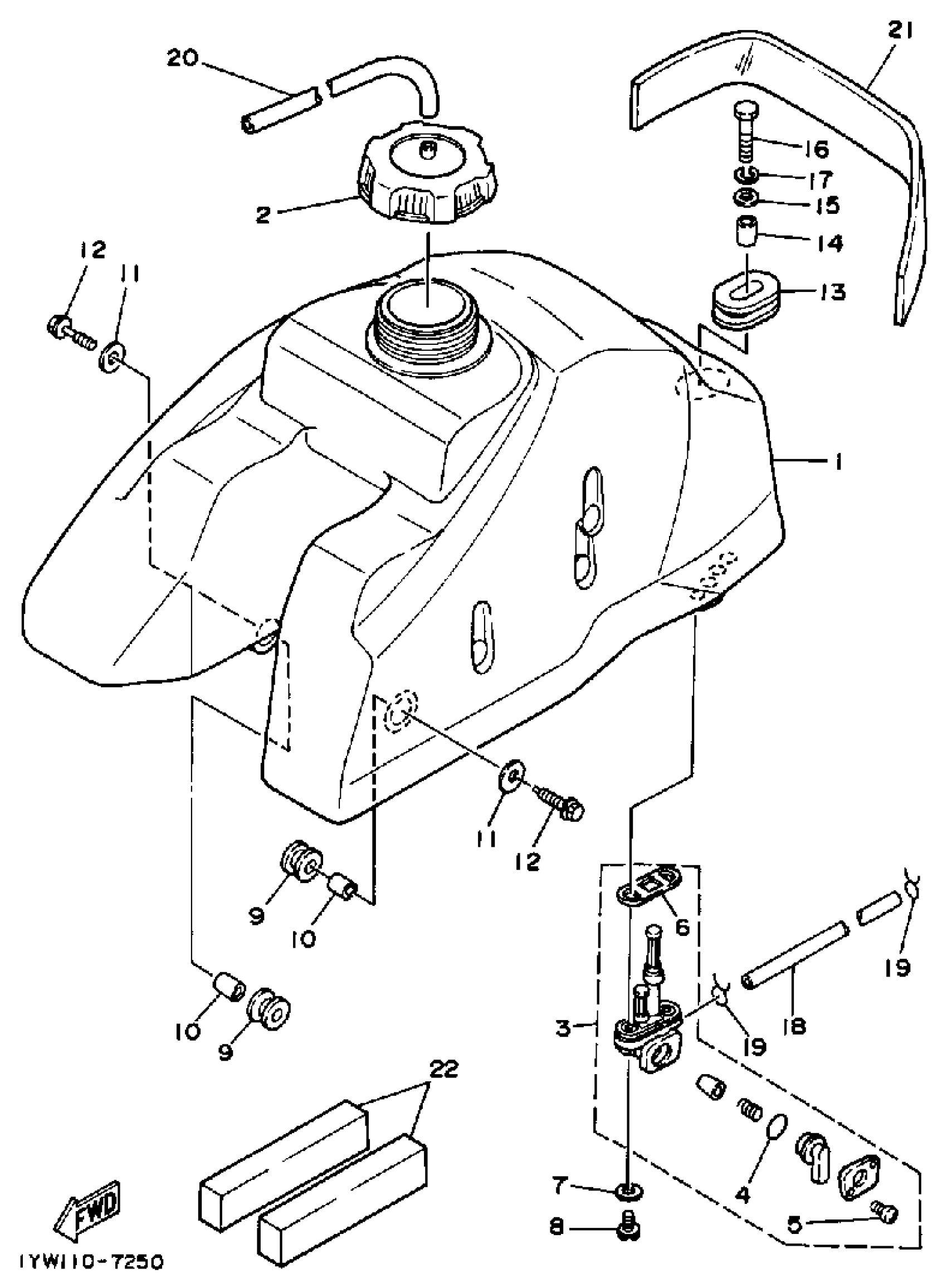

Yamaha YFM350ERU (MOTO-4) 1988 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3GH-24110-00-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$58.99

3

FUEL COCK ASSY 1

21V-24500-20-00

$51.99

4

O-RING

4X8-24534-00-00

$13.49

5

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

6

O-RING

4X8-24512-00-00

$8.99

7

WASHER, PLATE(3MB)

90202-05187-00

$1.38

8

SCREW 256241430000

90149-06011-00

$5.60

9

GROMMET(4AA)

90480-18549-00

$10.49

10

COLLAR 849833160000

90387-06027-00

$8.49

11

WASHER, PLATE (J10)

90201-06697-00

$8.49

12

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

13

GROMMET(38W)

90480-01400-00

$13.49

14

COLLAR (1T2)

90387-07598-00

$5.60

15

WASHER, PLATE

90201-06090-00

$5.60

16

BOLT, HEXAGON

97017-06030-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

HOSE (L400)

90445-116K9-00

Unavailable

19

CLIP

90467-100A1-00

Unavailable

20

HOSE (L1500)

90445-090F6-00

Unavailable

21

DAMPER, LOCATING 1

59V-24181-00-00

Unavailable

22

PATCH 1

8V7-21961-00-00

Unavailable
