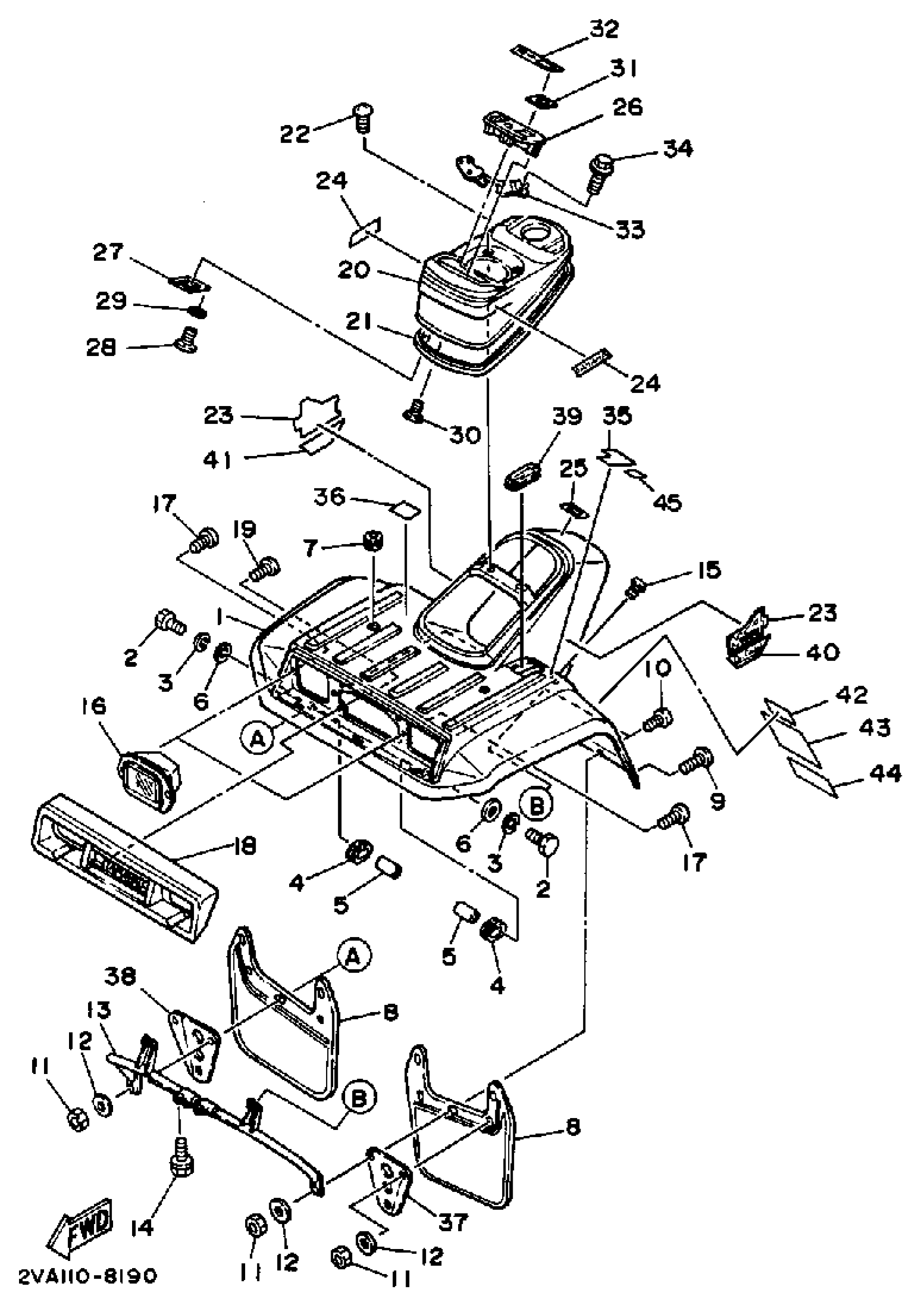

Yamaha YFM350ERU (MOTO-4) 1988 FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT

2VA-21511-00-00

Unavailable

1

FENDER, FRONT

2VA-21511-10-00

Unavailable

2

BOLT, HEXAGON

97017-06025-00

$4.24

3

WASHER, SPRING

92995-06100-00

Unavailable

4

GROMMET(38W)

90480-01400-00

$13.49

5

COLLAR (1M1)

90387-06553-00

$9.49

6

WASHER PLATE 248217570000

90201-06074-00

$9.49

7

GROMMET (5H0)

90480-10297-00

$7.49

8

FLAP, FRONT FENDER

1YW-21521-00-00

Unavailable

9

SCREW, BINDING(3XV)

90154-05059-00

$9.49

10

SCREW, BINDING (8G6)

90154-05002-00

$10.49

11

NUT, NYLON

95707-05300-00

$4.24

12

WASHER, PLATE 8067717800

90201-05029-00

$8.49

13

STAY, FENDER 1

59V-21513-01-00

Unavailable

14

BOLT, FLANGE

95812-06010-00

$2.98

15

SCREW, BINDING (59V)

90154-06022-00

Unavailable

16

BODY, HEADLIGHT

59V-84111-00-00

Unavailable

17

SCREW, TAPPING(53L)

90167-05030-00

Unavailable

18

PANEL, FRONT

1YW-23391-00-00

Unavailable

19

SCREW, TAPPING(53L)

90167-05030-00

Unavailable

20

COVER, TOP

1YW-2171A-01-00

Unavailable

21

MOLD, FENDER

59V-21519-00-00

Unavailable

22

SCREW, BINDING

90154-05031-00

Unavailable

23

EMBLEM 1

2VA-21781-00-00

Unavailable

23

EMBLEM 1

2VA-21781-10-00

Unavailable

24

EMBLEM, YAMAHA

99241-00080-00

Unavailable

25

LABEL, CHOKE

1YW-26139-00-00

Unavailable

26

PANEL, INSTRUMENT

2HT-77711-00-00

Unavailable

27

PILOT BOX, LOWER

2HT-83569-00-00

Unavailable

28

SCREW, PAN TAP.2

97707-30512-00

Unavailable

29

WASHER,PLAIN

92990-03200-00

Unavailable

30

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

31

DAMPER

59V-83513-00-00

Unavailable

32

EMBLEM

2HT-21578-00-00

Unavailable

33

JOINT 2

1YW-2834L-00-00

Unavailable

34

BOLT, FLANGE

95817-06012-00

Unavailable

35

LABEL, SAFETY

1YW-21659-00-00

Unavailable

36

GRAPHIC 4

1YW-24894-00-00

Unavailable

37

PLATE 1

59V-21523-00-00

Unavailable

38

PLATE 2

59V-21524-00-00

Unavailable

39

DAMPER 1

1YW-21541-00-00

Unavailable

40

EMBLEM 3

2VA-21783-00-00

Unavailable

40

EMBLEM 3

2VA-21783-10-00

Unavailable

41

EMBLEM 4

2VA-21784-00-00

Unavailable

41

EMBLEM 4

2VA-21784-10-00

Unavailable

42

EMBLEM

1NU-21578-00-00

Unavailable

43

LABEL, CAUTION

2VA-21696-00-00

Unavailable

44

LABEL, SAFTY

2GW-21659-00-00

Unavailable

45

GRAPHIC 2

2HR-21579-00-00

Unavailable
