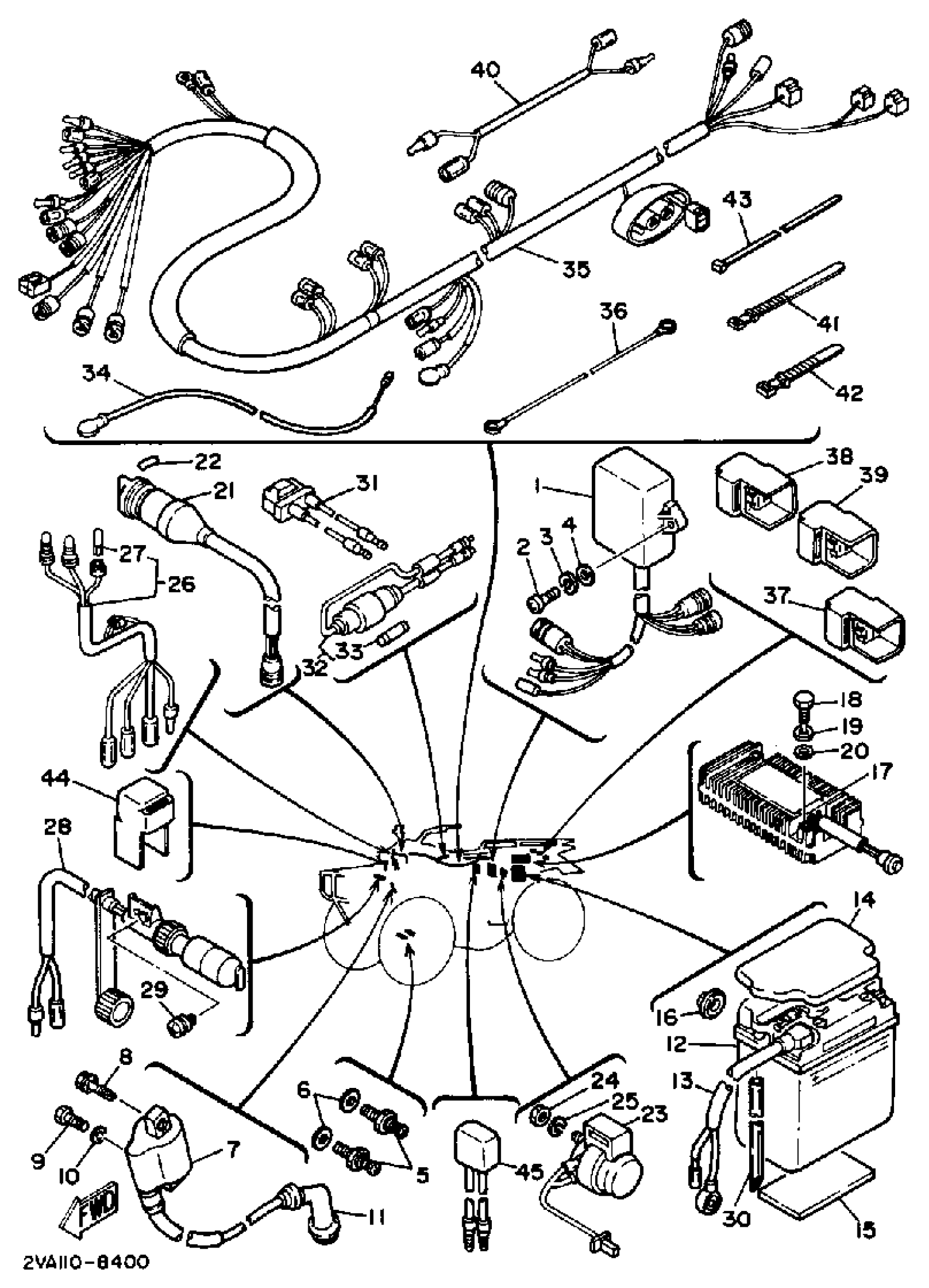

Yamaha YFM350ERU (MOTO-4) 1988 ELECTRICAL 1 Diagram
#
1
CDI UNIT ASSEMBLY
1YW-85540-20-00
Unavailable
3
WASHER, SPRING
92995-06100-00
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
12
CB14-A2 GS BATTERY
CB1-4A200-00-00
Unavailable
14
COVER, BATTERY
24W-82129-00-00
Unavailable
16
PAD, BATTERY
371-82121-00-00
Unavailable
17
RECTIFIER/REG ASSEMBLY
1YW-81960-A0-00
Unavailable
18
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
19
WASHER, SPRING
92995-06100-00
Unavailable
21
MAIN SWITCH ASSY
1UY-82510-09-00
Unavailable
22
LABEL
29U-83585-10-00
Unavailable
23
STARTER RELAY ASSY (MS5D-611)
4KD-81940-00-00
Unavailable
24
NUT(650)
95380-06700-00
Unavailable
25
WASHER, SPRING
92995-06100-00
Unavailable
26
PILOT LIGHT ASSEMBLY
2HT-83530-00-00
Unavailable
27
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
28
TERMINAL ASSY
59V-81920-00-00
Unavailable
29
SCREW, WITH WASHER (1T4/2F3)
90159-05018-00
Unavailable
30
HOSE (L1500)
90445-084J0-00
Unavailable
31
CIRCUIT BRKR.ASSEMBLY
1YW-82180-00-00
Unavailable
32
FUSE HOLDER ASSY
2NL-82150-00-00
Unavailable
33
FUSE (12V 30A)
2H7-82151-00-00
Unavailable
34
WIRE, LEAD
2JX-82541-00-00
Unavailable
35
WIRE HARNESS SET
99999-01907-00
Unavailable
36
WIRE, LEAD
1YW-82507-00-00
Unavailable
37
RELAY ASSY (1UY-92)
1UY-81950-92-00
Unavailable
38
RELAY ASSY (29U-93)
29U-81950-93-00
Unavailable
39
RELAY ASSY (29U-93)
29U-81950-93-00
Unavailable
40
WIRE, LEAD
59V-82541-00-00
Unavailable
41
BAND, SWITCH CORD
437-83936-01-00
Unavailable
42
BAND, SWITCH CORD
437-83936-11-00
Unavailable
43
CLAMP(MF1)
90464-15152-00
Unavailable
44
RELAY ASSY (1UY-92)
1UY-81950-92-00
Unavailable
45
CHECKER, PILOT LAMP
38W-85774-00-00
Unavailable
