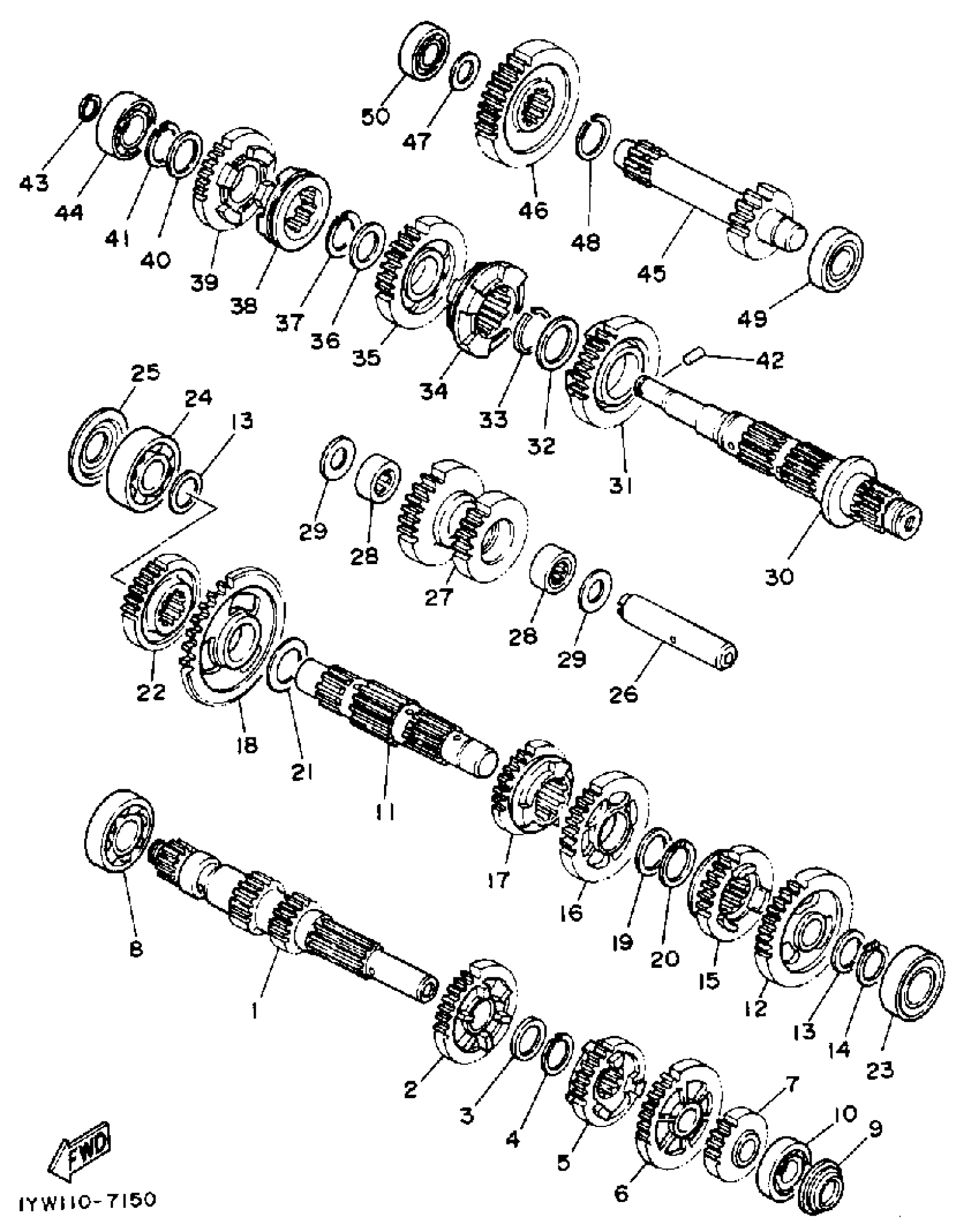

Yamaha YFM350ERT (MOTO-4) 1987 TRANSMISSION Diagram
#
1
MAIN AXLE ASSY
4GB-17401-00-00
Unavailable
2
GEAR, 5TH PINION
1YW-17151-00-00
Unavailable
5
GEAR, 3RD PINION (22T)
1YW-17131-00-00
Unavailable
6
GEAR, 4TH PINION (25T)
1YW-17141-00-00
Unavailable
7
GEAR, 2ND PINION (18T)
1YW-17121-00-00
Unavailable
11
DRIVE AXLE ASSY
1YW-17402-00-00
Unavailable
12
GEAR, 2ND WHEEL
1YW-17221-00-00
Unavailable
15
GEAR, 4TH WHEEL (26T)
1YW-17241-00-00
Unavailable
16
GEAR, 3RD WHEEL
1YW-17231-01-00
Unavailable
17
GEAR,5TH WHEEL
4KB-17251-00-00
Unavailable
18
GEAR,1ST WHEEL
4KB-17211-00-00
Unavailable
19
WASHER, PLATE
90201-253G3-00
Unavailable
20
CIRCLIP (4L0)
93440-25084-00
Unavailable
21
WASHER, PLATE (21V)
90201-266F6-00
Unavailable
22
GEAR, HIGH PINION (23T)
1YW-17123-00-00
Unavailable
23
BEARING(1YW)
93306-20461-00
Unavailable
24
BEARING
93306-30443-00
Unavailable
25
OIL SEAL (4X7)
93104-20068-00
Unavailable
26
AXLE, IDLE
1UY-17432-01-00
Unavailable
27
GEAR, HIGH WHEEL (20T)
1YW-17223-01-00
Unavailable
28
BEARING, CYLINDRICAL(37F)
93311-51554-00
Unavailable
29
WASHER, PLATE(3GD)
90201-150U6-00
Unavailable
30
SHAFT
1YW-17523-00-00
Unavailable
31
GEAR, REVERSE WHEEL 2
1YW-17253-00-00
Unavailable
32
WASHER, PLATE (2J2)
90201-32673-00
Unavailable
33
CIRCLIP (371)
93440-34025-00
Unavailable
34
CLUTCH, DOG
(1YW-17285-00-00)
Unavailable
35
GEAR/CLUTCH DOG SET (1YW-17582-00)
2VA-17500-00-00
Unavailable
36
WASHER, PLATE(36Y)
90201-307H1-00
Unavailable
37
CIRCLIP (3J3)
93440-30077-00
Unavailable
38
HOLDER
1YW-17286-01-00
Unavailable
39
GEAR, MIDDLE DRIVEN
1YW-17583-01-00
Unavailable
40
WASHER, PLATE(36Y)
90201-257H0-00
Unavailable
41
CIRCLIP (4L0)
93440-25084-00
Unavailable
42
PIN, DOWEL
93603-13185-00
Unavailable
43
CIRCLIP(59V)
93440-14155-00
Unavailable
44
BEARING (34L)
93306-00431-00
Unavailable
45
AXLE, COUNTER
1YW-17431-00-00
Unavailable
46
GEAR, REVERSE WHEEL 1
1YW-17243-00-00
Unavailable
47
WASHER, PLATE (30X)
90201-177G4-00
Unavailable
48
CIRCLIP (4L0)
93440-25084-00
Unavailable
50
BEARING(2JN)
93306-00315-00
Unavailable
