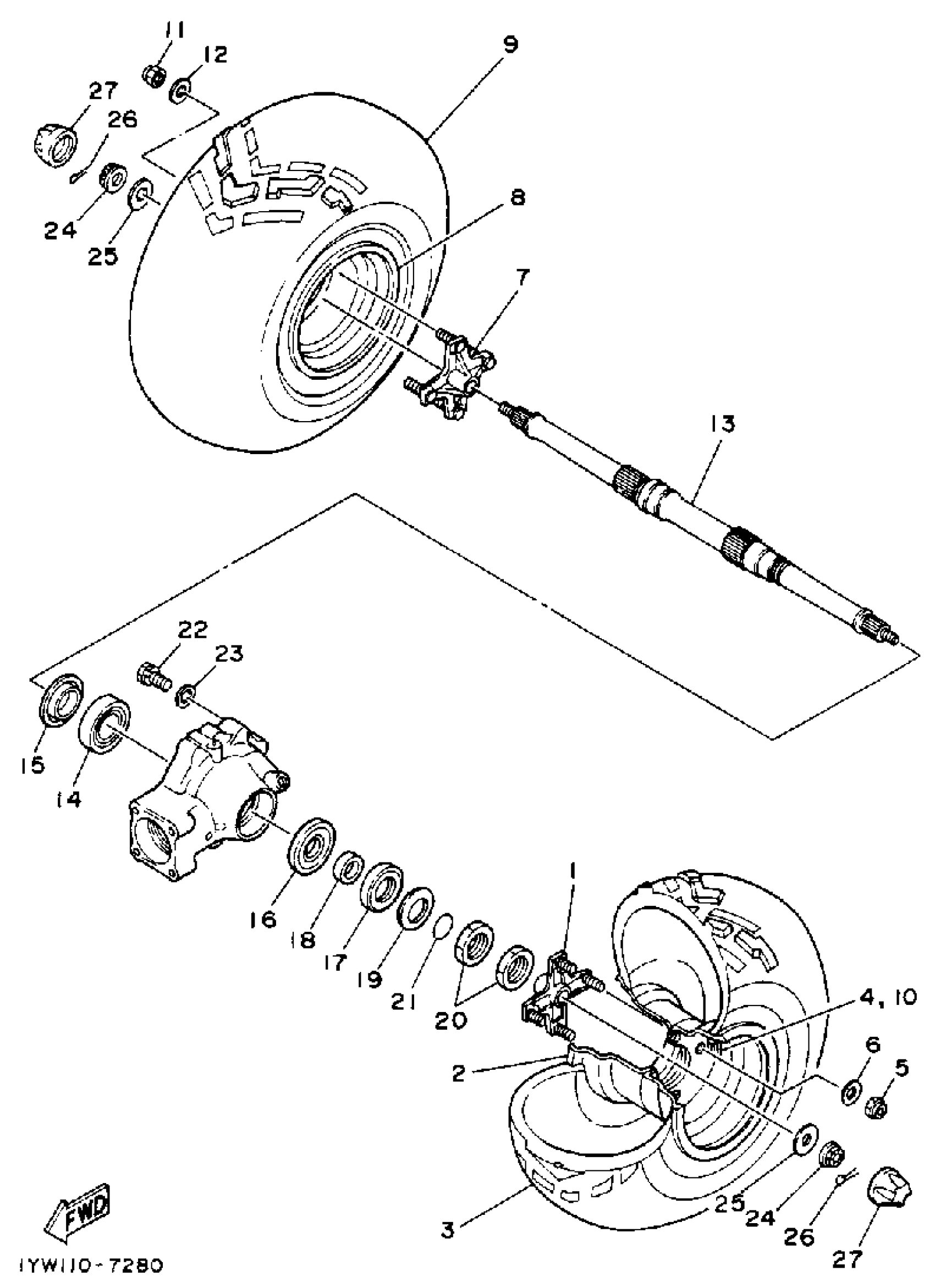

Yamaha YFM350ERT (MOTO-4) 1987 REAR WHEEL Diagram
#
Description
Price
1
COLLAR, WHEEL (1YW-25383-01)
2VA-25383-00-00
Unavailable
2
WHEEL,REAR
2HT-25390-00-4R
Unavailable
3
AT25X12-9* BS DH04B DIRTHOOKS
94112-094W3-00
Unavailable
7
COLLAR, WHEEL (1YW-25383-01)
2VA-25383-00-00
Unavailable
8
WHEEL,REAR
2HT-25390-00-4R
Unavailable
9
AT25X12-9* BS DH04B DIRTHOOKS
94112-094W3-00
Unavailable
13
AXLE, WHEEL
1YW-25381-00-00
Unavailable
14
BEARING (24W)
93399-99913-00
Unavailable
15
COVER, HUB DUST
24W-25367-00-00
Unavailable
16
BEARING
93306-00809-00
Unavailable
17
OIL SEAL(1YW)
93102-46377-00
Unavailable
18
COLLAR, AXLE
24W-25386-00-00
Unavailable
19
COVER, HUB DUST
1YW-25367-00-00
Unavailable
20
NUT, SPECL SHAPE
90179-40419-00
Unavailable
21
O-RING
93210-40740-00
Unavailable
22
BOLT(6TD)
97017-10025-00
Unavailable
23
WASHER, PLATE
92990-10600-00
Unavailable
24
NUT, CASTLE (29U)
90171-14037-00
Unavailable
25
WASHER, PLATE
90201-144K1-00
Unavailable
26
PIN, COTTER
91490-30030-00
Unavailable
27
CAP, WHEEL
52H-2512A-00-00
Unavailable
