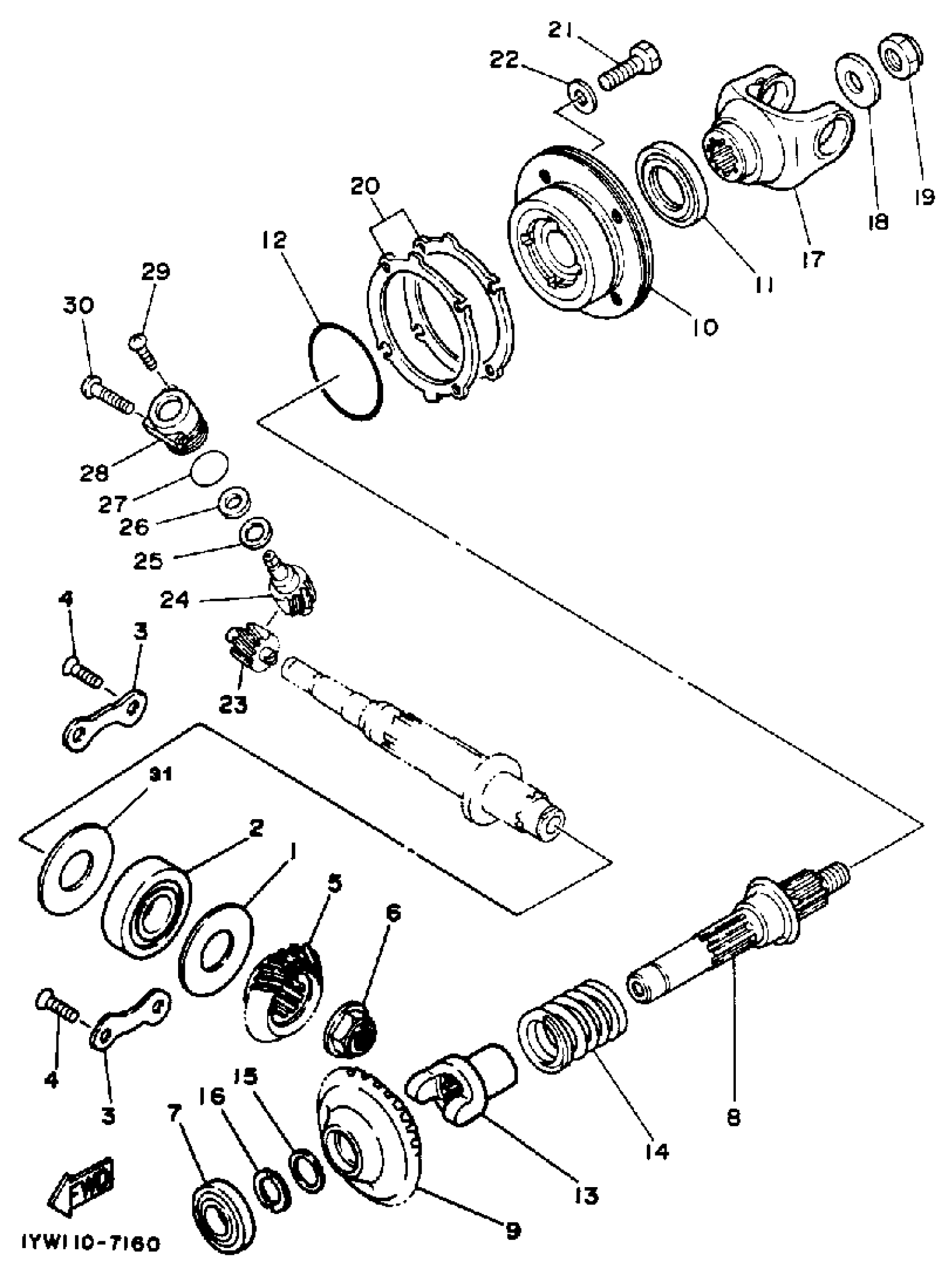

Yamaha YFM350ERT (MOTO-4) 1987 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

SHIM, THRUST (0.30T)

1J7-17537-Y0-30

$4.47

1

SHIM, THRUST (0.40T)

1J7-17537-Y0-40

$4.47

1

SHIM, THRUST (0.50T)

1J7-17537-Y0-50

$4.47

2

BEARING(1YW)

93306-20636-00

$75.99

3

PLATE, BEARING COVER

11H-15383-02-00

$14.49

4

SCREW

90149-08013-00

$8.49

5

PINION, DRIVE

1YW-17522-00-00

Unavailable

6

NUT

90179-22015-00

$29.99

7

BEARING(1YW)

93306-20461-00

$39.99

8

SHAFT, MIDDLE DRIVEN

1YW-17553-00-00

Unavailable

9

PINION, DRIVEN

1YW-17552-00-00

Unavailable

10

HOUSHING COMP.

59V-W1752-02-00

Unavailable

11

OIL SEAL (4H7)

93101-35097-00

$22.99

12

O-RING

93210-626A7-00

$14.99

13

CAM,DRIVEN

1YW-17527-10-00

Unavailable

14

SPRING, COMPRESSION(1YW)

90501-602E2-00

Unavailable

15

WASHER, PLATE

90201-206K8-00

Unavailable

16

WASHER, THRUST

3H5-17529-00-00

Unavailable

17

YOKE, JOINT

1YW-17556-01-00

Unavailable

18

WASHER, PLATE (1J7)

90201-14633-00

Unavailable

19

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

20

SHIM, PINION (0.1T)

59V-17531-00-00

Unavailable

20

SHIM, PINION (0.2T)

59V-17531-20-00

Unavailable

20

SHIM, PINION (0.3T)

59V-17531-30-00

Unavailable

20

SHIM, PINION (0.4T)

59V-17531-40-00

Unavailable

21

BOLT (682)

97013-08025-00

Unavailable

22

.. WASHER, PLATE

92990-08600-00

Unavailable

23

GEAR, DRIVE

59V-17831-00-00

Unavailable

24

GEAR, DRIVEN

59V-17841-00-00

Unavailable

25

WASHER (692)

90201-12M34-00

Unavailable

26

OIL SEAL (30X)

93102-08307-00

Unavailable

27

O-RING(59V)

93210-24253-00

Unavailable

28

HOUSING, TACHOMETER GEAR

59V-17811-00-00

Unavailable

29

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

30

SCREW, PAN

98517-06030-00

Unavailable

31

WASHER

90209-50299-00

Unavailable
