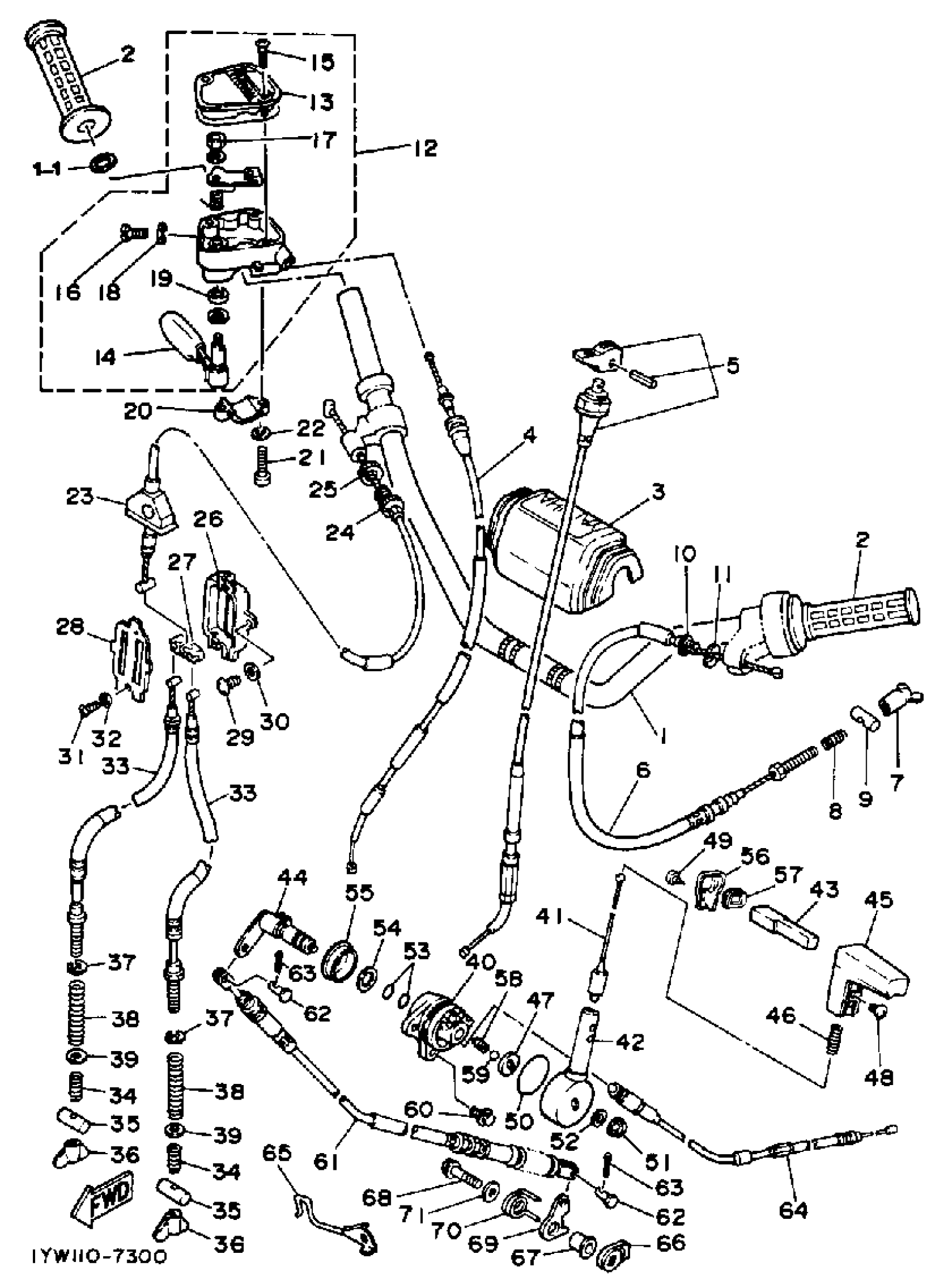

Yamaha YFM350ERT (MOTO-4) 1987 HANDLEBAR-CABLE Diagram
#
1
HANDLEBAR
59V-26111-01-00
Unavailable
3
PROTECTOR, HANDLEBAR
1YW-26124-01-00
Unavailable
4
CABLE, THROTTLE 1
1YW-26311-00-00
Unavailable
5
. CABLE, STARTER 1
1YW-26331-01-00
Unavailable
5
Nut
8G8-26333-00-00
Unavailable
5
CBLE STRTR SET-1YW (1YW-26331-00)
99999-01822-00
Unavailable
12
THROTTLE LEVER ASSY
1NV-26250-01-00
Unavailable
13
. CAP, GEAR
1NV-2628F-00-00
Unavailable
14
. LEVER, THROTTLE
1NV-2625G-00-00
Unavailable
15
SCREW, PAN
98517-05012-00
Unavailable
16
SCREW, PAN HEAD
98517-05020-00
Unavailable
17
NUT, U
95617-05100-00
Unavailable
18
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
19
OIL SEAL (9X15X4-256)
93104-09025-00
Unavailable
20
HOLDER, LEVER LOWER
4V4-82913-00-00
Unavailable
21
SCREW, PAN HEAD
98517-05020-00
Unavailable
22
WASHER(3SX)
92907-05100-00
Unavailable
23
CABLE, BRAKE 4
1YW-26373-02-00
Unavailable
26
HOUSING, BRAKE LINK
52H-26371-00-00
Unavailable
27
JOINT, CABLE
52H-26347-01-00
Unavailable
28
PLATE
52H-2631G-00-00
Unavailable
29
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
30
WASHER, PLAIN (646)
92990-05600-00
Unavailable
31
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
32
WASHER(3SX)
92907-03600-00
Unavailable
33
CABLE, BRAKE
2HT-26361-00-00
Unavailable
36
NUT, WING (1K5)
90175-06013-00
Unavailable
37
CIRCLIP(53L)
99001-06600-00
Unavailable
38
SPRING, COMPRESSION(52H)
90501-123A0-00
Unavailable
39
WASHER(52H)
90209-06265-00
Unavailable
40
REVERSE LEVER ASSEMBLY (1YW-26152-00)
1YW-W2615-00-00
Unavailable
41
STOPPER, LEVER
1YW-26154-00-00
Unavailable
42
REVERSE LEVER ASSEMBLY (1YW-26152-00)
1YW-W2615-00-00
Unavailable
43
LEVER, LOCK
1YW-26157-00-00
Unavailable
44
SHAFT, REVERSE LEVR
1YW-26155-00-00
Unavailable
45
GRIP, LEVER
1YW-26153-00-00
Unavailable
46
SPRING, COMPRESSION
90501-127H4-00
Unavailable
47
PLATE, SIDE 1
1UY-26158-00-00
Unavailable
48
SCREW,PAN HEAD W/WASHER
99999-04427-00
Unavailable
49
SCREW, PAN TAP.2 SLIT
97707-40612-00
Unavailable
50
O-RING (17W)
93210-40407-00
Unavailable
51
NUT, U FLANGE
95604-06200-00
Unavailable
52
WASHER, PLATE
90201-06020-00
Unavailable
53
O-RING (611)
93210-10096-00
Unavailable
54
WASHER PLATE 626441260000
90202-14037-00
Unavailable
55
CAP, RUBBER
2NL-26329-00-00
Unavailable
56
CAP, GRIP
1YW-2628J-00-00
Unavailable
57
SEAL
1YW-2639G-00-00
Unavailable
58
SPRING COMPRESSION826181830000
90501-10060-00
Unavailable
59
BALL
93501-04011-00
Unavailable
60
BOLT, FLANGE
95817-06016-00
Unavailable
61
WIRE, CONTROL 1 (1YW-2637E-00)
1YW-2637E-02-00
Unavailable
62
PIN
91701-06016-00
Unavailable
63
PIN, COTTER
91490-20025-00
Unavailable
64
WIRE, CONTROL 2
1YW-2637F-00-00
Unavailable
65
GUIDE
3HN-2631F-00-00
Unavailable
66
LEVER
4SH-18198-00-00
Unavailable
67
COLLAR
90387-061F8-00
Unavailable
68
BOLT, FLANGE
95817-06035-00
Unavailable
69
LEVER
1YW-18191-00-00
Unavailable
70
SPRING, TORSION(1YW)
90508-35764-00
Unavailable
71
WASHER, PLATE
90201-06M02-00
Unavailable
