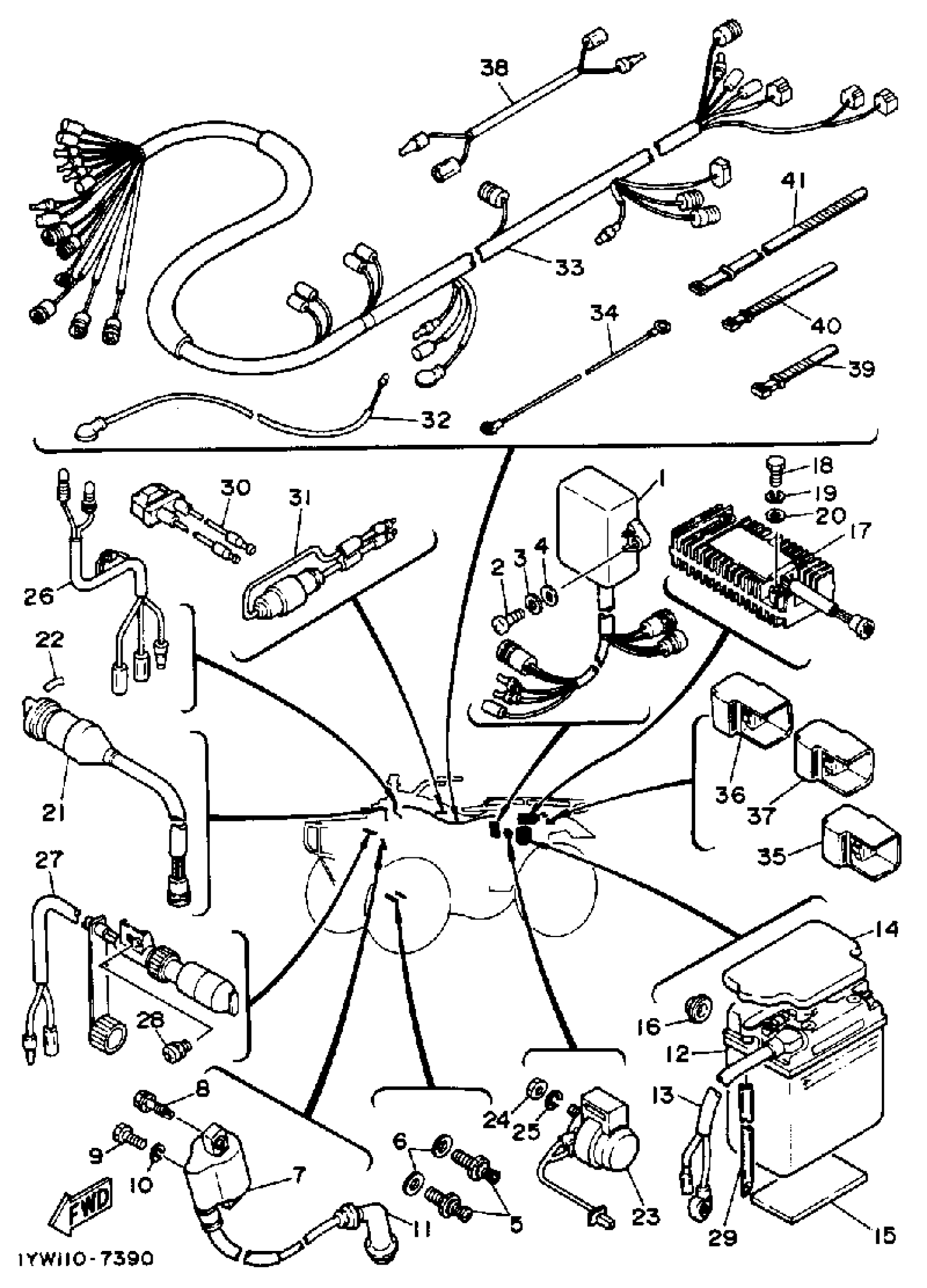

Yamaha YFM350ERT (MOTO-4) 1987 ELECTRICAL 1 Diagram

CDI UNIT ASSEMBLY

1YW-85540-20-00

Unavailable

SCREW PAN HEAD

98580-06020-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

GASKET (5R6)

90430-10171-00

$3.18

IGNITION COIL ASSY

1UY-82310-41-00

$186.99

BOLT (21V)

90109-06723-00

$8.49

BOLT(3DM)

97024-06020-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

PLUG CAP ASSY

3NS-82370-00-00

$37.99

CB14-A2 GS BATTERY

CB1-4A200-00-00

Unavailable

WIRE, PLUS LEAD

1YW-82115-00-00

$61.99

COVER, BATTERY

24W-82129-00-00

Unavailable

SEAT, BATTERY

5Y1-82122-00-00

$7.99

PAD, BATTERY

371-82121-00-00

Unavailable

RECTIFIER/REG ASSEMBLY

1YW-81960-A0-00

Unavailable

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

MAIN SWITCH ASSY

1UY-82510-09-00

Unavailable

LABEL

29U-83585-10-00

Unavailable

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

Unavailable

NUT(650)

95380-06700-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

PILOT LIGHT ASSEMBLY

59V-83530-00-00

Unavailable

TERMINAL ASSY

59V-81920-00-00

Unavailable

SCREW, WITH WASHER (1T4/2F3)

90159-05018-00

Unavailable

PIPE, BREATHER

3L5-82112-00-00

Unavailable

CIRCUIT BRKR.ASSEMBLY

1YW-82180-00-00

Unavailable

FUSE HOLDER ASSY

2NL-82150-00-00

Unavailable

WIRE, LEAD

2JX-82541-00-00

Unavailable

WIRE HARNESS ASSEMBLY

1YW-82590-00-00

Unavailable

WIRE, LEAD

1YW-82507-00-00

Unavailable

RELAY ASSY (1UY-92)

1UY-81950-92-00

Unavailable

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

WIRE, LEAD

59V-82541-00-00

Unavailable

BAND, SWITCH CORD

437-83936-01-00

Unavailable

BAND, SWITCH CORD

437-83936-11-00

Unavailable

BAND

(12R-26397-00-00)

Unavailable
