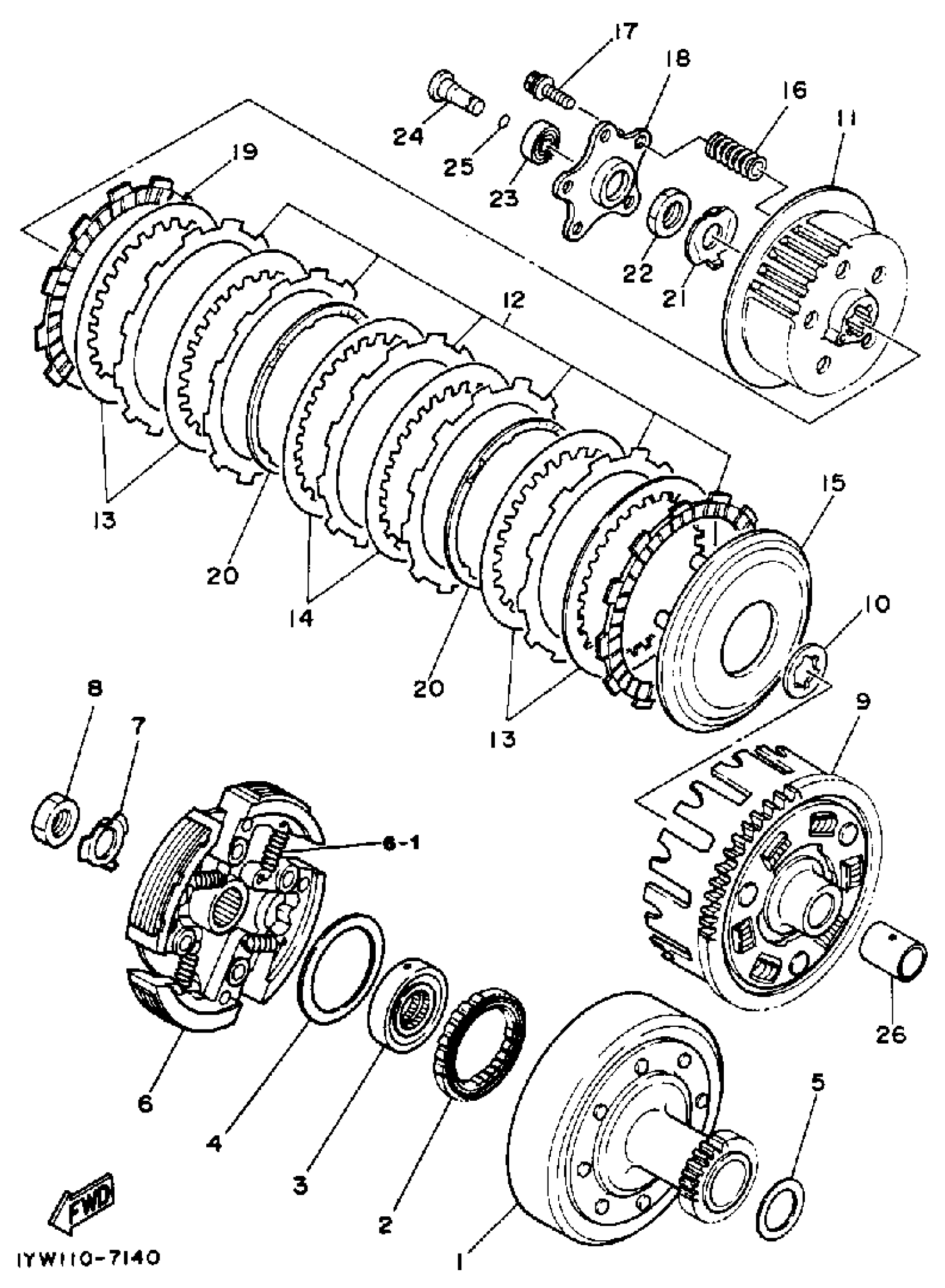

Yamaha YFM350ERT (MOTO-4) 1987 CLUTCH Diagram

#

Description
Price

1

SPRING, CLUTCH WEIGHT 1

1YW-16626-00-00

$5.75

1

CLUTCH HOUSING COMP.

2HR-16611-04-00

Unavailable

2

BEARING, ONE WAY

1YW-16664-00-00

Unavailable

3

RETAINER, BEARING

1YW-16665-09-00

Unavailable

4

WASHER, PLATE(1YW)

90201-574L1-00

$8.74

5

WASHER, PLATE(1YW)

90201-286K9-00

$5.30

6

CLUTCH CARRIER ASSY

3HN-16620-12-00

Unavailable

7

WASHER, LOCK(1YW)

90215-22259-00

$12.84

8

NUT(1NU)

90170-22371-00

Unavailable

9

PRIMARY DRIVEN GEAR COMP.

2NL-16150-00-00

$301.08

10

PLATE, THRUST 1

30X-16154-00-00

$22.52

11

BOSS, CLUTCH

1UY-16371-02-00

$121.44

12

PLATE, FRICTION

5Y1-16331-01-00

$24.19

13

PLATE, CLUTCH 2

168-16325-10-00

$12.44

14

PLATE, CLUTCH 1

3J2-16324-10-00

$9.79

15

PLATE, PRESSURE 1

1UY-16351-00-00

Unavailable

16

SPRING, COMPRESSION(1UY)

90501-231E9-00

Unavailable

17

SCREW, WITH WASHER(1AE)

90159-06123-00

Unavailable

18

PLATE, PRESSURE 2

1UY-16352-00-00

Unavailable

19

PLATE, FRICTION

4H7-16321-02-00

Unavailable

20

SPRING, CLUTCH BOSS

5Y1-16383-00-00

Unavailable

21

WASHER, LOCK(1UY)

90215-16258-00

Unavailable

22

UNAVAILABLE IN PRICE BOOK

90179-16326-00

Unavailable

23

BRG,R-B 6000 26MM 19G KY

93306-00004-00

Unavailable

24

PLATE, PUSH

1YW-16358-00-00

Unavailable

25

O-RING (26H)

93210-06632-00

Unavailable

26

SPACER 1

1YW-16181-00-00

Unavailable
