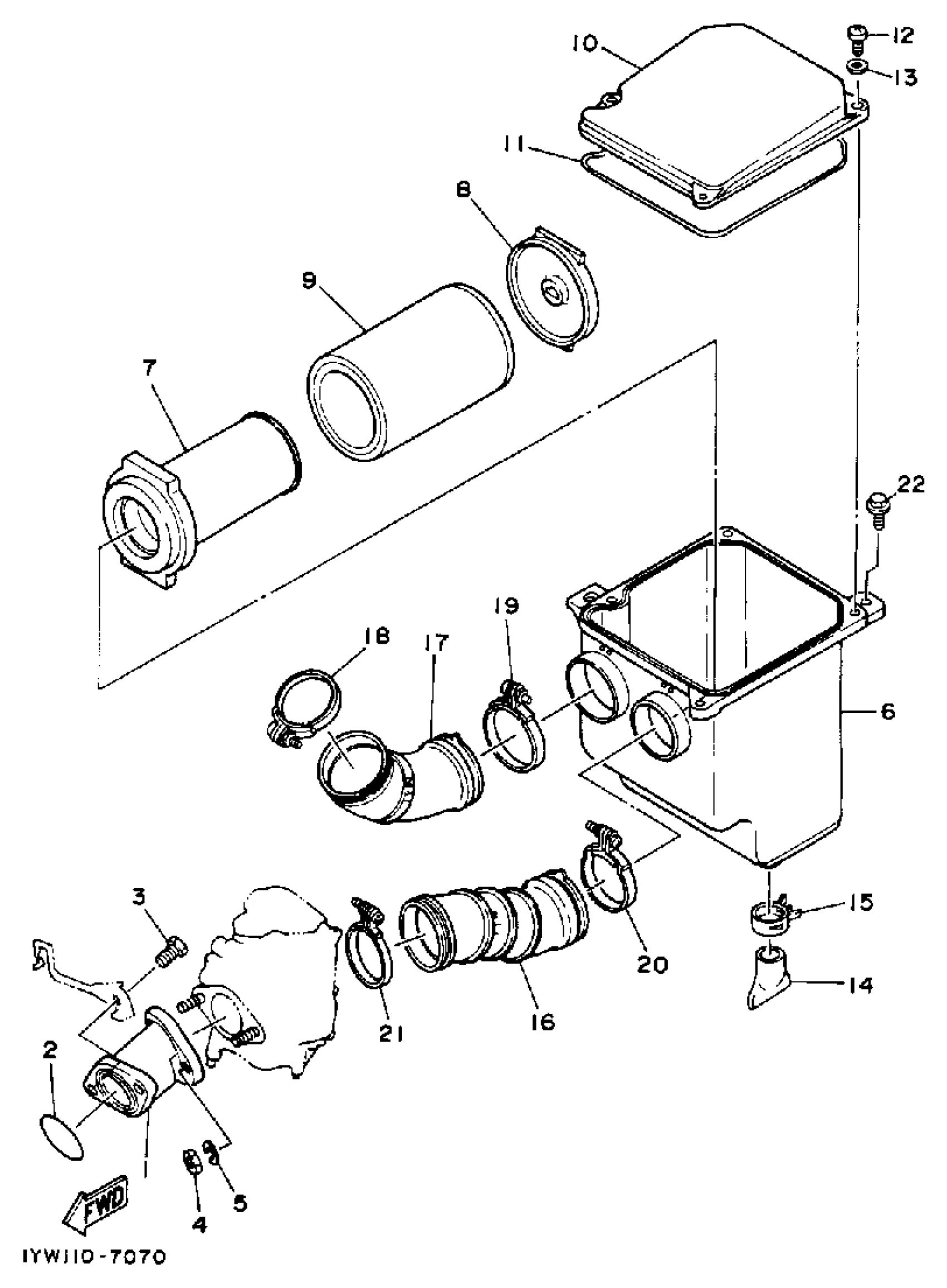

Yamaha YFM350ERT (MOTO-4) 1987 AIR FILTER Diagram

#

Description
Price

1

JOINT, CARBURETOR

3HN-13586-02-00

$132.99

2

O-RING (10L)

93210-44545-00

$13.49

3

BOLT, SOCKET

91317-08025-00

$8.49

4

NUT(6L2)

95333-08600-00

$2.49

5

WASHER PLATE 141181390000

90201-08085-00

$9.49

6

CASE, AIR CLEANER

1YW-14411-01-00

Unavailable

7

GUIDE

1YW-14458-01-00

$79.99

8

PLATE, ELEMENT FITTING

1UY-14468-00-00

$20.99

9

ELEMENT,AIR CLNR

1YW-14451-01-00

$18.49

10

CAP, CLEANER CASE 1

21V-14412-01-00

$18.49

11

SEAL

1VJ-14462-00-00

$18.49

12

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

13

WASHER, PLAIN (646)

92990-05600-00

$0.80

14

SEAL

59V-14457-00-00

$6.99

15

CLIP (21V)

90467-22080-00

$8.49

16

JOINT, AIR CLEANER 1

1YW-14453-00-00

Unavailable

17

DUCT

1YW-14437-00-00

Unavailable

18

HOSE CLAMP ASSY

90450-56001-00

Unavailable

19

HOSE CLAMP ASSY

90450-58002-00

Unavailable

20

HOSE CLAMP ASSY

90450-56001-00

Unavailable

21

HOSE CLAMP ASSY

90450-56001-00

Unavailable

22

BOLT, WITH WASHER (30X)

90119-06096-00

Unavailable
