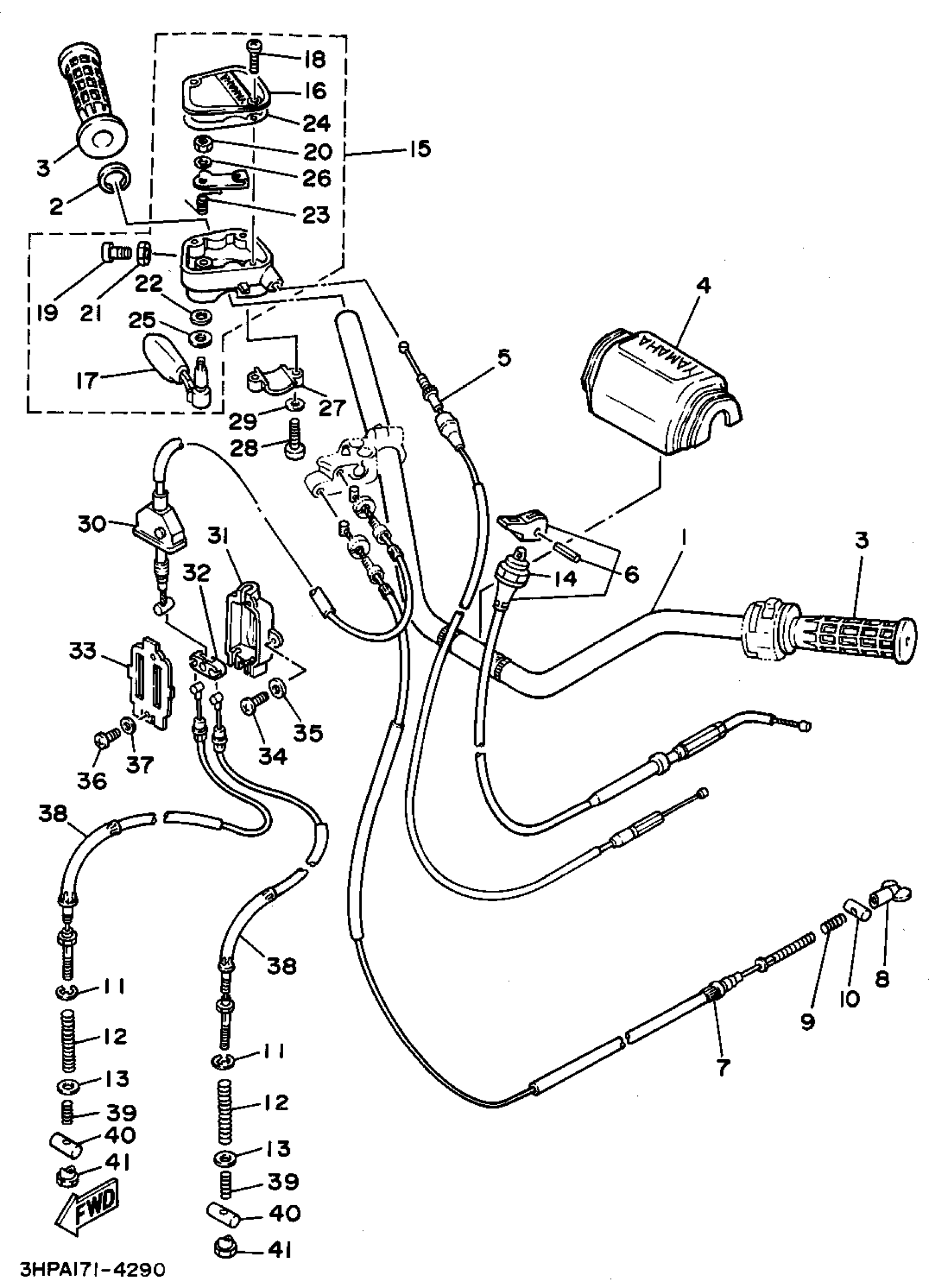

Yamaha YFM350ERG (MOTO-4) 1995 STEERING HANDLE - CABLE Diagram
#
1
HANDLEBAR
59V-26111-01-00
Unavailable
4
PROTECTOR, HANDLEBAR
1YW-26124-01-00
Unavailable
5
CABLE, THROTTLE 1
3HP-26311-10-00
Unavailable
6
. CABLE, STARTER 1
1YW-26331-01-00
Unavailable
13
WASHER(52H)
90209-06265-00
Unavailable
14
Nut
8G8-26333-00-00
Unavailable
15
THROTTLE LEVER ASSY
1NV-26250-01-00
Unavailable
16
. CAP, GEAR
1NV-2628F-00-00
Unavailable
17
LEVER, THROTTLE
1NV-2625G-02-00
Unavailable
18
SCREW, PAN
98517-05012-00
Unavailable
19
SCREW, PAN HEAD
98517-05020-00
Unavailable
20
NUT, U
95617-05100-00
Unavailable
21
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
22
OIL SEAL (9X15X4-256)
93104-09025-00
Unavailable
23
SPRING
1NV-26304-00-00
Unavailable
24
. GASKET
1NV-2628G-00-00
Unavailable
25
WASHER
1NV-26129-00-00
Unavailable
26
. WASHER, SPECIAL
53L-83909-00-00
Unavailable
27
HOLDER, LEVER LOWER
4V4-82913-00-00
Unavailable
28
SCREW, PAN HEAD
98517-05020-00
Unavailable
29
WASHER(3SX)
92907-05100-00
Unavailable
30
CABLE, BRAKE 4
1YW-26373-02-00
Unavailable
31
HOUSING, BRAKE LINK
52H-26371-00-00
Unavailable
32
JOINT, CABLE
52H-26347-01-00
Unavailable
33
PLATE
52H-2631G-00-00
Unavailable
34
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
35
WASHER(1RW)
92907-05600-00
Unavailable
36
SCREW, PAN HEAD(3AC)
98517-03008-00
Unavailable
37
WASHER(3SX)
92907-03600-00
Unavailable
38
CABLE, BRAKE
3GH-26361-01-00
Unavailable
41
NUT (25K)
90179-06411-00
Unavailable
